iMac Intel 21,5" EMC 2638 Festplatte austauschen

Geschrieben von: Sam Goldheart
  • Kommentare: 127
iMac Intel 21,5" EMC 2638 Festplatte austauschen

Schwierigkeitsgrad

Mittel

Schritte

29

Zeitaufwand

1 - 2 Stunden

Einleitung

Hier wird gezeigt, wie du die Festplatte austauschen oder aufrüsten kannst.

  1. SrDNTSYqyhGMRNDC

    • Mit einem frei beweglichen Gelenk kann der iMac unkontrolliert pendeln, das macht es schwer an ihm zu arbeiten. Es geht leichter mit einem iMac Service Keil, es kann aber auch ohne ihn durchgeführt werden.

    • Wenn du die iFixit-Reparaturhilfe aus Karton verwendest, dann baue sie zuerst mit Hilfe dieser Anleitung zusammen.

    • Bevor du beginnst an deinem iMac zu arbeiten: Ziehe den Netzstecker, drücke und halte den Ausschaltknopf für mindestens zehn Sekunden. Dadurch werden die Kondensatoren im Netzteil entladen.

    • Sei sehr vorsichtig und berühre nicht die Leitungen oder Lötstellen an den Kondensatoren auf der Rückseite der Platine des Netzteils. Fasse diese nur an den Kanten an.

    The wedge is an extremely tight fit for this model. I was worried that the amount of force needed to use it as shown might damage the stand, so I used it with the long side down instead. It worked fine that way and didn’t need anywhere near as much force to insert.

    roberttrevellyan -

    Here’s a good YouTube vid on upgrading the RAM: Can a Normal Person Upgrade the RAM in the 2017 21.5" iMac?

    Dan -

    Here are a couple tips from me:

    1) Expose the adhesive to extreme temperatures. I did this by transporting my iMac in my car, screen-down on a piece of cardboard on a cold February morning (in Chicago). When I went to pick up the iMac, the screen practically fell off the chassis. I would have been distraught by this if I hadn’t already planned this replacement. So it was a happy accident.

    2) Remember to expell the residual power from the power supply by pushing the power button while the iMac is unplugged. This does NOT guarantee it’s safe to touch, but when I accidentally brushed the solder and exposed capacitors, I didn’t get shocked.

    jerrid_foiles -

    Instead of using the wedge, I placed the iMac faced up with the top side (web cam) facing me while I ran the pizza roller around. It worked out great!

    Sam Fung -

    “All iMacs also come with a traditional hard drive” mine doesn’t!! it’s HDD bay is completely empty, no SATA cable or anything. I guess I’ll have to upgrade the PCIe SSD instead.

    Chris Hughes -

    There is no replacement glass for this model, it is part of the LCD and impossible to remove or replace- the entire LCD has to be replaced unfortunately if the glass is cracked or damaged. You will have to Google search for a replacement. Also be careful with some of the lock tight tork screws as I broke one of my screw mounts taking one out.

    Phil Tesone -

    I used this service wedge but also found it a very tight fit. The same stabilization can be achieved by using a big rolled up towel.

    Ernst -

    While this is a good instruction guide, I recommend to also look at OWC’s instruction video about drive installation, before starting the exercise. Those install videos are very detailed and useful.

    Ernst -

    Main advice: TAKE YOUR TIME with the pizza roller.

    Make several passes, until you really feel like there's no more sticker in the way. Stay away from the camera though (approx. 1inch / 2.5cm on both sides). This will reduce the work left with the plastic card. Adhesive is really on the edge of the screen so there is absolutely no need to go any further than the recommended 1cm / 3/8inch depth.

    Where are the sensitive parts?

    Facing your iMac, imagine you're looking at a watch. There are antennas on 1, 2 and 4 o'clock. Do not insert any metal piece there (nor anywhere else, btw). Other than that AND the screen cables underneath the camera, not much danger.

    Froggy Manny -

  2. QPZ14vf5mNSObPx1
    QPZ14vf5mNSObPx1
    1KAQXZNy65Y1ferW

    • Setze das iMac Opening Tool an der linken Seite des Displays, in der Nähe des An/Aus Schalters beginnend, in die Spalte zwischen Glaspanel und Rückgehäuse ein.

    • Die Achse am iMac Opening Tool verhindert, dass du es zu tief einschieben kannst. Wenn du ein anderes Werkzeug verwendest, musst du aufpassen, dass du es nicht tiefer als 9 mm in das Display einschiebst.Sonst riskierst du ein Durchschneiden der Antennenkabel, was zu ernsthaften Schaden führen kann.

    Don’t get too worried about starting exactly where the picture says. The glue is stronger in some parts so just start wherever is easier and then work slowly and patiently around in the direction shown.

    Richard Cook -

    As this guide doesn’t cover replacing the adhesive strips, I found referring to the following was useful (noting that it’s not for the same model of iMac, so the modification they mention wasn’t necessary): IMac Intel 21.5 "EMC 2544 Klebestreifen ersetzen

    Alan Digby -

    It is very easy to crack the glass in front of the LCD during this step. I used the guitar pick, maybe it was too thick… crack is just on the frame but anyway it is disappointing :(

    Nikolay -

    This part of the exercise should be done with extreme patience. I took my sweet time with the opening tool, rolling it through the entire panel and enclosure gap over and over again, until I was very sure no parts were sticking together anymore. And when I thought I was I done, I decided to do it over again.

    Ernst -

    You can "warm up" the adhesive before try to cut it with the tool using a hair dryer. Heat the edges for about a minute, keep moving it so you don't cause stress in the glass. Also the above note.. use the tool and then the cards. Do not use a guitar pick or other objects as the thickness will cause you to break the front glass, which is a bonded part of the display (expensive).

    Carl Schultz -

  3. SdaoaCo1EmiD4NqV
    SdaoaCo1EmiD4NqV
    eOsvYmvle2iDrZvZ
    LS2Bi6uDXDmSSIOJ

    • Benutze es wie einen Pizzaschneider - Rolle es entlang des Spalts und trenne dabei den Klebeschaum in der Mitte.

    • Achte darauf, dass du es immer mit dem Handgriff hinter dem Schneidrad führst. Wenn du ziehst, kann sich das Rad aus dem Griff lösen.

    • Lasse das Werkzeug die linke Seite des Displays entlang laufen.

    Erreur de traduction: "de bas en haut" et non de" haut en bas" sur le côté gauche de l'écran

    Moreau -

    If re-opening a screen that was opened and re-attached using iFixit’s adhesive strips, I would strongly recommend heating it first with an iOpener, heat gun or hair dryer. 20 minutes after attaching with the iFixit adhesive I tried to open it again with the pizza slicer to fix something and cracked the screen on the left-hand side.

    plasticpool -

  4. r1eMkSSjJdpmWr1B
    r1eMkSSjJdpmWr1B
    d6iAMVdqVUdnvYnD
    PsnDnjYNWucTLycx

    • Fahre fort und lasse das Werkzeug um die obere linke Ecke laufen.

    Ne pincez pas l’écran avec l’autre main. Vous exercez une pression inutile sur le verre et empêchez la roulette de couper le joint.

    phfoglia -

  5. sZNVaGR3f2vruyLS
    sZNVaGR3f2vruyLS
    HDO3QbYuc4krqwHX

    • Schneide die Klebeverbindung entlang der oberen linken Seite des Displays auf.

  6. vSKcLcMFSZoPp6Gp
    vSKcLcMFSZoPp6Gp
    uiuQPD3lViaQODlB

    • Fahre an der Oberseite des Displays fort.

    • Du kannst das Werkzeug mehrmals hin und her schieben. So trennst du so viel wie möglich von der Klebeverbindung auf.

    In this step can I cut along the display without make any damage to the front camera?

    arisnordico -

    Hi! Actually - there is no need to cut the tape around the camera area - there is no tape to cut at all! And so, the way go is easy - just pass 10 mm to the left and to the right from camera and start cutting!

    P.S. Just did the whole procedure to replace a RAM and to add SSD on PSIe an hour ago! Seems to be different reading the instructions... you know - 2/10 and so on. But it's really not that hard, trust me. I'll give it 5/10.

    P.P.S. By the way there is one trick to pass the difficult steps. Any action which requires pulling smth (motherboard, speaker, power supply unit) from the narrow crack (or should i say - slit?) at the bottom of your Imac is really not so easy.

    And the trick is to first remove a thin metal stripe with some kind of insulation on it which held by 5 small (very small!!) screws at the bottom of your Imac. After you done it - it's easy to pull everything! Pay attention to the fact that one of this 5 screws at the center are more shortly than others.

    dv1977 -

    I did all steps like this manuell but now the Display wont work only some colered strips are to see! Whats happend??

    Can anybody help me ? Maybe the connector cable is broken?

    djfanta -

    Check both connectors, probably one of them not seated well

    pzhivulin -

    You can add a SATA SSD if you already have a PCIe SSD Factory?

    kaserlik -

    If you're changing cracked EMC 2638 display to new assembly, there's two more steps:

    Step 24: Use the tip of a spudger to flip up the metal retaining bracket on the display data cable.

    Carefully pull the display data cable from its socket on the display assembly.

    Step 25: Use the tip of a spudger to unplug bracket of the thermal sensor small cable near display data cable.

    Carefully remove scotch tape covering thermal sensor. Using iSesamo or flat tip of the spudger carefully peel the thermal sensor away.

    pzhivulin -

    omg - forgot to switch the termal sensor from the old display...

    now fan runs like crazy...

    Andrei Balotescu -

    The key thing is to never put any force on the opening tool when working through the tape. Just roll it back and forth with ease.

    Ernst -

  7. eDPbRqQfKjS4oUnZ
    eDPbRqQfKjS4oUnZ
    qm5g46NqRXJjxaVm
    krs4wdofACqDD6Ju

    • Schiebe das Werkzeug um die obere rechte Ecke des Displays.

  8. 3c3b2XusJDWQekW6
    3c3b2XusJDWQekW6
    NGOHPeVZ52OQCRWQ

    • Rolle das Werkzeug die rechte Seite des Displays nach unten.

  9. SAgRGwk3lGGO3ZCH
    SAgRGwk3lGGO3ZCH
    1DLPSpBELT2mxJok

    • Beende das Schneiden mit dem iMac Opening Tool unten auf der rechten Seite des Displays.

    • An dieser Stelle solltest du noch einmal das Werkzeug um das ganze Display laufen lassen, um wirklich soviel von der Klebeverbindung wie möglich aufzutrennen.

    Yes, do it many times to loosen the adhesive.

    Noah Ralston -

    Would be good data to show the 3 areas (wifi antennas where the "tape" is larger and covers them. The rest of the "tape" is 1.4" and easy. Also after removing the display, be sure to remove the old "tape" from both the display and the rubber parts of the case. Use the spudger to start an end and it should pull off easily. Careful on the baackside of the display as you can scratch off the black paint/covering.

    Carl Schultz -

  10. HVK2HNgts1D53wOs
    HVK2HNgts1D53wOs
    QrZMXcap4the5yXk
    hZXQgXJhIoKTxBwH

    • Das Werkzeug hat den größten Teil der Klebeverbindung aufgeschnitten., aber das Display ist immer noch ein wenig mit dem Gehäuse verklebt. Den letzten Rest musst du mit einer Plastikkarte lösen.

    • Lege den iMac mit der Scheibe nach oben auf den Tisch.

    • Beginne in der oberen rechten Ecke und zwänge eine Plastikkarte zwischen Display und Rahmen.

    • Achte darauf, die Karte nicht tiefer als 9 mm einzuschieben. Du könntest sonst Bauteile im Inneren beschädigen.

    this step is extremely important NOT to stick in the cards too far….. doing so, you risk a 600 euro replacement as I experienced………

    Edgar Broekema -

    I drew a 3/8” line on my cards with a marker first.

    Max Romano -

    I’m reading this on the EU store, please change all measurements to cm/mm.

    Morgana Devina -

    @ifixit The next batch of cards you create should have a line printed on the card 3/8” in from the edges. Would make a nice reference.

    Richard Giratd -

    Here’s where OWC provides glass removal suction cups, which is a better solution than plastic cards.

    The suction cups help to easily lift the glass panel, without risking the damaging of any internal wiring that the plastic cards could cause.

    Ernst -

    Better to remove stand wedge at this point? Can’t see from pics

    derekrobinson -

  11. wUjiMGtv2IpkNB5p
    wUjiMGtv2IpkNB5p
    LncJQeQQOAvg3CMA

    • Verdrehe die Plastikkarte seitlich und vergrößere so den Spalt zwischen Display und Rahmen.

    • Bewege die Karte vorsichtig und langsam, damit das Displayglas nicht zu stark belastet wird - du brauchst nur einen Spalt von etwa 6 mm Breite zu öffnen.

    This part must be done very carefully or you can damage the flat cable from display, despite it was under a iron cover.

    Cassio Machado -

  12. qmVJHqIxctiuCbE5
    qmVJHqIxctiuCbE5
    6PF3COgq44osRMSX
    1nZLqZWsCa1xRTOR

    • Schiebe die Karte zur Mitte des Displays hin und schneide so allen Kleber an der rechten oberen Ecke des iMac auf.

    • Halte unbedingt vor der iSight Kamera an, damit sie nicht beschädigt wird.

    You don't need to do it like this, simply open the iMac bendidng the LCD completely and use the pizza cutter to remove the adhesive.

    Felix -

    Using glass removal suction cups will avoid running this risk of damaging the camera (or any wiring).

    Ernst -

  13. pwG3JFqqfxxQXLID
    pwG3JFqqfxxQXLID
    wKv4nNrdklsj61AD

    • Zwänge die Plastikkarte erneut in die obere rechte Ecke ein und lasse sie dort stecken. Damit verhinderst du, dass sich die Teile wieder verkleben.

  14. B1l4C4H1WK3CwfsH
    B1l4C4H1WK3CwfsH
    5gnKwfWW1K2gnkAY
    dU3V1S5PiPpZoiRX

    • Setze eine zweite Plastikkarte an der oberen linken Ecke des iMac in den Spalt zwischen Rahmen und Display ein.

  15. 1eeYyLOXUgoVdMcU
    1eeYyLOXUgoVdMcU
    XNwnBG1I3otkGVaj

    • Verdrehe die Karte nach oben, vergrößerte so den Spalt zwischen Rahmen und Display ein wenig.

    • Drehe, genau wie an der anderen Seite, langsam und lasse dem Klebstoff Zeit beim Auftrennen. Achte drauf, das Displayglas nicht zu stark zu belasten.

  16. 1AtMSKY35dfSoyov
    1AtMSKY35dfSoyov
    eYI56QJhkhMLdtyx
    oVDneBvJQXNCvQpC

    • Fahre mit der Karte zur Mitte hin, halte auch hier wieder vor der iSight Kamera an

  17. KlhOFUANthUfPZrW
    KlhOFUANthUfPZrW
    KGDDBwLWXguRGlso

    • Zwänge die Karte wieder bei der linken oberen Ecke ein.

  18. xXVPepFcNBfFlYLm
    xXVPepFcNBfFlYLm
    mJWDXXcMCnL6OwqX
    lGcKi3n1DVFdANJw

    • Verdrehe nun beide Karten seitlich, wie im Bild zu sehen an den Ecken eingesetzt, und vergrößere den Spalt zwischen Gehäuse und Display.

    • Wenn manche Stellen noch verklebt erscheinen und sich nicht trennen lassen, dann musst du aufhören zu verdrehen und mit einer der Karten die Klebestelle auftrennen.

    • Fange an, die Oberkante des Displays vom Rahmen weg zu heben.

    • Hebe es nur ein paar Zentimeter an - die Datenkabel und Versorgungskabel des Displays sind immer noch am Logic Board angeschlossen.

  19. coWtr2k1cFvjti6u
    coWtr2k1cFvjti6u
    bRPraRvEkFJQYPsa

    • Während du das Display mit einer Hand nach oben hältst, trenne mit der anderen Hand das Stromkabel des Displays.

    • Hebe das Display nur so weit an, dass du genug Platz hast, um an den Anschluss zu kommen, jedoch nicht so weit, dass du die Kabel dehnst und ihre Anschluss überbeanspruchst (~20cm).

    Pulling the display power cable by the wires makes me nervous..

    bstaud -

    I had a small flight light ready so I could see. Follow the directions - don’t blindly pull.

    Noah Ralston -

    Head lamp gives you the best hands free view!

    Macrepair SF -

    bstaud - The display power cable has two squeezable levers on each end of the cable’s width.

    Squeeze the left lever with your thumb while you simultaneously squeeze the right lever with your

    index finger, and gently pull the cable straight back and out, and the cable comes out very easily.

    Ted Horodynsky -

    When reassembling, make sure you get a “click” confirmation that both the levers have locked AND the pins have seated on this connector. I was treated to a black screen upon startup, and had to re-cut my newly installed adhesive strips to get back in to firm up this connection. Better would be power up with the bottom adhesive in place, screen resting in place and held on top with blue painter tape to confirm connections, THEN pull off screen-side adhesive tape covers for final re-bonding.

    Robert McKillip -

    Can someone post a link to actually purchase these cables?

    Jay Hernandez -

    E-bay had one for me

    Roger -

  20. LhWm4T3JEHaeoZ2T
    LhWm4T3JEHaeoZ2T
    ECPoWhXZOD5MLhud
    IygsgjxXB6iFOWJW

    • Klappe die Metalllasche am Anschluss des Display-Datenkabels mit einem Spudger hoch.

    • Ziehe das Display-Datenkabel vorsichtig aus seinem Sockel auf dem Logic Board.

    • Achte darauf, dass du den Verbinder des Display-Datenkabel gerade aus dem Sockel herausziehst.

    Sure could use a magnified picture of this connector and socket, especially the first time you go in. And it is the most critical step of the whole operation — bung it up and we’re toast.

    bstaud -

    Hi bstaud! If you hover over the image you can click on the magnifying glass and get a large image of any guide photo. Hope that helps!

    Sam Goldheart -

    To clarify, the connector pulls out in the plane of the logic card, not perpendicular.

    David Thompson -

  21. ZTsCHu1PYMxnNnAh
    ZTsCHu1PYMxnNnAh
    gXnKWlBSo3bKuaYE

    • Hebe das Display an, bis es fast senkrecht ist.

    • Es gibt immer noch einen Klebestreifen an der unteren Kante des Displays, der den Display wie eine Art Scharnier mit dem Rahmen verbindet. Klappe das Display einige Male auf und zu, um den Kleber zu lösen.

    Where can I find a replacement display for my iMac?

    Braydon Boyce -

    iFixit has listings for replacements. Go to the Parts section

    jerrid_foiles -

  22. WSghCUsAmCI5ItdL
    WSghCUsAmCI5ItdL
    c5IUYOrEHeUkIKdF

    • Wenn nötig, kann eine Plastikkarte helfen, den unteren Klebestreifen vollständig zu abzutrennen.

    Cutting through this extra adhesive on the bottom took a bit more effort than the step and picture implied (to me). Unlike the other edges, here don't be afraid to really push the card in there to break the seal, there's nothing behind that adhesive that is breakable.

    phil -

    cutting through the adhesive is unnecessary if it's not been opened before (outside of an apple store) there will be a tab at the end of each VHB strip that you can use to simply pull the vhb strips off.

    Rory McKenna -

    YES, exactly the same here. more but more simple.

    Lucio Alves -

    To save a few steps and a bit of time, if you have a helper, they can hold the display at a 90° angle while you unscrew the brackets and remove/replace the hard drive rather than remove the display entirely. Also reduces the likelihood of damaging the display as you remove and handle it.

    marty -

    The proper way to remove the display according to the Macintosh tech manual and videos is as Rory McKenna and Lucio Alves have learned is to pull the tab at the end of each VHB strip until it is off.

    Ben Varela -

    This worked great! look for small left over adhesive on either edge of the bottom of the screen and pull each one towards the center. Screen assembly removes after that with no fuss.

    Miguel Rivas -

  23. AuGIfUNivY1BMtep
    AuGIfUNivY1BMtep
    TTXmNVER1RaNAdae
    faxQnwtHCFq2mQfp

    • Hebe das Display nach oben aus dem Rahmen und entferne es aus dem iMac heraus.

    • Möglicherweise musst du an einer Seite anfangen, das Display langsam anzuheben, um den Rest des Klebebandes zu lösen.

    • Sei vorsichtig bei der Handhabung des Displays. Es ist groß, schwer und aus Glas.

  24. eJkD4BRQM4pFSEkg

    • Entferne folgende Torx T10 Schrauben, welche die Festplattenhalterung am Rückgehäuse befestigen:

    • Zwei 21 mm Schrauben an der linksseitigen Festplattenhalterung

    • Eine 9 mm Schraube

    • Eine 27 mm Schraube

    Pay attention to this photo and where the fan is. It is 180° from where the previous step shows it is oriented to you.

    Max Romano -

  25. jjmgaJBQQ3GCBXAJ
    jjmgaJBQQ3GCBXAJ
    OYaQKvCeXcNJ5pXZ

    • Entferne die links- und rechtsseitige Festplattenhalterung vom iMac.

  26. rAirT1GHZP1qpIqC
    rAirT1GHZP1qpIqC
    FI1BVEajFcTkxyGe
    fH3KYDKkVeWLdH2L

    • Hebe die Festplatte am Rand in der Nähe des Logic Board an und ziehe sie etwas aus ihrem Sitz.

    • Die Festplatte ist noch über die SATA Kabel für Daten und Stromversorgung angeschlossen, versuche also noch nicht sie ganz zu entfernen.

    The newer drives have rubber ends and an adhesive side, be careful removing them if replacing the drive and be sure they are securely pushed back into the holder

    Carl Schultz -

  27. xAT4mnLlMEmZaE1l
    xAT4mnLlMEmZaE1l
    nUVTcTkKjNk2phCg

    • Löse das SATA Combo Kabel für Daten und Stromversorgung, indem du mit dem Spudger vorsichtig seinen großen Plastikverbinder weg von der Festplatte hebelst.

    When reconnecting the SATA cable, there is nothing to make the connector hold still, and it is hard to reach, so it took several tries. I ended up taking off the rubber baby buggy bumpers to get more room, and then jamming them back on after getting the SATA connector snugged up.

    bstaud -

    If by rubber baby buggy bumper, you mean left speaker, then yes, I agree. Reinstall the hard drive before the left speaker.

    jerrid_foiles -

    Kudo to @jerrid_foiles! I was going crazy trying to attach the SATA cable until I took the two screws out of the left speaker and slid the top end of it aside by about 3/4 inch. Make the whole process SO MUCH easier!!

    jiclark -

    We solved this by removing the hard drive tray screw, then inserting the cable into the SATA hard drive. Then hold the hard drive a bit out of the way to insert the 7.3mm hard drive tray screw.

    Marjie -

    Agree with this method, found it an impossible task to reconnect the SATA connector until removed the tray screw, then it was relatively easy to reconnect and then replace the tray screw.

    daveedwards -

    Also agree with this method!

    jmorphett5 -

  28. gPY6hXsOGJ1vn6ij

    • Entferne die Festplatteneinheit vom iMac.

    When reassembling, I found it easier to loosen the HD tray screw from Step 48 and pull the tray outwards from the left side in order to plug the SATA cable in more easily.

    Cool_Breeze -

    Thanks! I, too, had a hard time reconnecting the SATA cable.

    boboswell -

    I found this helpful too!

    Anwar -

    And DON’T do what I did, which is to remove the left speaker - which can easily lead to breaking the cable between the power on button and the power supply. The cable is routed through a hidden slot at the very bottom of the left speaker

    bsmith1 -

    I did loosen the speaker so I could get a tool behind the SATA cable to push it on to the SSD drive. Otherwise hard to align cable.

    Noah Ralston -

    I found the easiest way to connect the SATA cable was to not screw the plastic hard drive tray down until you plug the drive in. That way you can easily push the connector in and due to the cable you’ve got some wiggle room. You can position the tray then just lift one end of the drive up and secure the screw. Then just push the drive down.

    Chris Caldwell -

    This was the step that I had the most trouble with. I’m used to replacing a hard drive in a MacBook Pro, where the “plug” that you plug the drive into is a rigid thing that you can firmly press the hard drive into.

    With the iMac, the plug is situated on the end of a non-rigid cord, so the plug moves back when you try to snap a drive into it. Also, those two rubber gasket things that you adhere to the side of the drive really make it difficult to maneuver the now-overly-chubby drive towards the plug.

    After must frustration/concern, what I ended up doing was temporarily removing the rubber gasket things, using the “spudger” as kind of a lever behind the “plug on a cord” so that it didn’t move as much, and then pushed the gasket-less SSD into the plug.

    Once I got it connected, I put the rubber gaskets back on the sides of the SSD and kind of coaxed it down into place, using the pointy end of the spudger to get the chubby corner pieces to “sit” correctly in the rigid plastic tray that the SSD kind of rests in.

    Jack OnFlickr -

    From another comment elsewhere on this repair, I *highly* recommend removing the two screws holding the left speaker in place, then sliding it just a tad out of the way to be able to easily attach the SATA cable. You don’t have to move it much to make the whole process so much easier!

    jiclark -

  29. tXgbq1skm5eXxoPB
    tXgbq1skm5eXxoPB
    m3WEXUyRZ2EnMKCx

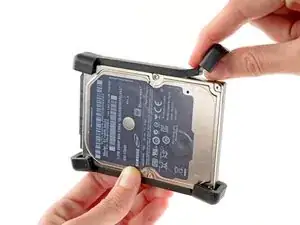

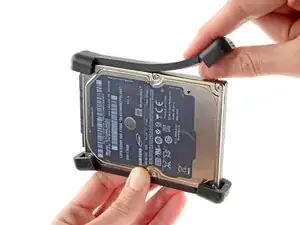

    • Löse die Gummidämpfer von der Ober- und Unterkante der Festplatte ab.

    Hi,

    I would like to change my standard HDD of 1To to a SSD following these instructions. All the SSD can be used like SSD Crucial BX100 500 Go or Crucial MX200 500 Go ?

    Thanks

    Denenden -

    And Samsung 850 Evo, but you should think how to solve the cooler problem before you start, because there's no thermal cable in those SSD's.

    pzhivulin -

    Hi, is it important to use a HDD as replacement/upgrade from the same manufacturer like it is on older iMacs with 3,5" HDD? I'm thinking of the thermal sensor (which isn't there in this case) and the hispeed fans issue. Any hints appreciated :)

    Mac -

    there is a cable adapter you can buy with an inline thermal sensor on it to attach to the outside of the drive

    Dan -

    I was under the impressoin that this model, with it’s 2.5” drive, had no extra thermal issues like other older iMacs. Meaning you could just pop any other SATA 2.5” drive in there and the fans would operate normally.

    Other comments seem to imply this is not the case? I’ve never seen sensors or adapters for this model of Mac?

    John M -

    You are correct, John. Per OWC Tech support, no thermal sensor cable needed for the 2.5” HDD, SDD on this 21.5” iMac.

    Macrepair SF -

    So. i do not need to install a temp sensor when upgrading to a SSD drive? The guy at a service repair stated that I did need to. SO. im confused. I ordered one from ifixit

    Rdatlnt1 -

    I had to take out the 10 torr screw holding the bottom bracket done in order to get enough room to connect the new hard drive to the cable; before attaching bumpers

    provda -

    Me too. Had to do the same

    nv. -

    thank you…easy repair

    rmolway1 -

    I am so glad to discover that this process isn’t nearly as difficult as I thought it might be!! The hardest part is reattaching the SATA cable to the new hard drive, but removing the screws that hold the left speaker in place and sliding it aside just a tad makes it easy peasy!!

    jiclark -

    It’s worth noting you may loosen q the left air Ram (plastic part) by removing the torx screws to gain extra access to the SATA cables if required.

    Andy Carver -

    Does any formatting need to be done with the drive before installing? Or it’s a plug and go and MacOS will prompt the install?

    Phillip Ray -

    any recommendations for the adhesive to use when re attaching the screen?

    Bryan Mclean -

    there are “adhesive-strips” that you can buy from the ifixit-store

    Nicolas Spitzauer -

    +1 any recommendations for the adhesive to reattach the screen?

    Carlos Cervantes -

    @carlos Cervantes

    The best is to buy them from Ifixit : good adhesive, holes well marked, and numbered as in the explanations to do it : no problem at all

    philippe -

    My iMac 2013 21inch is a factory upgraded SSD, can I have if they still have SATA cable and the rubber surrounding the HDD/SSD ? I want a bigger SSD but don’t want to touch the PCIe. Thanks

    mariolau87 -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Sam Goldheart

Mitglied seit: 19/10/12

457712 Reputation

39 Kommentare

Super awesome instructions, As always easy to follow, swapped out he drive pretty quick. makes me miss the magnets for sure.

Justin Weathersbee -

Guide was great, didn't take long at all. I hope the adhesive proceeds to stick now that I put the glass back on!

MITG -

Be sure to position the screen all the way down on reassembly. I sort of tried to hinge it back, resulting in a little space of a fraction of a millimeter. Had to push the screen down when attaching the rest of it.

Daniel JB -

Great instructions, I chose to purchase the adhesive strips from Ifixit and they worked great, much easier than trying to shape your own plus they stick really well.

Alan Petten -

Great instructions. Is it possible to replace HD with a SSD Samsung EVO ?

thanks

Claudio Tumeo -

I believe the EVO is what I used in my iMac at home, but it was a while ago and I honestly do not remember for certain. In my experience though you can replace an HDD with pretty much any SSD that meets your capacity requirements. Some have better specs than others, but ~any~ SSD is going to have alarmingly better performance than an HDD. I have totally revitalized three computers that would otherwise have been put out to pasture, by the simple act of replacing the hard drive with an SSD. Working on an iMac is a bit more daunting than many others, but following these instructions, and being very "Zen" about it, taking your time, having the tools and materials laid out and ready at hand, being focused and not rushed, should result in a great upgrade, and a computer better than new.

Keith Gardner -

So on this model we don't need to worry about a thermal sensor or the fan going into overdrive after swapping the drive?

alyssaengleson -

That's is correct :)

Daniel JB -

Great guide. One thing I did on the reassembly was to loosen the speaker next to the drive bay so that I could get my fat fingers in to push the SATA connector onto the new drive.

Good job!

James Metcalfe -

Step 21 is a little nerve wracking … however, if you look closely, each corner had a small section of tape that looked like a starter strip. If you pull that up and then, once loosened, pull toward you - the entire strip of tape will come off making the display removal very simple.

Joe Husk -

Yes. Buy the adhesive strips, and the tools, so you don’t have to stop and scrounge around the shop/basement/house/office for tool-equivalents.

bstaud -

Very apprehensive at first when taking on upgrading my iMac 21.5” Late 2013 Hard Drive with a Samsung Evo 860 SSD. Followed this hard drive replacement/ upgrade guide, plus the ‘clone and existing drive’ and ‘how to re-apply your iMac display’ and had it done with 2 hours. Fantastic guides, easy to follow and carry out. Thank you.

Nicholas Lake -

Upgraded my 2014 iMac to an SSD and Its so much easier than I thought it would be. From start to finish the teardown was complete in about 30 min. The wheel and cards worked perfectly and the adhesive was easy to use. I like tearing this one down better than the older iMac. No screws or magnets to deal with.

Joe Henry -

Good instructions!

Thanks

[deleted] -

Hi, dont you need to replace / substitute the thermal sensor? thanks

Christian Fleckl -

No, there's no need on this model!

Daniel JB -

Awesome.. was about to upgrade my ram but used SSD as external and seems fast.. going to follow the instruction and replace with Samsung Evo 860

Crazy Punk -

Would you mind linking me to the specific Samsung Evo 860 you used? I think I’m going to attempt this switch, and a RAM upgrade too, but I don’t want to get the wrong model!

Thanks

Daniel Hearn -

unscrewing the speaker to shift out of the way makes plugging in the new hard drive much easier.

Phillip Ray -

With the tools from iFixit I encountered no problems, not even the ones mentioned in some comments. Everything worked fine. Just make sure to carefully reattach the display cables and keep their plugs clean.

Bachsau -

do you need a special ssd disc to make it fit in the iMac or can i just buy a Samsung ssd?

Oynes -

Very good guide. Just what i needed

Susanna verner -

Hi after installation what do we do with the hard drive? Does it need formatting and installing OS?

Double C -

2013 iMac. What if you replaced it with an SSD? Anything extra needed?

Danny Hoover -

Hi, there isn't hard drive temperature sensor like previous iMac 2009 or 2010?

Thank you.

Domenico -

These are great instructions. Combined with the correct tools from iFixit, it’s a snap. Thanks!!

Jeff -

The hardest part was replacing the adhesive. I wish there was a link for those instructions. Also, I would like to see links for instructions on the software side- how to get the computer working again. Thanks

Catherine B -

I am upgrading my Imac 27inch 2013 to a ssd drive. Do I need to buy the sensor lead. Been reading somewhere and I dont need to buy the sensor lead as its only for older Imac’s.

Michael Hancock -

Are the screen suctions cups no longer an option for repairing iMacs? I’ve done older ones that had the outer glass held in with magnets. They were easy to remove. I can’t believe there were 18 steps on this iMac with using the wheel and the cars before you could lift the screen. Getting intimidated.

subscriptions -

Tutoriel avec descriptions vraiment minutieuses. Pour ma part, j’ai utilisé une roulette ordinaire du commerce (Rotary Cutter Ø45 mm) dont la lame ne dépasse que de 5-6 mm la butée et des écarteurs découpés dans un plat de couverture GBC (épaisseur 0.8 mm) en leur donnant une forme plus longue que le côté d’une carte de crédit. En plus, avec un “hot air gun” j’ai chauffé avec précaution le bord de l’écran pour ramollir le joint. Tout a bien fonctionné.

Jean-Pierre BRUPBACHER -

bonjour,

La colle (autocollant double face) est répartie uniformément tout autour de l’écran.

Le pouvoir collant est lié à la surface de colle (le périmètre autour de l’écran).

L’intérêt et objet de la coupe latérale (avec un objet) est qu’il vient séparer la “colle” physiquement, presque sans aucun effort (et correspond à la perpendiculaire du pouvoir collant (force et intérêt recherché par la pose de la colle)).

L’opération consiste donc à couper et lever (désolidariser) légèrement l’écran de la structure aluminium afin que la colle ne reprenne pas.

L’usage de la chaleur va faire perdre le pouvoir collant du scotch.

Problème : la chauffe des éléments comporte des risques, aussi je ne recommande pas tellement l’air chaud ici (difficile à maitriser si pas d’outils adapté = mesure température).

A vous de voir le bénéfice risque.

Le pb est que souvent la manipulation est exécutée par une personne pour la première fois, et plus jamais ensuite.

Donc le processus d’apprentissage manuelle est limitée (coup de main).

Sébastien -

Doing this and not using an actual Apple hard drive will not turn out well in the end. A thermal sensor is needed to control the fan speed which I believe the fan is regulated if you have an actual apple HD. OWC sales the thermal sensors but they have none for the late 2012 - 21.5, the 27inch they do have it.

QuickTech -

Hello I have Time Capsule backup and iMac is running Catalina. How can I re install the operating system in the new SSD after this disk replacement? Thanks a lot.

Santiago Enciso -

Very easy process, just takes a little patience. I can highly recommend the bundle set they do with Hard drive etc as this helped no end and also gives you new adhesive tape for re sealing the device which you will need. Very happy and glad to get rid of that awful 5400RPM hard drive. This iMac is now 7 years old and now out performs my 2019 i5 Surface Book 2 for boot up speed.

jimbobcook -

A little intimidating at first, but turned out well, was simple to follow with no issues along the way. Very satisfied with the outcome and the mac is useable again. Performance uplift is huge and most of all I can get many more years out of the device.

Rostislav Troyak -

I didnt see a temperature sensor needed in the instructions when replacing the HD with an SSD in the 21.5” imac as it shows in the 27” imacs. Is it not needed in the 21.5” ?

Chuck Tennenbaum -

After getting an estimate over $1000 from the local Apple store, I purchased the 1Tb Crucial SSD kit. The instructions were very good, the tools and parts supplied perfect. While I had the drive out I removed the fan and blew 7 years of dust out of the heatsink and fan. Used online recovery and Time Machine to transfer the OS and data to the new drive. Speed difference is like night and day - approx 15 seconds from power on to logon prompt. The case and cable for the old drive is icing on the cake.

Peter -

Do not just pull on the power cable as instructed in this guide because you will cause irreversible damage to components. Instead there are clips on each end that need to be depressed to release the power cable, then pull straight out.

Clay -

My iFixIt "iMac Intel 21.5# SSD Upgrade Bundle / Crucial 500GB / USB 3.0 Metal Drive Enclosure..." Items #173042-13 kit came with some extra parts not described in any parts list or instructions for either the Fixit kit or Crucial SSD drive:

1) A black plastic frame, the same size as the ssd drive

2) A round foam disc, approx 1"x 1/8 inch, with peel-able adhesive

3) 4 tiny black phillips head screws

And going the other way, the included bit driver with three bits only contained two bits.

Any ideas?

Jonathan -
