iMac Intel 21,5" Retina 4K Display (2017) Festplatte austauschen

Geschrieben von: Evan Noronha
  • Kommentare: 122
iMac Intel 21,5" Retina 4K Display (2017) Festplatte austauschen

Schwierigkeitsgrad

Mittel

Schritte

28

Zeitaufwand

1 - 2 Stunden

Einleitung

Folge den Anleitungsschritten um das SATA Laufwerk deines 21,5" Retina 4K 2017 iMac aufzurüsten oder zu ersetzen. Wenn du dein Laufwerk aufrüstest, musst du darauf achten, dass du das alte Laufwerk vor dem Austausch auf das neue klonen musst, damit Dateien und Betriebssystem übertragen werden.

Einige Bilder in dieser Anleitung zeigen einen 2015er Mac mit geringfügigen äußerlichen Unterschieden. Sie haben aber keinen grundsätzlichen Einfluss auf das Reparaturverfahren.

  1. SrDNTSYqyhGMRNDC

    • Mit einem frei beweglichen Gelenk kann der iMac unkontrolliert pendeln, das macht es schwer an ihm zu arbeiten. Es geht leichter mit einem iMac Service Keil, es kann aber auch ohne ihn durchgeführt werden.

    • Wenn du die iFixit-Reparaturhilfe aus Karton verwendest, dann baue sie zuerst mit Hilfe dieser Anleitung zusammen.

    • Bevor du beginnst an deinem iMac zu arbeiten: Ziehe den Netzstecker, drücke und halte den Ausschaltknopf für mindestens zehn Sekunden. Dadurch werden die Kondensatoren im Netzteil entladen.

    • Sei sehr vorsichtig und berühre nicht die Leitungen oder Lötstellen an den Kondensatoren auf der Rückseite der Platine des Netzteils. Fasse diese nur an den Kanten an.

    The wedge is an extremely tight fit for this model. I was worried that the amount of force needed to use it as shown might damage the stand, so I used it with the long side down instead. It worked fine that way and didn’t need anywhere near as much force to insert.

    roberttrevellyan -

    Here’s a good YouTube vid on upgrading the RAM: Can a Normal Person Upgrade the RAM in the 2017 21.5" iMac?

    Dan -

    Here are a couple tips from me:

    1) Expose the adhesive to extreme temperatures. I did this by transporting my iMac in my car, screen-down on a piece of cardboard on a cold February morning (in Chicago). When I went to pick up the iMac, the screen practically fell off the chassis. I would have been distraught by this if I hadn’t already planned this replacement. So it was a happy accident.

    2) Remember to expell the residual power from the power supply by pushing the power button while the iMac is unplugged. This does NOT guarantee it’s safe to touch, but when I accidentally brushed the solder and exposed capacitors, I didn’t get shocked.

    jerrid_foiles -

    Instead of using the wedge, I placed the iMac faced up with the top side (web cam) facing me while I ran the pizza roller around. It worked out great!

    Sam Fung -

    “All iMacs also come with a traditional hard drive” mine doesn’t!! it’s HDD bay is completely empty, no SATA cable or anything. I guess I’ll have to upgrade the PCIe SSD instead.

    Chris Hughes -

    There is no replacement glass for this model, it is part of the LCD and impossible to remove or replace- the entire LCD has to be replaced unfortunately if the glass is cracked or damaged. You will have to Google search for a replacement. Also be careful with some of the lock tight tork screws as I broke one of my screw mounts taking one out.

    Phil Tesone -

    I used this service wedge but also found it a very tight fit. The same stabilization can be achieved by using a big rolled up towel.

    Ernst -

    While this is a good instruction guide, I recommend to also look at OWC’s instruction video about drive installation, before starting the exercise. Those install videos are very detailed and useful.

    Ernst -

    Main advice: TAKE YOUR TIME with the pizza roller.

    Make several passes, until you really feel like there's no more sticker in the way. Stay away from the camera though (approx. 1inch / 2.5cm on both sides). This will reduce the work left with the plastic card. Adhesive is really on the edge of the screen so there is absolutely no need to go any further than the recommended 1cm / 3/8inch depth.

    Where are the sensitive parts?

    Facing your iMac, imagine you're looking at a watch. There are antennas on 1, 2 and 4 o'clock. Do not insert any metal piece there (nor anywhere else, btw). Other than that AND the screen cables underneath the camera, not much danger.

    Froggy Manny -

  2. QPZ14vf5mNSObPx1
    QPZ14vf5mNSObPx1
    1KAQXZNy65Y1ferW

    • Setze das iMac Opening Tool an der linken Seite des Displays, in der Nähe des An/Aus Schalters beginnend, in die Spalte zwischen Glaspanel und Rückgehäuse ein.

    • Die Achse am iMac Opening Tool verhindert, dass du es zu tief einschieben kannst. Wenn du ein anderes Werkzeug verwendest, musst du aufpassen, dass du es nicht tiefer als 9 mm in das Display einschiebst.Sonst riskierst du ein Durchschneiden der Antennenkabel, was zu ernsthaften Schaden führen kann.

    Don’t get too worried about starting exactly where the picture says. The glue is stronger in some parts so just start wherever is easier and then work slowly and patiently around in the direction shown.

    Richard Cook -

    As this guide doesn’t cover replacing the adhesive strips, I found referring to the following was useful (noting that it’s not for the same model of iMac, so the modification they mention wasn’t necessary): IMac Intel 21.5 "EMC 2544 Klebestreifen ersetzen

    Alan Digby -

    It is very easy to crack the glass in front of the LCD during this step. I used the guitar pick, maybe it was too thick… crack is just on the frame but anyway it is disappointing :(

    Nikolay -

    This part of the exercise should be done with extreme patience. I took my sweet time with the opening tool, rolling it through the entire panel and enclosure gap over and over again, until I was very sure no parts were sticking together anymore. And when I thought I was I done, I decided to do it over again.

    Ernst -

    You can "warm up" the adhesive before try to cut it with the tool using a hair dryer. Heat the edges for about a minute, keep moving it so you don't cause stress in the glass. Also the above note.. use the tool and then the cards. Do not use a guitar pick or other objects as the thickness will cause you to break the front glass, which is a bonded part of the display (expensive).

    Carl Schultz -

  3. SdaoaCo1EmiD4NqV
    SdaoaCo1EmiD4NqV
    eOsvYmvle2iDrZvZ
    LS2Bi6uDXDmSSIOJ

    • Benutze es wie einen Pizzaschneider - Rolle es entlang des Spalts und trenne dabei den Klebeschaum in der Mitte.

    • Achte darauf, dass du es immer mit dem Handgriff hinter dem Schneidrad führst. Wenn du ziehst, kann sich das Rad aus dem Griff lösen.

    • Lasse das Werkzeug die linke Seite des Displays entlang laufen.

    Erreur de traduction: "de bas en haut" et non de" haut en bas" sur le côté gauche de l'écran

    Moreau -

    If re-opening a screen that was opened and re-attached using iFixit’s adhesive strips, I would strongly recommend heating it first with an iOpener, heat gun or hair dryer. 20 minutes after attaching with the iFixit adhesive I tried to open it again with the pizza slicer to fix something and cracked the screen on the left-hand side.

    plasticpool -

  4. r1eMkSSjJdpmWr1B
    r1eMkSSjJdpmWr1B
    d6iAMVdqVUdnvYnD
    PsnDnjYNWucTLycx

    • Fahre fort und lasse das Werkzeug um die obere linke Ecke laufen.

    Ne pincez pas l’écran avec l’autre main. Vous exercez une pression inutile sur le verre et empêchez la roulette de couper le joint.

    phfoglia -

  5. sZNVaGR3f2vruyLS
    sZNVaGR3f2vruyLS
    HDO3QbYuc4krqwHX

    • Schneide die Klebeverbindung entlang der oberen linken Seite des Displays auf.

  6. vSKcLcMFSZoPp6Gp
    vSKcLcMFSZoPp6Gp
    uiuQPD3lViaQODlB

    • Fahre an der Oberseite des Displays fort.

    • Du kannst das Werkzeug mehrmals hin und her schieben. So trennst du so viel wie möglich von der Klebeverbindung auf.

    In this step can I cut along the display without make any damage to the front camera?

    arisnordico -

    Hi! Actually - there is no need to cut the tape around the camera area - there is no tape to cut at all! And so, the way go is easy - just pass 10 mm to the left and to the right from camera and start cutting!

    P.S. Just did the whole procedure to replace a RAM and to add SSD on PSIe an hour ago! Seems to be different reading the instructions... you know - 2/10 and so on. But it's really not that hard, trust me. I'll give it 5/10.

    P.P.S. By the way there is one trick to pass the difficult steps. Any action which requires pulling smth (motherboard, speaker, power supply unit) from the narrow crack (or should i say - slit?) at the bottom of your Imac is really not so easy.

    And the trick is to first remove a thin metal stripe with some kind of insulation on it which held by 5 small (very small!!) screws at the bottom of your Imac. After you done it - it's easy to pull everything! Pay attention to the fact that one of this 5 screws at the center are more shortly than others.

    dv1977 -

    I did all steps like this manuell but now the Display wont work only some colered strips are to see! Whats happend??

    Can anybody help me ? Maybe the connector cable is broken?

    djfanta -

    Check both connectors, probably one of them not seated well

    pzhivulin -

    You can add a SATA SSD if you already have a PCIe SSD Factory?

    kaserlik -

    If you're changing cracked EMC 2638 display to new assembly, there's two more steps:

    Step 24: Use the tip of a spudger to flip up the metal retaining bracket on the display data cable.

    Carefully pull the display data cable from its socket on the display assembly.

    Step 25: Use the tip of a spudger to unplug bracket of the thermal sensor small cable near display data cable.

    Carefully remove scotch tape covering thermal sensor. Using iSesamo or flat tip of the spudger carefully peel the thermal sensor away.

    pzhivulin -

    omg - forgot to switch the termal sensor from the old display...

    now fan runs like crazy...

    Andrei Balotescu -

    The key thing is to never put any force on the opening tool when working through the tape. Just roll it back and forth with ease.

    Ernst -

  7. eDPbRqQfKjS4oUnZ
    eDPbRqQfKjS4oUnZ
    qm5g46NqRXJjxaVm
    krs4wdofACqDD6Ju

    • Schiebe das Werkzeug um die obere rechte Ecke des Displays.

  8. 3c3b2XusJDWQekW6
    3c3b2XusJDWQekW6
    NGOHPeVZ52OQCRWQ

    • Rolle das Werkzeug die rechte Seite des Displays nach unten.

  9. SAgRGwk3lGGO3ZCH
    SAgRGwk3lGGO3ZCH
    1DLPSpBELT2mxJok

    • Beende das Schneiden mit dem iMac Opening Tool unten auf der rechten Seite des Displays.

    • An dieser Stelle solltest du noch einmal das Werkzeug um das ganze Display laufen lassen, um wirklich soviel von der Klebeverbindung wie möglich aufzutrennen.

    Yes, do it many times to loosen the adhesive.

    Noah Ralston -

    Would be good data to show the 3 areas (wifi antennas where the "tape" is larger and covers them. The rest of the "tape" is 1.4" and easy. Also after removing the display, be sure to remove the old "tape" from both the display and the rubber parts of the case. Use the spudger to start an end and it should pull off easily. Careful on the baackside of the display as you can scratch off the black paint/covering.

    Carl Schultz -

  10. HVK2HNgts1D53wOs
    HVK2HNgts1D53wOs
    QrZMXcap4the5yXk
    hZXQgXJhIoKTxBwH

    • Das Werkzeug hat den größten Teil der Klebeverbindung aufgeschnitten., aber das Display ist immer noch ein wenig mit dem Gehäuse verklebt. Den letzten Rest musst du mit einer Plastikkarte lösen.

    • Lege den iMac mit der Scheibe nach oben auf den Tisch.

    • Beginne in der oberen rechten Ecke und zwänge eine Plastikkarte zwischen Display und Rahmen.

    • Achte darauf, die Karte nicht tiefer als 9 mm einzuschieben. Du könntest sonst Bauteile im Inneren beschädigen.

    this step is extremely important NOT to stick in the cards too far….. doing so, you risk a 600 euro replacement as I experienced………

    Edgar Broekema -

    I drew a 3/8” line on my cards with a marker first.

    Max Romano -

    I’m reading this on the EU store, please change all measurements to cm/mm.

    Morgana Devina -

    @ifixit The next batch of cards you create should have a line printed on the card 3/8” in from the edges. Would make a nice reference.

    Richard Giratd -

    Here’s where OWC provides glass removal suction cups, which is a better solution than plastic cards.

    The suction cups help to easily lift the glass panel, without risking the damaging of any internal wiring that the plastic cards could cause.

    Ernst -

    Better to remove stand wedge at this point? Can’t see from pics

    derekrobinson -

  11. wUjiMGtv2IpkNB5p
    wUjiMGtv2IpkNB5p
    LncJQeQQOAvg3CMA

    • Verdrehe die Plastikkarte seitlich und vergrößere so den Spalt zwischen Display und Rahmen.

    • Bewege die Karte vorsichtig und langsam, damit das Displayglas nicht zu stark belastet wird - du brauchst nur einen Spalt von etwa 6 mm Breite zu öffnen.

    This part must be done very carefully or you can damage the flat cable from display, despite it was under a iron cover.

    Cassio Machado -

  12. qmVJHqIxctiuCbE5
    qmVJHqIxctiuCbE5
    6PF3COgq44osRMSX
    1nZLqZWsCa1xRTOR

    • Schiebe die Karte zur Mitte des Displays hin und schneide so allen Kleber an der rechten oberen Ecke des iMac auf.

    • Halte unbedingt vor der iSight Kamera an, damit sie nicht beschädigt wird.

    You don't need to do it like this, simply open the iMac bendidng the LCD completely and use the pizza cutter to remove the adhesive.

    Felix -

    Using glass removal suction cups will avoid running this risk of damaging the camera (or any wiring).

    Ernst -

  13. pwG3JFqqfxxQXLID
    pwG3JFqqfxxQXLID
    wKv4nNrdklsj61AD

    • Zwänge die Plastikkarte erneut in die obere rechte Ecke ein und lasse sie dort stecken. Damit verhinderst du, dass sich die Teile wieder verkleben.

  14. B1l4C4H1WK3CwfsH
    B1l4C4H1WK3CwfsH
    5gnKwfWW1K2gnkAY
    dU3V1S5PiPpZoiRX

    • Setze eine zweite Plastikkarte an der oberen linken Ecke des iMac in den Spalt zwischen Rahmen und Display ein.

  15. 1eeYyLOXUgoVdMcU
    1eeYyLOXUgoVdMcU
    XNwnBG1I3otkGVaj

    • Verdrehe die Karte nach oben, vergrößerte so den Spalt zwischen Rahmen und Display ein wenig.

    • Drehe, genau wie an der anderen Seite, langsam und lasse dem Klebstoff Zeit beim Auftrennen. Achte drauf, das Displayglas nicht zu stark zu belasten.

  16. 1AtMSKY35dfSoyov
    1AtMSKY35dfSoyov
    eYI56QJhkhMLdtyx
    oVDneBvJQXNCvQpC

    • Fahre mit der Karte zur Mitte hin, halte auch hier wieder vor der iSight Kamera an

  17. KlhOFUANthUfPZrW
    KlhOFUANthUfPZrW
    KGDDBwLWXguRGlso

    • Zwänge die Karte wieder bei der linken oberen Ecke ein.

  18. xXVPepFcNBfFlYLm
    xXVPepFcNBfFlYLm
    mJWDXXcMCnL6OwqX
    lGcKi3n1DVFdANJw

    • Verdrehe nun beide Karten seitlich, wie im Bild zu sehen an den Ecken eingesetzt, und vergrößere den Spalt zwischen Gehäuse und Display.

    • Wenn manche Stellen noch verklebt erscheinen und sich nicht trennen lassen, dann musst du aufhören zu verdrehen und mit einer der Karten die Klebestelle auftrennen.

    • Fange an, die Oberkante des Displays vom Rahmen weg zu heben.

    • Hebe es nur ein paar Zentimeter an - die Datenkabel und Versorgungskabel des Displays sind immer noch am Logic Board angeschlossen.

  19. 2CYaRvZMKD1MHJWF
    2CYaRvZMKD1MHJWF
    fHCLPYQIpP4EVOLZ

    • Hebe das Display soweit hoch, um leichten Zugang zum Verbinder zu haben. Hebe es aber nicht zu hoch (höchstens 20 cm), damit die Kabel nicht zu sehr angespannt und die Verbinder nicht zu sehr belastet werden.

    • Halte das Display mit einer Hand fest und löse mit der anderen Hand das Kabel der Stromversorgung des Displays.

    It was difficult to remove this connection. I ended up having to gently pull-up vertically a little on the wire side to unsnap it about 1mm and then horizontally wiggle it out.

    delacrj2 -

    I had a difficult time removing this connection. I had to lift the wire-side about 1mm before it unsnapped and then carefully wiggle it out horizontally.

    delacrj2 -

    Can this cable be replaced? I am worried mine is damaged. I have no display after the screen fell and stressed the display flex cables following an SSD upgrade.

    Jeremy Brainard -

    This step should be done with extreme caution and care, as this step 19 is not described in great detail (sorry, author).

    The first (most outward) cable will slide out by gently pulling it by its tabs. The second (inner) cable is more tricky, as the locking lever must be moved backward first, before gently pulling backward on the cable connector. The angled tweezers are useful here, to help lift that locking lever, because fingers are too big for this.

    Ernst -

    be VERY careful and SLOW...take your time. These displays crack VERY easily when removing and they'll spider web on you. I've done probably 20 or so of these and cracked 3 being super careful.....ugh.

    Faslane -

    I found the best way to unplug this display power cable was to use my right hand, and the fingernails of my index finger and thumb to grab the ends of the tabs on either side of the connector, squeeze, and pull the connector out gently.

    Phil McInnis -

  20. Zh56FQPLtH1qJkBF
    Zh56FQPLtH1qJkBF
    RuoSZ5iXxQqvKfcF
    MuEuntgC4FjFNuDJ

    • Halte das Display weiterhin mit einer Hand fest und klappe den metallenen Sicherungsbügel am Displaydatenkabel hoch.

    • Ziehe das Displaydatenkabel vorsichtig aus seinem Sockel auf dem Logic Board.

    • Achte darauf, dass du den Verbinder des Displaydatenkabels gerade aus seinem Sockel ziehst. Halte ihn dabei parallel zur Platine, damit er nicht beschädigt wird.

    Cannot seem to find a replacement cable for this, as I suspect mine is damaged. Can’t even find a part number. Anyone know what it might be?

    Jeremy Brainard -

    https://www.amazon.com/gp/product/B08TTL...

    That's the part I ordered for mine and it seems to work ok. I did make a point of contacting the seller and advising them of my requirement and they ensured I got the right part and it matches the description of the link. Bear in mind I bear no responsibility if yours does not work since I am just sharing what I did and what I ordered. Thanks.

    Jim Stanford -

    I also need that cable.

    cameronjpu -

    It's a little difficult to tell... but looking at the connection to the logic board on the video data cable, are the pins faced up or down?

    On the display, same question since it appears you have to "twist" the cable during the reconnection step.

    Jim Stanford -

    For this particular cable, take a good look before pulling on anything. Plug is locked on its socket with a bracket. You can lift this bracket by holding the small, flat black plastic handle that is attached to it. If you're struggling to grab it, use the end of the pizza roller handle to lift it, or the tweezers. Cable then comes off by pulling parallel to the main board.

    Froggy Manny -

  21. faYLZCcUqNgfLImh
    faYLZCcUqNgfLImh
    fTsCL5NUphoD5vbV

    • Hebe das Display nahezu senkrecht hoch.

    • Es gibt jetzt immer noch einen Klebestreifen am unteren Rand des Displays, der dieses wie ein Scharnier am Rahmen festhält. Du kannst den Klebestreifen ablösen, indem du das Display ein paar Mal hoch und runter bewegst.

    The best way to remove the chin adhesive is to use the tabs at either end (there are two strips that run from each outside corner to near the centre). Carefully pull the tabs up and the strips should peel off.

    Advance Technical Service -

  22. JPTg4NhGasMGYSuQ
    JPTg4NhGasMGYSuQ
    Y5FlxocLLXGaRWmi

    • Du kannst, wenn nötig, verbliebene Reste des unteren Klebestreifens mit einer Plastikkarte ablösen.

    At step 21-22, releasing the adhesive strips from the bottom of the display, I noticed a tab on the outer end of each strip. Pull the tab to remove the whole strip, no need to mess around with the plastic cards!

    roberttrevellyan -

    Instead of the plastic cards, use the flat end of a spudger. Use it as scraper. Be careful as there are antennas mounted on the inside edge of the frame on the right side (facing you), and the top right (facing you). The original adhesive strips are on those as well. - ECJ

    ECJohansen -

    A little bit of hot air (eg. hair dryer) will help soften the adhesive. Use a piece of cardboard or equivalent if you want to avoid blowing hot air towards the electronics.

    Be careful to remove absolutely everything - any remainder will create a bump and prevent your screen from sticking back to the frame when reassembling.

    Froggy Manny -

    A little bit of hot air (eg. hair dryer) will help soften the adhesive. Use a piece of cardboard or equivalent if you want to avoid blowing hot air towards the electronics.

    Be careful to remove absolutely everything - any remainder will create a bump and prevent your screen from sticking back to the frame when reassembling.

    Froggy Manny -

  23. W11PURO2LYnqVMEL
    W11PURO2LYnqVMEL
    4x45fNhvlBjfqU3f
    WstuEbNDdOlFKIns

    • Hebe das Display vom Rahmen weg und entferne es vom iMac.

    • Möglicherweise musst du es von einer Seite her langsam anheben, um es von restlichem Kleber abzulösen.

    • Sei sehr vorsichtig beim Hantieren des Displays - es ist groß, schwer und aus Glas.

    • Der Kleber lässt sich nicht mehr verwenden, um das Display erneut festzukleben. Folge dieser Anleitung, um die Klebestreifen, welche das Display am Gehäuse festhalten, zu erneuern.

  24. vnCZOVJAfQMkCXVO

    • Entferne folgende Torx T10 Schrauben welche die Festplattenhalterungen am iMac befestigen:

    • Zwei 21 mm Schrauben

    • Eine 9 mm Schraube

    • Eine 27 mm Schraube

    At step 26, when reassembling, it's super easy to over-tighten the 9mm screw and strip the brass ferrule out of its hole in the plastic bracket (%#*@).

    roberttrevellyan -

    Mine has 4 different length screws, the two red colored 21mm screws in this guide are actually two differ lengths

    anonymous 523 -

    Mi imac does not have a HDrive whats the steps to follow?

    Charlie -

    buongiorno, l'imac del 2019, non monta alcuna ssd, ma monta una m2 direttamente sulla scheda madre!

    pertanto nella guida andrebbe aggiunto il cavo sata con sensore temperatura da aggiungere sulla scheda madre, per poter collegare un nuovo hd ssd altrimenti rimarrete come me bloccati con un imac aperto e non assemblato, in attesa di ricevere il cavo acquistato su internet da amazon o terze parti.

    vi consiglio inoltre di aggiungere una foto reale del ò'imac 2019 nella guida in cui manca l'ssd, renderà subito la problematica che avranno in molti!

    Donato Altomare -

  25. MFEFhp6PYNe1LMei
    MFEFhp6PYNe1LMei
    YOZ6AmbKs2AlGURG

    • Entferne die linke und die rechte Festplattenhalterung vom iMac.

  26. EGSkL6kXHVGCmtmj
    EGSkL6kXHVGCmtmj
    snVMiOLDfgjXKECJ
    lSpidPoWASusAqki

    • Hebe die Festplatte an der Kante nahe des Logic Boards an und ziehe sie etwas aus ihrer Vertiefung heraus.

    • Die Festplatte ist immer noch durch ihr SATA Kabel angeschlossen. Versuche noch nicht, sie ganz aus dem iMac zu entfernen.

  27. lPTZWiOAYX4DCip2
    lPTZWiOAYX4DCip2
    WWAqU5y5tyeOXye2
    Ze5CkUIkcEpVNERw

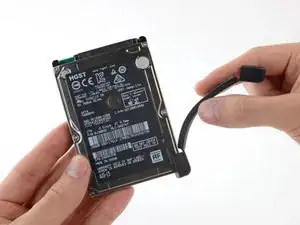

    • Löse das einzelne SATA Kabel, indem du es vorsichtig mit einem Spudger von der Festplatte abhebelst.

    • Entferne die Festplatteneinheit vom iMac.

    I’ve found that loosening the T10 screws on the enclosure to the left helps give some room to remove and reinstall the drive. Otherwise reattaching the SATA cable can be a hassle.

    rothgar -

    Not only is it useful to loosen up the speaker next to the SATA connector I found it helpful to use a pen to mark the exact location of the edges of the SATA connector on top of the new drive, so I could guide the connector in place. It also helps to put the bumpers in after you get this SATA connector in place.

    bsmith1 -

  28. OhYEhqf5cHYCQQIr
    OhYEhqf5cHYCQQIr
    UGpGbsieey3Yi44v
    wQTUmAvYnOUYUKKM

    • Löse die Gummidämpfer von einer Seite der Festplatte ab.

    • Wiederhole dies auf der anderen Seite.

    • Wenn du eine neue Festplatte einbaust, musst du die Gummidämpfer mit dopplelseitigem Klebeband befestigen.

    reconnecting the new drive can be a little tricky as the sata connector in the Mac is hard to align. I found that it helps to move the end of the bumpers out of the way, then push them back into position once the drive is connected.

    Gareth Jones -

    thats what it did as well, thx for the hint. also i used a plastic spudger to reconnect the plug unto the new drive and leveled it against the speaker casing thats so close to the drive bay

    Stef999 -

    Can I install a Samsung 850 EVO 500GB to replace my 1TB 5400rpm disk? and is a seperate thermal sensor/cable needed to prohibit the fan to run at 100% all the time?

    Maurits K -

    Yes you can install ANY SATA SSD.

    And no … there is no thermal sensor on the drive. You don’t need them on these models.

    robert Seith -

    Can I install a Seagate FireCuda 2TB to replace my 1TB 5400rpm disk? and is a seperate thermal sensor/cable needed to prohibit the fan to run at 100% all the time?

    andrew mudd -

    Did you ever find out if you could replace your 500 GB with that Firecuda? I’m looking at doing that. I need more storage for my 500 GB photos library and don’t want to pay so a ton for the SSD that is big enough.

    shippster -

    where is the guide for the follow up ?

    installing a new hard disk and closing the screen back up.

    yog1389 -

    The SSD was a HUGE performance boost over the 5400rpm drive my iMac came with. If you’re pulling your hair out because Lightroom has become excruciatingly slow, upgrade your hard drive to SSD. You will not be disappointed.

    The kit has everything you need. Follow these instructions carefully and you’ll be fine.

    Mike Mullis -

    Huge improvement! It’s like a new machine. Highly recommended upgrade.

    Take care with the adhesive strips, and don’t forget to set new SSD as the boot disk (System Preferences, Startup Disk) after you’ve tested its bootable.

    Stephen Babbage -

    I previously had a fusion drive and installed a SSD. Will there be any issues with the ssd portion of the fusion drive? I still see it there in disc utility. Also, I’m showing two SSDs, along with the 32 gig one. Is that correct or did I create something that shouldn’t be there?

    rossmueller -

    I have this same question. I’m showing 2 drives but 1 is grayed out on the computer screen when I click on it nothing happens.

    Frank -

    A fusion drive combines two physical disks via software to act as one. It it something that has to be done manually and expressly. When you first got the computer, your fusion drive combined disks A (SSD) and B (HDD). If you replaced B, then you probably have an unused 32 GB blade SSD along with your new SSD. It possible to create another Fusion drive, but you’d have to start from zero, because creating a fusion drive erases the individual disks completely.

    also, not 100%, but I tried for several hours the other day and I’ve come to the conclusion that my version of Big Sur (11.1) doesn’t support Fusion Drives. Correct me if I’m wrong. Or maybe it’s because I’m running Big Sur on an unsupported iMac.

    David -

    It is also possible install the bumpers after getting the drive cable attached. This gives you more room to work with the cable and drive.

    Sean Kane -

    The hardest part was to plug the connector into the new SSD. I loose the two screws of the adjacent (left) speaker and move it just enough to have sufficient space to introduce my fingers to push the conector into the SSD. Left the replace of the rubber bumpers after reconnect the SSD, is easy to handle without it.

    Dennis Salas -

    I bought Samsung QVO 1TB SSD and now the fan is blasting fast and loud. So if these don’t use the thermal cables then what seems to be triggering the high temp? Obviously it’s the hard drive but could it be that the drive was cloned? I’m kinda stumped, I know I can control with software but some of you are saying it should run normal after install. Thanks for the info.

    MonoFrio -

    Is there a PCIe slot for an SSD instead of the SATA 3.0 2.5”?

    thank you,

    deejaysurfer -

    Not unless your iMac shipped with a Fusion drive or SSD.

    roberttrevellyan -

    The step-by-step guide was awesome and easy to follow. As others have commented, getting the SATA connector onto the SSD is tricky but not impossible. Just pull back the rubber bumpers long enough to reach the connector, then flip them back into place before seating the drive. One comment for my machine (late 2015 21.5”): There is no mic hole for my model, so while I was a little confused at the instructions on reinstalling the adhesive, the drive replacement went like a dream. And I saved myself the $120 labor the local Mac shop wanted to charge me.

    Glenn Pettit -

    Hat alles prima funktioniert. Leider läuft der Lüfter jetzt auf 100% und kernel_task Prozess ist bei über 300%. Was habe ich falsch gemacht. Diagnose meldet jetzt einen SMC Fehler und CPU-Proximity liefert keinen Wert.

    Kann jemand helfen?

    Michael Schmitz -

    schau doch mal hier https://apple.stackexchange.com/question...

    Oliver Gaida -

    This is the least accurately described step (sorry, author). While removal is easy, inserting the new drive in its place is a bit tricky. The key here, is to insert the new drive with its rubber bumpers back in its space, so that it is fully seated down in its place *before* the connector can be re-attached. Once it is seated in place, use the flat end of the spudger to gently manoeuver the connector back into place until it is firmly connected to the drive.

    Ernst -

    Reassembling the iMac is not simply following these instructions in reverse order (sorry, author).

    Before embarking on the home stretch, it is very important to carefully study the guide about the Adhesive Strips Replacement (iMac Intel 21.5" Retina 4K Display (2017) Adhesive Strips Replacement - iFixit Repair Guide), as this a tedious and time consuming process. Perfect alignment of those adhesive strips takes some concentration, because you will want to have your display panel back nice and tight and fully aligned with the case. Once all strips are in place, the 2 display connectors need to be gently reattached to the motherboard, before closing up the panel. I took my sweet time for that step, and thankfully have a perfectly aligned display panel back in place looking no different from the factory fit.

    Ernst -

    Here’s the rest of the information you need.

    https://www.youtube.com/watch?v=2xDJ28Oe...

    John Smith -

    I got a 4 TB Seagate Barracuda HDD as a replacement for a client. (Going for capacity over speed.) Does anyone know if it will fit? It’s definitely fatter than the other HDD/SSDs I’ve installed before.

    David -

    There needs to be more added to cover the first part of re-assembly. To connect up my SSD, I needed to remove screws that held in place the black plastic to the left of the drive bay. This was only way to get the added space needed to connect the SSD to the drive cable. I also connected the SSD first, then attached the rubber bumpers, simply to give me more room to maneuver the drive next to the connector. All in all, yes, a person well familiar with tearing down iMacs could do it in an hour or so. But frankly, the design of this iMac is a total horror show when it comes to repair or replacement of parts, especially given its reliance on glue and adhesives. Gee, just like other Apple products.

    Ben Myers -

    Ben, after you replaced the HDD with SSD, did you have any fan issues on the A1418 model iMac? Thinking of doing this but I’ve been reading for hours and seeing mixed reports about thermal sensors.

    Christopher Henley -

    This iFixit tool (Opening Tool (Öffnungswerkzeug)) will be your best friend when it's time to install your new 2.5" hard drive. Simply hook the tool to the back top corner of the iMac SATA adapter, connect your hard drive loosely to the SATA ports and use the tool to pull the SATA adapter forward into the hard drive.

    iannai29 -

    After replacing the hard drive. All went well BUT -now my mic does not work. It's the single hole on the bottom. Any ideas anybody?

    Paolo Alberto -

    Did you notice step 14 in the guide to replacing the adhesive strips?

    roberttrevellyan -

    Please update the end of this guide, pointing the customer to the guide for replacing the display adhesive strips. You provide a single kit for this procedure, and the customer has to figure out that they must follow two independent guides, in order to successfully complete the installation.

    Lewis -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Evan Noronha

Mitglied seit: 06/02/15

219164 Reputation

34 Kommentare

What type of SATA SSDs are compatible with iMac? I don't want to buy the kit because I have the necessary tools, but I'd like to know which brand of SSDs work the best.

Avery C. -

>Will take any SATA SSD.

>On a mac with a fusion drive, it just removes the spinning drive from the mix, leaving you with a separate 28gig or 128 gig SSD drive that will appear on your desktop along with the newly installed SATA SSD.

>NO TEMPERATURE monitor is needed. This generation of iMacs has done away with the propietary temp sensor. It just relies on S.M.A.R.T. tech now.

robert Seith -

Does the screen stick back on with the same adhesive or do you have to reapply new adhesive? If yes, does it come in the kit?

Rick Hahn -

You have to apply new adhesive. Go slow and careful, it’s really not hard at all.

robert Seith -

Will this work similarly for an iMac with a fusion drive? -> (what about upgrading the ssd portion?) Will there be a guide for that in the future?

Lucas -

The 1TB fusion drive is simply a 1tb standard SATA spinning drive combined with a separate 28gig blade SSD. The blade SSD is much harder to get to, but when you replace the 1tb SATA drive with an SSD, you then have access to both drives, the 28gig blade SSD appears on your desktop to use and format as you wish, and you then have the newly installed SSD to use and format as you wish.

robert Seith -

Is the temperature probe/OWC cable nescessary for the Imac to register temps from a 3rd party SSD? I'm thinking about changing the 1TB hdd for a Samsung EVO SSD

Maurits K -

No temp sensor is used on these 2017 models. Put in the new drive and you’re good to go.

robert Seith -

I'm planning to remove the Fusion Drive from the iMac 4K and replace it with SSD blade!

Is that possible?

How much does it cost?

thanks:)

flyer13 -

Is there any posibility to replace the normal 1tb HDD by a NVMe SSD like the FusionDrive Model has?

thanks

Kevin Braun -

Only if your iMac shipped with an SSD or Fusion drive.

roberttrevellyan -

If the iMac is originally SSD-only, can this procedure be used to add a SATA second drive?

afwalton -

Can I replace the 1TB HDD to 2TB HDD? Will it still work as Fusion Drive?

And do you need a iMac specific model HDD or whatever brand of HDD?

Way White -

As far as I know, the fusion drive models actually have a HDD and a separate nvme SSD. 2tb upgrade will work.

Joseph Craig -

If we replace the data drive with a new SSD drive will the connections be the same? or do we need to buy some sort of adapter plug?

Scott Nejedlo -

Vendéis la espuma que paga la pantalla de nuevo o donde puedo conseguirla?

Alejandro -

Vendéis el sellamiento que vuelve a pegar la pantalla de nuevo?

Alejandro -

Do I need to clone my Drive before or is it possible to install a fresh Version of MacOS without cloning my Drive? Would prefer a clean install but I am not sure if the Setup will start on the new SSD.

Christian B -

You can use internet recovery to do a clean install without cloning the original drive. After recovery mode loads, format the new drive and then continue with the installation.

roberttrevellyan -

I decided to install the latest macOS to the new SSD connected to my main iMac using an external HDD case I had. After swapping the new SSD into the project iMac I just turned it on, waited for the new SSD's initial startup (1-2 minutes) and everything looked like a new computer.

Dave -

Hello! Is the procedure the same with a native apple equipped 256 ssd drive? ( as upgrade from apple store )

thanks .

Antonio

antonio-v -

I have a 2017 iMac 21.5” with Retina, Serial Number C02WN5FQJ1G5

I upgraded to an SSD and increased the ram. I cracked the screen glass during the reinstall. I have searched and can only find a complete display for around $300. The display is working fine. I only need the glass. Can you advise if any of the older model’s screen glass would fit.?

dbechler51 -

Ich habe bereits die neue SSD eingebaut ohne die vorher mit der alte zu Klonen. Besteht jetzt eine möglichkeit im bereits eingebautem Zustand die zu Klonen?

laios vangelis -

Amazing difference. Thanks for the guide—everything worked great. After cloning my old hard drive, putting it all together was a piece of cake. I took my time and didn’t rush, and everything came apart and went back together just as the guide said. Couldn’t be happier. I feel like I’ve got a brand new machine. Wouldn’t have felt comfortable without following something like this. Thanks!

David -

Wow, what an improvement in performance! It’s like a totally different computer. I should have done this ages ago. Actually, they never should have sold the device with the original slow hard drive.

This is about as easy as it gets with iMac upgrades. The hardest part is scraping off the old adhesive. Also, be sure not to cover up the microphone when you add the new adhesive strips!

Stephen -

I am trying to replace the 1TB HDD on a Retina 4K Display (2017 iMac 21.5" with a Crucial 1TB SSD.

— Booted into Recovery Mode to use Terminal commands to split the two drives into a 28GB blade SSD and a 1TB HDD

— Opened up the iMac and replaced the HDD with the 2.5" SSD

— Booted the iMac from a macOS 12.5 installer drive and tried to format the SSD using Disk Utility. But whether I formatted it as HFS+ or APFS, it would fail validation (via First Aid)

— To test if it was a bad SSD, I connected the SSD to another Mac running macOS 12.5 and reformatted the drive successfully as either HFS+ or APFS. I then installed macOS 12.5 on the SSD and booted the Mac from the SSD. I also booted the iMac from the SSD in an external enclosure. So I know I have a good SSD that WILL boot this iMac

— However, when I connected the SSD to the iMac’s internal 2.5” bay it would not “see” the above SSD and obviously would not boot — However, it DOES “see” the original 1TB  HDD

Why is this iMac have a problem with this SSD?

eogold -

Sounds like maybe the NVMe drive needs to be wiped to get rid of any record of the Fusion drive setup.

roberttrevellyan -

To be clear, this iMac came with a 1TB Fusion Drive.

eogold -

My iMac did not come with a 2nd drive from the factory. Would I be able to add one?

Jason Kinder -

This guide was excellent and I was able to install a new SSD without problems. I used a Western Digital 1TB WD Blue SA510 SATA Internal Solid State Drive SSD WDS100T3B0A. I purchased the iFixit adhesive strips and used my well worn iFixit iMac tools for this repair.

Thank you for making this difficult job so easy.

Dave -

I done all this when i tryed to test and put power on… nothig hapend, black screen, nothing?

Harry Uggeldahl -

Just picked up a secondhand 2017 iMac with a 1tb drive & 16gb ram.

Once it's up and running it's plenty fast, but not does boottime drag!

It'll guide will be perfect to bring my iMac up to speed!

Del Riordan -

I have to agree with other comments. For reassembly, simply saying to follow the comments in reverse is a disservice to your readers.

A short simple guide showing the steps for cleaning/prepping and putting the strips in place before reassembly would be advised.

or...

1. Clean areas of residual sticky residue.

2. Carefully attach strips, but don't remove their protective covers.

3. Follow the guide re. re-attaching the cables in Steps 19 and 20.

4. Remove the strip covers.

5. Replace the screen.

ECJohansen -
