iNet M1001 USB Port Replacement

Geschrieben von: Abdulateef Abola
  • Kommentare: 0
iNet M1001 USB Port Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show users how to replace the USB port of the iNet M1001. This guide is for you if the USB port of your iNet M1001 tablet has gone bad and now needs replacing. To complete this guide some soldering is required.

  1. RHcIK5PpHR13IyD4
    RHcIK5PpHR13IyD4
    Rd5CyCK1a4iOQO56

    • Remove the two 4.1 mm PH1 screws with a Philips screwdriver.

  2. l1iZrcLjr6DogcIM
    l1iZrcLjr6DogcIM
    SuDITJVf4m5Do2aj

    • Press the small suction cup on the back cover, and then pull the small suction cup to remove the back cover.

  3. UDLOObLRnIKA5Qyx
    UDLOObLRnIKA5Qyx
    AKWBvjMSUheuf5U3

    • Remove the two 3.8 mm PH1 screw with a Philips screwdriver.

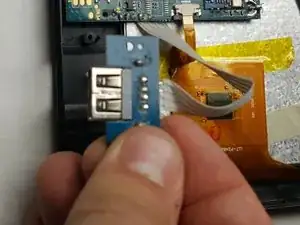

  4. oAbWPpkiVtORfQTY

    • Remove the USB port from it's plastic housing.

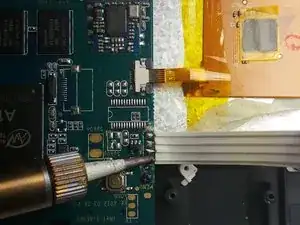

  5. mpMHfQNSLWRWO1mk
    mpMHfQNSLWRWO1mk
    iQVvJoYVclOZBBYf

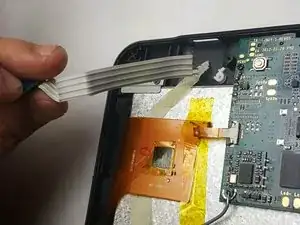

    • Desolder the white wire, and pull it off of the motherboard.

    • Check out this awesome guide for tips on soldering and desoldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
