iPad Mini 6 Rear Camera Replacement

If your display glass is cracked, keep further breakage contained and prevent bodily harm during your repair by taping the glass.

Lay overlapping strips of clear packing tape over the iPad's display until the whole face is covered.

Do your best to follow the rest of the guide as described. However, once the glass is broken, it will likely continue to crack as you work, and you may need to use a metal prying tool to scoop the glass out.

Apply a heated iOpener to the bottom edge of the device for 90 seconds to loosen the adhesive underneath.

While you're waiting for the adhesive to loosen, note the following:

The areas at the top and bottom of the screen are sensitive to prying.

There's a long circuit board attached to the screen that sits parallel to the left edge.

Once the screen is warm to touch, apply a suction handle to the bottom edge of the screen and as close to the edge as possible.

Lift the screen with the suction handle to create a small gap between the screen and the frame.

Insert an opening pick into the gap between the frame and the screen.

Leave the opening pick in place to prevent the adhesive from resealing.

Slide the pick along the bottom edge of the device towards the bottom-right corner.

Leave the pick in to prevent the adhesive from resealing.

Apply a heated iOpener to the right edge of the device for 90 seconds to loosen the adhesive underneath.

Rotate the opening pick around the bottom-right corner of the device.

Repeat the heating, slicing, and leaving opening picks for the remaining edges of the device.

With the bottom of the device facing you, pull the right edge of the screen up and towards the left edge of the device.

Rest the screen upside down and parallel to the frame before continuing.

Use a Phillips #000 screwdriver to remove the five 1.2 mm-long screws securing the frame bracket to the frame.

Use tweezers, or your fingers, to remove the display cable bracket from the frame.

Use the flat end of a spudger to pry up and disconnect the display cable's two press connectors secured to the frame.

Remove the screen from the frame.

The the flat end of a spudger to pry up and disconnect the battery's press connector secured to the frame.

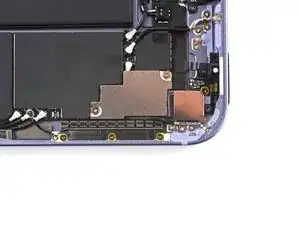

Use a Phillips #000 screwdriver to remove the two 1.2 mm screws securing the rear camera shield to the frame.

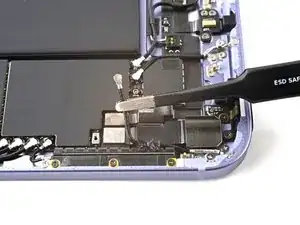

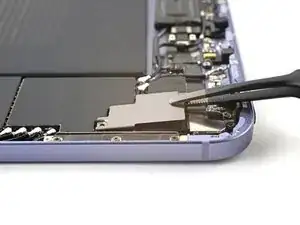

Use tweezers, or your fingers, to remove the rear camera shield.

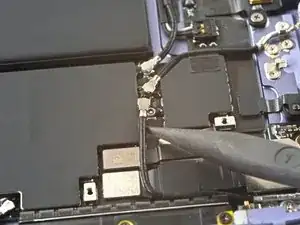

Use the tip of a spudger to pry up and disconnect the antenna's coaxial cable.

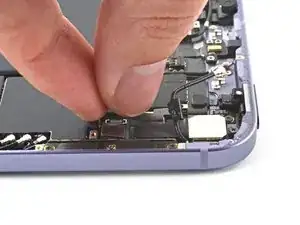

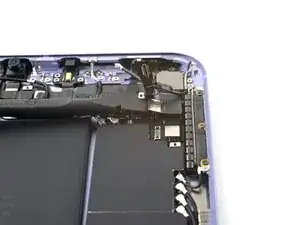

Use tweezers, or your fingers, to pull the coaxial cable away from the frame, making sure to separate the tape keeping it in place.

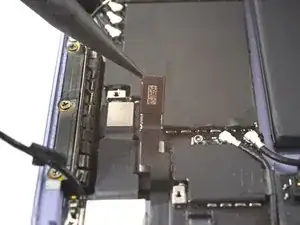

Use the tip of a spudger to pry up and disconnect the power button board's press connector.

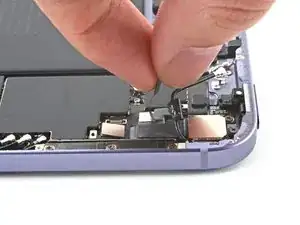

Gently peel back on the power button board's cable to separate it from the rear camera's press connector.

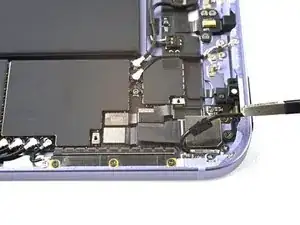

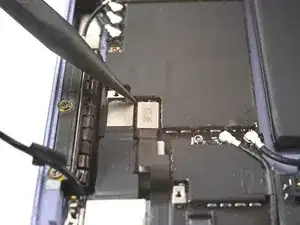

Use a spudger to pry up and disconnect the rear camera's press connector.

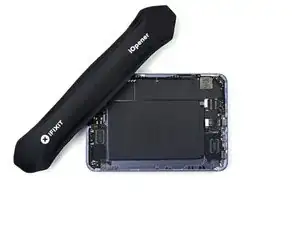

Apply a heated iOpener to the top-right edge of the device for 1–2 minutes to loosen the rear camera's adhesive underneath.

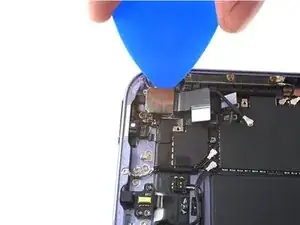

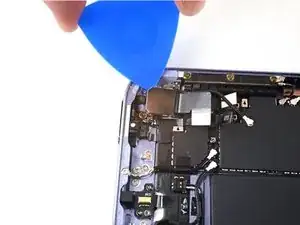

Insert an opening pick between the rear camera and the frame.

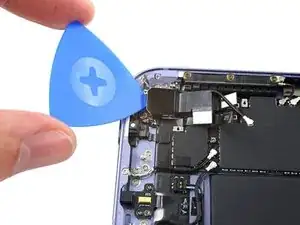

Rotate the pick around the perimeter of the camera to separate all of the adhesive.

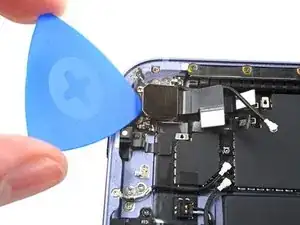

Pry up with the opening pick to fully separate the rear camera from the frame.

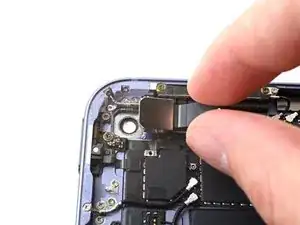

Use tweezers, or your fingers, to remove the rear camera.
