iPhone 11 Pro Front Camera Replacement Without Losing Face ID

Power off your iPhone before beginning disassembly.

Remove the two 6.7 mm-long pentalobe screws at the bottom edge of the iPhone.

Use a hairdryer or heat gun or prepare an iOpener and apply it to the lower edge of the iPhone for about a minute in order to soften up the adhesive underneath.

Pull the blue handle towards the hinge to disengage opening mode.

Position the suction cups near the bottom edge of the iPhone—one on the front, and one on the back.

Push down on the cups to apply suction to the desired area.

Push the blue handle away from the hinge to engage opening mode.

Turn the handle clockwise until you see the cups start to stretch.

Wait one minute to give the adhesive a chance to release and present an opening gap.

Insert an opening pick under the screen when the Anti-Clamp creates a large enough gap.

Skip the next two steps.

If you're using a single suction handle, apply it to the bottom edge of the phone, while avoiding the curved portion of the glass.

Pull up on the suction cup with firm, constant pressure to create a slight gap between the front panel and rear case.

Insert an opening pick into the gap.

Slide the opening pick around the lower left corner and up the left edge of the iPhone, slicing through the adhesive holding the display in place.

Re-insert your pick at the bottom edge of the iPhone, and slide it up the right side to continue separating the adhesive.

Gently pull the right edge of the display down slightly (in the direction of the Lightning port).

Insert your pick into the top-right corner of the phone.

Continue pulling the display down (toward the Lightning port) as needed in order to make a gap large enough for the pick.

Slide the pick to the top left corner and cut any remaining adhesive securing the display.

Pull on the small nub on the suction cup to remove it from the front panel.

Open the iPhone by swinging the display up from the left side, like the back cover of a book.

Lean the display against something to keep it propped up while you're working on the phone.

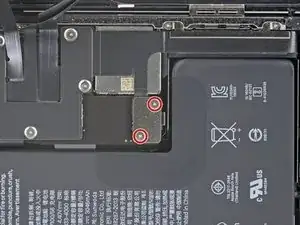

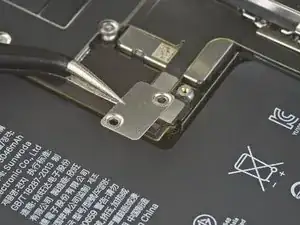

Remove two 1.3 mm long Y000 screws securing the battery cover bracket.

Remove the bracket.

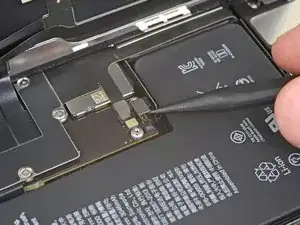

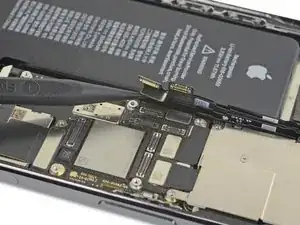

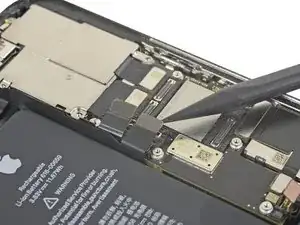

Use a spudger or a clean fingernail to pry the battery connector up from its socket on the logic board.

Bend the connector slightly away from the logic board to prevent it from accidentally making contact with the socket and providing power to the phone during your repair.

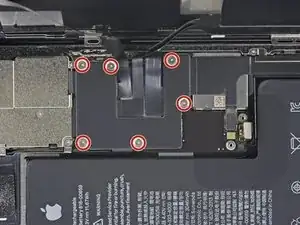

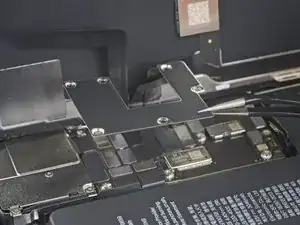

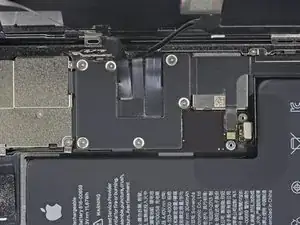

Use a Y000 driver to remove six 1.3 mm screws securing the logic board cover bracket.

Remove the bracket.

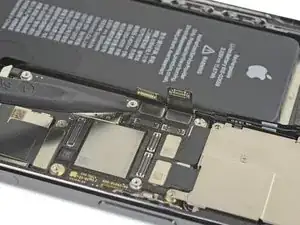

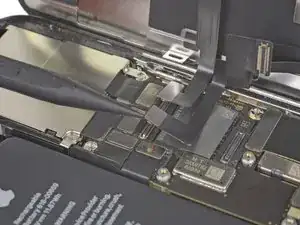

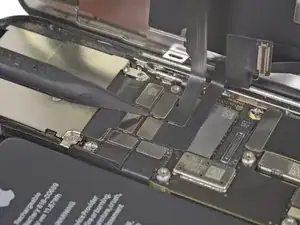

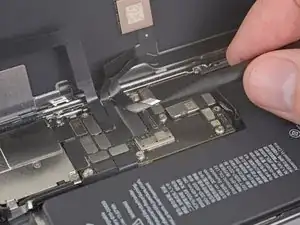

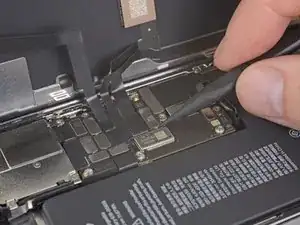

Use a spudger or a fingernail to disconnect the Face ID dot projector and sensor cables from their sockets on the logic board.

Gently push the Face ID cable connectors away from the logic board to access the selfie cam connector underneath.

Disconnect the selfie cam by prying its connector straight up.

In order to ensure replacing the camera will resolve the issue, it is strongly recommended that the replacement camera be tested first.

Connect the replacement camera by pressing the connector into its socket.

Press the battery connector into its socket.

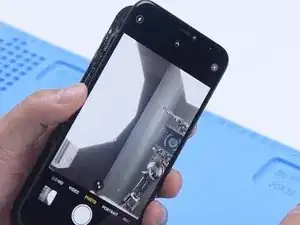

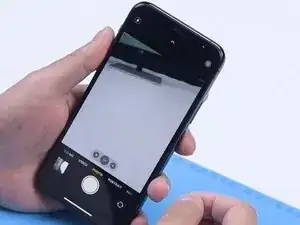

Turn on the phone and open the camera.

Verify that the front and rear cameras work correctly.

If they do, we can conclude that replacing the damaged front camera will resolve the issue and can proceed with this repair.

If the new camera does not fix the problem then the rest of this procedure will be of no help. Stop here and reassemble your phone.

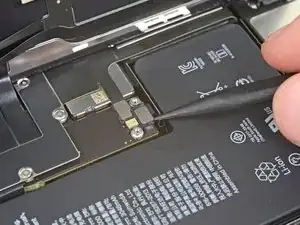

Use a spudger or a clean fingernail to pry the battery connector up from its socket on the logic board.

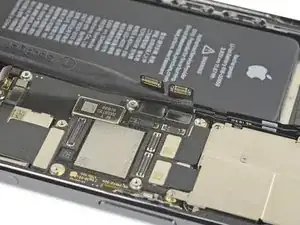

Bend the connector slightly away from the logic board to prevent it from accidentally making contact with the socket and providing power to the phone during your repair.

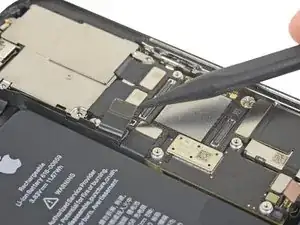

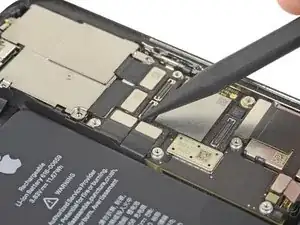

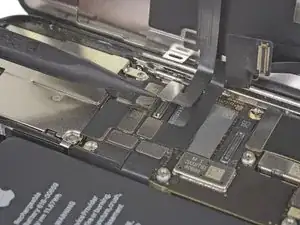

Use a spudger or a fingernail to disconnect the OLED panel cable connector.

Use a spudger or a fingernail to disconnect the front sensor assembly cable connector.

Use a spudger or a fingernail to disconnect the digitizer cable connector.

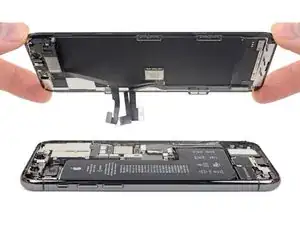

Remove the display assembly.

Gently push the Face ID cable connectors away from the logic board to access the selfie cam connector underneath.

Disconnect the selfie cam by prying its connector straight up.

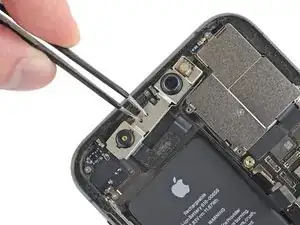

Slide the front camera assembly slightly down and to the left to free it from the enclosure.

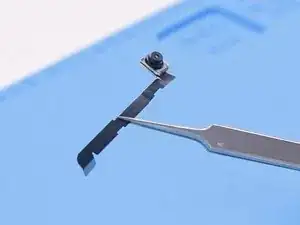

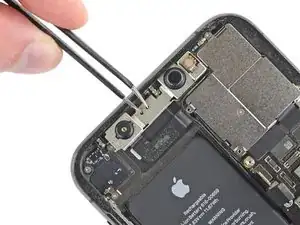

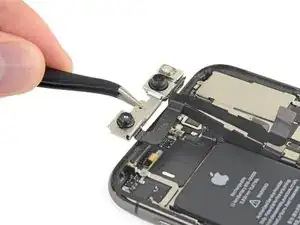

Remove the front-facing cameras.

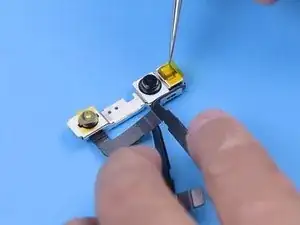

In order to prevent damage the infrared camera and dot projector, apply Kapton tape to both parts.

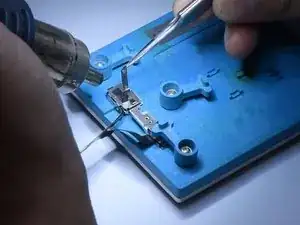

Turn the front camera module over and attach the assembly to a holder. Heat with a hot air gun at 100 °C to remove the tape.

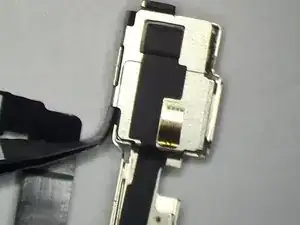

Grind the corner of the metal plate away with a Polishing & Grinding Pen or a Dremel multitool.

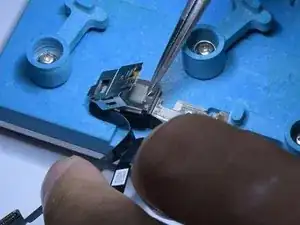

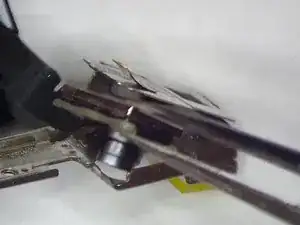

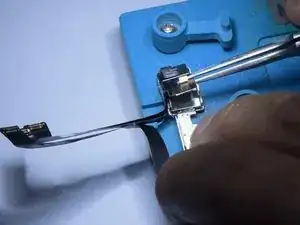

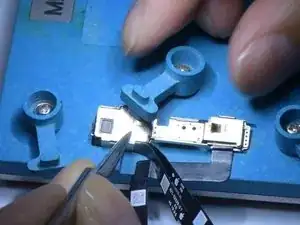

Pry up the metal plate with tweezers.

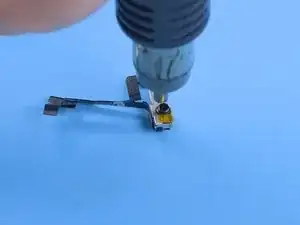

Heat the front camera with a hot air gun at 100 °C for 30 seconds to loosen the adhesive bonding it to the frame.

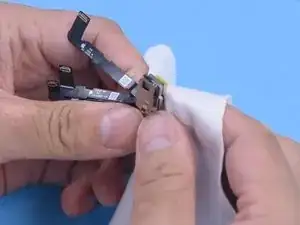

Cover the front camera with a lint-free wipe and press gently.

Remove the damaged front camera.

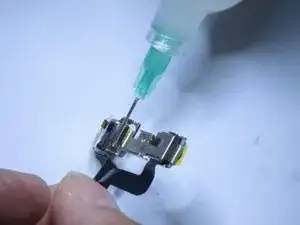

Apply adhesive to the edges of the frame surrounding the camera opening. Use it sparingly.

Install the new front camera, being careful to insert it squarely into the hole to avoid getting adhesive on the lens.

Apply adhesive to the back of the camera and press the frame firmly down onto the camera.

Place the front camera in the holder with a retainer placed on top of the glued assembly to hold it in place as the adhesive dries.

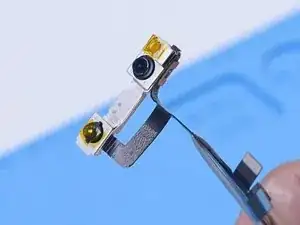

After an hour, remove the front camera module. The front camera has been successfully replaced. Remove the Kapton tape from the IR camera and dot projector.

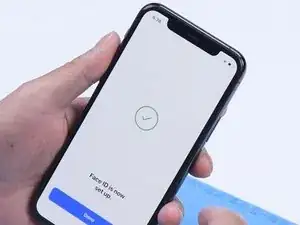

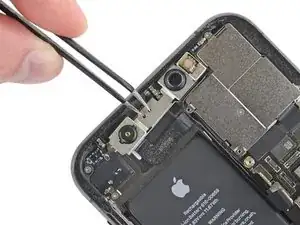

Install the front camera module and test. Turn on the phone. Both the front and rear cameras should work. Face ID should function too.
