iPhone 6s Plus Rückgehäuse austauschen

Schritt 1

Vor dem Beginn sollte der Ladestand des iPhones unter 25% liegen. Ein geladener Lithium-Ionen Akku kann anfangen zu brennen oder explodieren, wenn man ihn beschädigt.
Schalte dein iPhone aus, bevor du mit der Demontage beginnst.
Entferne die zwei 3,4 mm Pentalobe Schrauben, die sich auf beiden Seiten des Lightning-Anschlusses befinden.

Make sure you use the correct screw driver tip to remove these screws, which for the iPhone 6s Plus is the P2, otherwise you may strip the tip of the screw making it 10 times harder to remove. If once the screw is lose, it will not come off, use a magnet to remove it.

Miguel Perez - 30/12/17

If I do it by myself, will it damage the water resistant strip?

I know iphone 7 have it ,but I am not sure 6s plus have it.

Ganqian Zhu - 02/01/18

iPhone 6s has an adhesive gasket under the display, similar to the iPhone 7—however, it doesn’t add much in the way of waterproofing since the 6s has non-sealed openings in other parts of the phone. Water resistance on the 6s is primarily internal (seals around the logic board connectors, etc.). It may still be worthwhile to replace the adhesive on the 6s in order to help keep the display firmly seated so it doesn’t move/wobble at all under pressure, but the phone will continue to work fine whether you replace the adhesive or not.

Jeff Suovanen - 08/01/18

Salve nella procedura iniziale di smontaggio display con la ventosa non è menzionato il fatto di scaldare i lati del display per “ammorbidire” la striscia che incolla il display alla scocca.

Non è necessaria la cosa o è consigliabile ?

grazie

Hello, in the initial disassembling procedure with the suction cup, it is not mentioned how to heat the sides of the display to "soften" the strip that glues the display to the body.

Is not the thing necessary or is it advisable?

thank you

Daniele - 17/03/18

You’ve probably received your answer by now but for future enquirers, it does help the process of taking the screen off if heat is applied to the screen. If you have a hair Dryer use that on a low setting to heat the edges of the screen until it’s almost too hot to touch then slip very thin metal spudger around the edge to cut the adhesive. The carefully lift the screen with the help of the spudger and continue with your repair

Cheers Wayne

Wayne Lyell - 01/05/19

How do I know that the Battery has ZERO Charging Cycles on it when it arrives ? Is there a (downside) to Higher Capacity batteries ? It is INCREDIBLY DIFFICULT to maintain a “Zero Chinese Products Lifestyle”, so how do I know that I’m not getting a deficient Chinese battery, potentially a refurb. battery ?

integritybuilders - 18/03/18

When your repair is complete, you can use coconutBattery to check your new battery stats and cycle count. (A properly tested battery may already have a charge cycle or two on it.) Avoid higher capacity batteries on iPhones—they’re generally either gimmicks, unsafe, or both. As far as the quality of the part, that comes down to how much you trust your supplier and whether they guarantee the product.

Jeff Suovanen - 19/03/18

So I need to empty the battery to zero percent?

johnpatrickanat - 08/04/19

Below 25%, exactly as stated in the instructions. There’s no benefit to draining it further than that, and in fact you’ll slightly shorten the service life of the battery by draining it all the way to zero. Follow the instructions exactly as written—if you go off-script, you’re a lot more likely to break something.

Jeff Suovanen - 08/04/19

So my screen shattered completely and the screen first had colored lines on tge while right side then it went out completely. If i get an lcd and digitizer replacement I'd that oing to fix it

shellietheleo - 04/07/19

I would initially recommend a well-lit, comfortable area and placing the screws on a white piece of paper with the screw sizes written down (apparently there are magnetic mats, also). Also, I found placing the phone on a paper towel is good so that if a screw is dropped, it will lessen the likelihood of bouncing away.

Lou Fazio - 30/12/19

Schritt 2

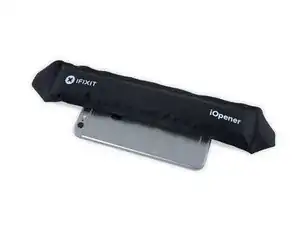

Optional kannst du die Unterkante des iPhones mit einem iOpener oder einem Fön für etwa eine Minute leicht erwärmen.
Durch das Erwärmen wird der Klebstoff, mit dem das Display befestigt ist, weicher und das Öffnen wird leichter.

This is important. I’ve serviced a lot of iphones/ipads for my family as a hobby in the past.

The adhesive was so tight, I cracked the screen trying to pull it/pry it off.

I highly suggest heating at least the bottom edge enough to soften the adhesive

garbage911garbage - 29/04/19

I didn’t have an iOpener, nor a heat gun; however I do have a small personal size hand pillow filled with feed corn. Two minutes in the nuke machine got it plenty warm, and smelled like fresh popcorn too.

bradiac - 22/06/19

I would suggest that you are not shy with the hairdryer. A high heat on the bottom of the phone for at least a minute, if not more, if required.

Mark Taberham - 20/02/21

Schritt 3

Beim Öffnen des Displays vom 6s Plus bleibt um den Rahmen des Displays ein dünner Klebestreifen. Wenn du den Kleber ersetzen möchtest solltest du einen Satz neuer Klebestreifen bereithalten, bevor du weitermachst. Alternativ ist es möglich, die Reparatur zu beenden, ohne den Kleber zu ersetzen – du wirst wahrscheinlich keinen Unterschied merken.
Setze einen Saugnapf in die untere, linke Ecke des Displays
Wenn dein Display stark zersplittert ist, dann überklebe es mit durchsichtigem Paketband, so dass der Saugheber haftet. Du kannst auch sehr starkes Klebeband anstelle eines Saughebers verwenden. Wenn das alles nicht hilft, dann befestige den Saugheber mit Sekundenkleber an der zerbrochenen Glasscheibe.

take out screws first!!

Yoav Karmon - 15/04/17

Make sure you use the right screw driver tip for i phone 6s Plus, which is the P-2. If the screw will not come off once is lose, try using a magnet.

Miguel Perez - 30/12/17

My cracked screen prevented the suction cup from sealing. SOLUTION: With a piece of clear packing tape across the screen, the suction cup will seal and pull.

Jim Cowles - 17/01/18

I broke my iphone screen in the first step!

Pierre Bertram - 06/10/19

This screen removal step got more wrestley than I anticipated. The adhesive is quite strong. I used a flat-ended razor tool that I have to begin the prying - I don’t know how I would have got it started without this.

Lou Fazio - 30/12/19

Ok - just got my battery replacement kit and even got the opening kit for added insurance just in case. Settled down to startwork after carefully cleaning my (immaculate) screen - no scratches or anything, with rubbing alcohol, removing screws and warming with a hair dryer, only to find the suction cup provided in the kit is worse than useless! It won’t stick to the screen well at all. When it does - it pops off at the lightest pull :-( Now what do I do to get this started?!

CoffeeCup -

Schritt 4

Ziehe mit etwas Kraft gleichmäßig den Saugnapf nach oben, um eine kleine Lücke zwischen dem Display und dem Gehäuse zu öffnen.
Wenn du zu stark nach oben ziehst, könnte das womöglich das Display beschädigen. Benutze nur soviel Kraft, wie es braucht, um eine kleine Lücke zwischen dem Display und dem Gehäuse herzustellen.

I had a shattered front glass panel so I could not get the suction cup to seal properly. I tried a couple of different ways to get good suction but to no avail. I eventually used a Stanley knife to pry up the corner so I could get the spudger into the opening.

John Architzel - 23/06/17

A really high quality packing tape over the entire screen will usually be enough to use the suction cup on a shattered screen.

djwooten - 11/07/17

I used a suction cup on each side to provide counter traction. I braced the iphone between my knees and pulled apart while my helper inserted the spudger

jkanne - 09/09/17

This was by FAR the most difficult part of this whole thing. I confess the spudger was not cutting it so I used a butter knife to get into the small opening first, then used the spudger to go around the screen.

Julie Sanchez - 27/12/17

Hey everyone, if you never have done this part before be aware there is an extremely strong adhesive around the lip of the screen and once again is extremely strong. I had to get a friend to insert the pry/pick into the small gap while I used one hand to brace the phone down and the other to pull the suction cup without it digging into my hand. Go slow, it took me 5 tries because I didn’t realize how strong the adhesive was.

bartmistrot - 13/01/18

I also had a badly cracked lower screen - that glass was actually threatening to pull off the phone in chunks during this step, even with packing tape. Resorted to @j2arch’s tip and inserted a utility knife vertically into the seam between the display and phone body. Was able to lever the glass enough to get the spudger in there.

Jason Augustyn - 22/01/18

I have replaced sevrel screens for my sister in law and my niece. The packing tape has worked every time and that’s with it Shattered and pieces already falling out. You have to make sure the packing tape goes to the edge of the screen but doesn’t touch the frame. I have the plier like screen remover and use that it is much easier to remove the screen by your self with that tool. I also have the little finger suction cup that comes with the kit here. I bought the plier suction cup tool When I had to replace the screen that had the pieces of the screen missing and I don’t regret spending the extra money for that it has made a world of difference. I do this as a hobby it’s not a job for me. The electric divide repair kit from Lowe’s is also a very good kit to help. If you’re only going to do it once the kit that comes with the package is a great deal from ifixit. Well worth the money to spend the little extra to get the kit if you all ready don’t have the tools.

Brent - 14/03/18

If you try to use the spunger near the home button and try to pry it can crack your screen. This happened to me.

Jeffrey - 22/11/18

Same thing happened to me. This should be a big warning in these steps. If you have a small to moderate crack in you screen, but you weren’t planning on replacing the screen at the same time as another repair inside, there’s a risk of damaging the screen further and making it inoperable.

DW7ACCT -

I found it easiest to use two suction cups. One on the front as directed, and a second one on the back. Give the spudger to your assistant, and have them slip it in place while you pull the display from the case.

gordojenkins - 07/07/19

I gave up with the suction cup as it wasn't working for me with a cracked screen. Having heated the bottom of the phone with a hair dryer with a high heat for a good minute or so, I used a safety scraper (essentially a razor blade in a holder) along the bottom of the phone to separate the screen from the body of the phone. I used the scraper vertically between the bottom of the screen and the phone body and levered it sufficiently so that I could fit the spudger between the screen and the phone body. My experience when I first used the spudger around the frame was that the cracks in the screen caused the screen glass to separate from the frame, so I had to re-do it and ensure that the screen frame was separated from the phone body.

Safety scraper:

https://www.amazon.co.uk/Unger-CD170-Win...

Mark Taberham - 20/02/21

Schritt 5

Die sicherste Stelle, um das iPhone zu öffnen, ist am Display über der Kopfhörerbuchse.
Während du noch am Saugnapf ziehst, führe das flache Ende eines Spudgers in die Lücke direkt über der Kopfhörerbuchse ein.

This was by far the hardest part of the repair for me. Getting leverage while finding a way to prod with a spudger is a challenge in coordination. I used a second spudger with point holding the phone down by the headphone jack, with the other end of the spudger anchored to my desk.

drpotter - 12/07/17

When warmed, the suction cup was useless. Using the tip of a knife blade, was able to get it separated enough to insert spudger.

hutland - 09/02/20

For me this was the most time consuming task. I used a hair dryer for heating. I found a very tight adhesive. For a moment I thought of abandoning my efforts and take the assembly to a professional repairman. But as they say, patience is a virtue.

After fiddling for about 20 minutes, I achieved a barely noticable opening. So I decided to change the strategy. Instead of applying heat all over the base, I preceeded with small steps with heat concentrated near the opening. I applied intense heat only for about 15 to 20 seconds and immediately working with spudger. It took about an hour to completely open the case. It worked.

Thanks for reading.

- Mr Gamma

Gamma Pailvan -

I also struggled with this step. Lots of heat, 3 different suction cups, I finally could see a small gap... much too thin to fit even a piece of paper into. A video on another site said it was the easy way. I used a sharp craft knife barely into the seam between metal and glass and pried slightly. And it started up. Still a pain freeing the rest of the adhesive. Perhaps the adhesive really sets up over the course of 5 years? I have it hinged open now, so onto the next steps.

Mark Tollefson -

Schritt 6

Drehe den Spudger, um die Lücke zwischen dem Display und dem Gehäuse zu vergrößern.

just changed the screen, but due to the tape along side the screen , it is best to heat a little so the glue losses and you can get the screen off better, like indicated

Bart Blanckaert - 13/03/18

Schritt 7

Während du immer noch leicht den Saugnapf nach oben ziehst, bewege das Ende des Spudgers unter die untere, linke Ecke vom Display.

Schritt 8

Führe die Spitze des Spudgers an der linken Seite des iPhones zwischen dem Display und dem Gehäuse hinauf.

Schritt 9

Führe das flache Ende des Spudgers unter der rechten Ecke des Displays ein.
Bewege den Spuger die rechte Seite hinauf.

Schritt 10

Benutze ein Öffnungswerkzeug aus Plastik, um das Gehäuse unten zu halten und das iPhone zu öffnen.
Entferne das Display nicht vollständig, sonst wirst du die Datenkabel, die mit dem Display in der Nähe der oberen Kante verbunden sind, beschädigen.

Schritt 11

Ziehe ein Stück des Saugnapfes hoch, um ihn vom Display zu lösen.

Remember to apply the screen gasket on the re-assemble. The gasket is provided in the kit but not mentioned here on the instructions.

Won Hong - 07/01/18

There’s a link to the entire gasket replacement procedure in Step 21.

Jeff Suovanen - 08/01/18

Schritt 12

Greife das Display vorsichtig und öffne das iPhone, indem du das Display an den Befestigungen am oberen Ende drehst, um das iPhone zu öffnen.
Öffne das Display zu ungefähr 90° und lehne es gegen etwas, um es während du arbeitest gestützt zu halten.
Öffne das Display nicht mehr als 90° – es ist immer noch am oberen Ende des iPhones befestigt. Die Kabel können sehr einfach reißen.
Füge ein Gummiband hinzu, um das Display sicher an seinem Platz zu halten, während du arbeitest. Das beugt Schäden an den Displaykabeln vor.
Notfalls kannst du eine ungeöffnete Getränkedose benutzen, um das Display zu stützen.

if the display cables are damaged how can you tell ?

Smiley McSmilebot - 22/01/20

In theory, I like the idea of propping up the screen with a rubber band and box/soda can like this, but after ripping the FaceTime camera cable twice, I realize that this method puts too much stress on the cable because it places the screen so far back. Even in this photo, you can see that the cable is taut. I’d recommend just holding the screen with your free hand to put the least amount of stress on that cable as possible.

Ben Estabrook -

Schritt 13

Entferne zwei Kreuzschlitz-Schrauben, mit denen die Abdeckung des Akuanschlusses am Logic Board fixiert sind. Sie haben folgende Längen:
Eine 2,9 mm Schraube
Eine 2,3 mm Schraube
Behalte während der gesamten Reparatur deine Schrauben gut im Auge, damit jede einzelne beim Zusammenbau auch dorthin zurückkehrt, wo sie herkommt. Die falsche Montage einer Schraube kann zu irreparablen Schäden führen.

FYI - I used some blue painters tape wrapped around a piece of cardboard to hold the screws and brackets in place, in order, so they did not get lost. Some of those screws are MICROSCOPIC so be careful!

I also suggest having very good lighting, even a camping headlight for hands-free well lit work space. You will thank me later :-)

Julie Sanchez - 27/12/17

Use the bit labeled “PH000”.

Joe Teichert - 04/03/18

PH000 bit just wants to free-spin in the 2.3 mm screw. no bite in the head at all. had no difficulty removing the 2.9 mm screw with the same Phillips. had to abandon battery replacement effort.

Benjamin Stalcup - 07/03/18

For this part, neither PH000 or Y000 worked. Technically, it’ll set you back 31$ because you will need the PH00 screwdriver for this part, and the part where you need to open the screen. They have ph00 screwdrivers in every hardware store and even ifixit.com. just know that they put the wrong screwheads for you

Jack Daniel - 18/03/18

Do not lose track of which hole these screws go into. They MUST be put back into the correct hole that they came out of. If not, you will get the dreaded “long screw damage” on the mainboard, and that will be the end of the show.

Just remember where these screws go, and it will be fine.

Harry McDow - 25/04/19

Ended up employing a Philips #0 from a regular jeweler/precision kit on the 2.3mm screw. Bits seem a bit off for this step.

Vance Bell - 17/04/20

Schritt 14

Entferne die Abdeckung des Akkuanschlusses.

Does it matter if the brackets arent put back in the phone? I bought a used phone and brackets are missing. Thanks!

Coupon Crazy - 01/06/18

Auch die Abdeckung ist angeklebt. Also mit etwas Vorsicht und Geduld rangehen.

eckhardd@icloud.com - 17/12/20

If you have forgotten your High School German -

The cover is also glued. So take some care and patience.

Glen Paetz - 31/03/21

My bracket actually has a black wire connected on the underside that is attached to the metal bracket (with screw) below it in the picture. I decided to leave it on and just move it to the side.

Victor Ng-Thow-Hing -

Schritt 15

Heble den Akkustecker mit dem spitzen Ende eines Spudgers oder mit einem sauberen Fingernagel vorsichtig von seinem Anschluss auf dem Logic Board.

Schritt 16

Drücke den Akkustecker vom Logic Board weg, so dass es während der Reparatur nicht zu einer unbeabsichtigten Verbindung mit dem Anschluss kommt.

When putting the new battery in, make sure to line up the plug and not to the top of the battery… our battery was smaller so the plug would NOT have lined up if we used the top of the battery. ALSO, the plug was NOT 90 degrees so we had to finagle the plug. Also, make sure there is a clear CLICK when you plug in the connector or it may not work. Ours went in but guess didn’t go far enough so we had to take the screen off and push it harder until we heard the “click” then it worked fine.

Won Hong - 07/01/18

Schritt 17

Entferne die folgenden Kreuzschlitz-Schrauben:
Drei 1,3 mm Schrauben
Eine 1,6 mm Schraube
Eine 3,0 mm Schraube
Während der Wiedermontage ist es wichtig, diese 3,0 mm Schraube wieder in die obere rechte Ecke der Halterung zu schrauben. Wenn du sie irgendwo anders platzierst, kann das Logic Board beschädigt werden.

I really don't see value in removing screen use box and rubber band keep at 90 degrees.

John Parker - 16/03/17

I leave screen on as well for this. - Tho I prefer a 45 degree lean.

Thor - 22/07/17

I just changed my battery and also left the screen attached. I was lucky enough to get all 3 adhesive battery strips out clean so I didn’t have a struggle with the battery coming out. If I was going to need to get rough with it I was going to take the screen off at that point.

Michael Gross - 03/10/17

To keep track of screws, draw a quick outline of the display cable bracket/cover, with five dots where screws should be. Drop the screws on the corresponding dot. Helps if you use magnet pad.

Christa - 23/06/18

Better yet, print out the pictures from the iFixit website, and use clear tape (“Scotch tape”) to TAPE the screws onto the place in the picture where they belong.

Tom - 28/08/18

Which screwdriver from the kit do I use for which screw?

Shiva Sharma - 14/07/18

I made a mistake and unscrewed the screw just north north west of the one circled in yellow. Of course I lost the screw. Can anyone give me any guidance about this? what does the wire connected to it do? What is the size of the screw, in case I have to replace it?

P.S. This is another reason to consider the possibility of NOT removing the screen just to replace the battery: removing the screen presents a additional possible headache, especially for people like me with bad eyesight who probably shouldn’t be doing this in the first place.

Tom - 28/08/18

I didn’t think this was necessary, bit I see it relieves stress on the front-facing camera and sensor cable connector; I did not disconnect the display connector nor remove the display screen.

Lou Fazio - 30/12/19

I second this finding. I too did not remove the screws nor the bracket. The cables look a bit stretched, but certainly not strained.

-Gamma

Gamma Pailvan -

This step of separating the two parts of the phone deserves careful consideration. In my case, I had propped up the display assembly with a box and rubber bands. However, only 2 of the battery adhesive strips came off easily. The effort to remove the battery with the display assembly attached was not a good move on my part. I jarred the ear speaker cable and after reassembly I had no camera or working ear speaker. Taking off these 5 screws and removing the three cables is not difficult. My suggestion: is you have ANY trouble removing the 3 battery adhesive strips, STOP, separate the two components, and then continue with the battery removal. Don’t struggle removing the battery with the display assembly attached. (I replaced the ear speaker cable, and all is working now)

Richard Perl - 15/02/20

Thanks for this tip! I am having a really hard time removing this plate because one of the screw heads are stripped. So I’ll try removing the battery adhesive strips first to see if I can get the battery out without removing the screen.

nathanfunk - 27/06/20

Use dixie cups and label them for each part you take out. You can stack the dixie cups to keep them in order.

Bradley Nolen - 26/06/20

I skipped this for the battery removal, but when I went to replace the seal, I had to remove it anyway.

dgol69 -

I lost the bottom left screw of the five in this step - anyone know if it’sgoing to cause a problem? ‘m going to go ahead and put thephone back together anyway - wil report back withresult

CoffeeCup -

OMG…. SO excited! It works! Seems that missing screw wasn’t an issue. The reason I’m so excited is, I’m a senior and have bever attempted anything like this before and was worried I’d mess it up, or it just wouuldn’t work for whatever reason. I know I never would have tried if it weren’t for finding this site, the great service, parts to do it and the videos/guides. Thank you so much ifixit. :-)

CoffeeCup -

I changed the battery, without removing the screen, when I closed the phone the front camera and speaker no longer work.

Mr T -

Schritt 18

Entferne die Abdeckung der Displaykabel.

Be careful on this step: with my iPhone, one of the connectors (the home button/fingerprint sensor) was stuck to the underside of the bracket and I almost strained its cable.

kevin - 15/02/21

Schritt 19

Achte darauf, dass du nur den Stecker selbst und nicht die Buchse auf dem Logic Board abhebelst.
Mit einem Öffnungswerkzeug aus Plastik kannst du die Frontkamera und den Sensorkabelstecker abziehen.

FYI, in the video she uses the spudger for this but I think either one will work.

Julie Sanchez - 27/12/17

I found prying from the right to be better

Lou Fazio - 30/12/19

Is there any need for this step if only the Battery is replaced

mrrreid - 29/04/20

I don’t recommend using the spudger for this as you can do more damage that way. I scratched the black square thing underneath.

Laura Houghton - 05/08/20

I managed to remove the battery without disconnecting and removing the display first. This avoids possible difficulties in these steps (see below).

One has to be careful that, while fighting with the battery strips, the display remains in its 90º position

alfasw33 - 22/03/21

Schritt 20

Löse das Touchscreen Kabel mit einem Öffnungswerkzeug aus Plastik von seinem Stecker auf dem Logic Board, indem du es gerade nach oben hebelst.
Wenn du das Kabel wieder verbindest, drücke nicht in der Mitte des Steckers. Drücke erst an einem Ende, dann am gegenüberliegenden. Beim Drücken in der Mitte des Kabels kann der Stecker verbiegen und beschädigt werden.

Thanks you i fix it

God Hand - 28/10/17

“When reconnecting the digitizer cable, do not press the center of the connector. Press one end of the connector, then press the opposite end. Pressing in the center of the connector can bend the component and cause digitizer damage. “

The following note above was so helpful. I was speeding through the process of getting things back together, since it seemed easy to connect the digitizer cable, but I kept pushing it in the middle and I wouldn’t connect. Until I read through this step and realized it was easier if I would’ve connected one side and then the opposite side right after.

Jeffrey Robinos - 28/09/18

Don’t be too shy when pushing the ends of the digitizer connector back to place. If it does not connect properly, you might face the “half backlight” problem, even if you did not kill any LCD filter. Also check carefully, that you don’t clamp parts of the sticky sealing material placed around the connector inside the connection area.

Norbert Andreas Richartz - 16/11/18

This part was a very frustrating experience for me. I thought that my replacement screen was just poor quality, as it worked when it wanted to work. Pressing home/power repeatedly sometimes brought it back, charging to 100% also brought it back. The actual problem was that it is very easy to get some of the gasket material caught in the connector, which I couldn’t see until I used my jeweler's loupe. I used 91% alcohol to carefully clean all of this off until all pins were shiny, and it took about 6 tries to get it right. However, the screen’s been running well for 2 days now. I already bought another screen replacement which I have for a spare as it was 100% not the problem.

chumblyf - 06/05/20

I followed all the steps, so the sound is missed. What could be happened? thanks a lot. Fabio Balbino

Fabio Balbino - 17/06/20

Schritt 21

Vergewissere dich, dass der Akku abgeklemmt ist, bevor du das Kabel in diesem Schritt trennst oder wieder anschließt.
Heble das Kabel zum Home Button/Fingerabdrucksensor gerade nach oben und löse es aus seinem Anschluss auf dem Logic Board heraus.

How much is this to replace?

Alistair knight - 18/02/17

And where could I buy from?

Alistair knight - 18/02/17

You can buy these at iFixit: iPhone 6s LCD and Digitizer - Original LCD

drgon - 23/02/17

After finishing the assembly I got the message “Touch ID cannot be enabled on this phone”. I found this connector was loose. Plugged it back in and that fixed it.

Bryan Province - 05/10/17

Thanks for the tip. Same thing happened to me, some leftover adhesive was in the way!

Lua Tech -

Always make sure to disconnect the battery before you do any work on the phone replacing any parts the digitizer or anything. And before you start make sure the phone is turned off you don’t want any power surges. If you also have a static electricity bracelet that also is a plus to use but isn’t a necessity just a nice piece of mind. Some cases you do need to use one so you don’t discharge static electricity to an electrical component and mess it up.

Brent - 14/03/18

Be very careful in this step. I noticed it’s very easy to tear the flex when trying to lift it out of its socket from the right side.

shoeib - 18/03/18

What is the cable and how is it connected/fixed to the motherboard between the bottom socket and the screw hole.

Mine came loose somehow?

Jason Engelsman - 16/07/18

I figured out my own question its the Wi-Fi diversity antenna cable. But how is it connected/secured to the motherboard?

Jason Engelsman - 16/07/18

i pressed on the center of the digitizer connection. and the bottom half of my screen didnt work. i then took that same front panel assembly and tried to install it on another old iphone 6s+ and i had the same issue.

can i still fix it?

what exactly is broken now?

alejandro rueda - 28/01/19

@mynameisoli Honestly this just sounds like a defective screen to me, but it’s hard to say for sure. Look closely at the connector at the end of the ribbon cable and check it for damage. If it’s slightly bent/curved, all the pins won’t make good contact in the socket. You can try bending it back so it lays flat, but you have to be very careful not to damage the connector or contaminate the pins with skin oils, so it’s tricky—and it may be harder to return as “defective” if you mess up the connector. So try this at your own risk. Apart from that, I would just return it and try a different display. Good luck!

Jeff Suovanen - 29/01/19

The 6s plus screen repair kit i bought has the wrong size cable here on the replacement part. SOL.

Alex Richardson - 07/03/20

Once I accidentally disconnected the display assembly cables before disconnecting the battery. Now the home button and fingerprint sensor doesn’t work. Any solution to this?? I have tried a different home button, even that doesn’t work.

a3roar - 06/06/20

I changed the battery on my iPhone and put all together again and charged it. When I pressed the home button the lock screen with my picture appeared and when I pressed it again the screen with the digits from 0 to 9 appeared. I was asked to enter my passcode, but when I did that nothing happened, the phone did not open.

What could be wrong? Is the home screen cable not fully connected or what could be the reason for this?

THORDUR JOHANNESSON -

Schritt 22

Entferne die Displayeinheit.
Beim Zusammenbauen ist jetzt ein guter Zeitpunkt, einen neuen Satz Klebestreifen um das Display zu kleben.

For instructions on home button swap out to the new screen you just installed, go here

iPhone 6s Plus Home Button Einheit ersetzen

Superior Office Systems - 05/12/17

Do you know whether the adhesive contributes to waterproofing, or just for stability/adhesion?

Christa - 29/01/18

@kitabel The iPhone 6s case isn’t waterproof, so I don’t think adhesive around the display is contributing anything other than stability. The 6s series does have some water resistance, but it’s mostly internal and not something Apple advertises.

Jeff Suovanen - 30/01/18

If you have a replacement adhesive for the display, you may need to install it before reconnecting cables to the components. If the adhesive wraps all the way around the display, it will be impossible to install it once the display is reconnected.

Matthew Olwell - 16/04/19

These instructions worked great for me. Thank you!

Chris Enloe - 21/05/19

Schritt 23

Löse alle Klebestreifen, die die Schrauben der Halterung der iSight Kamera verdecken.

If like me you are only wanting to clean out the speaker, you do not need to do this step. You can skip to step 50

Brad “Bradster48” Mason - 20/12/17

Mine had no tape there

Gustavo Delfino -

Schritt 24

Entferne die folgenden Kreuzschlitz Schrauben über der Halterung der Kamera:
Eine 1,9 mm Schraube
Eine 2,4 mm Schraube

Schritt 25

Entferne die Halterung der iSight Kamera.

When replacing the bracket be sure to get the other end of the NFC bracket included with the right hand screw.

Thomas Hayes -

Schritt 26

Trenne den Stecker der iSight Kamera von seinem Anschluss auf dem Logic Board.
Achte dabei darauf, dass du nur den Stecker und nicht den Anschluss auf der Hauptplatine heraushebelst.

If necessary, the sticky patch on top f the connector should be removed. Helped my case a lot :)

Alexander Leuschner - 08/08/18

Schritt 27

Führe das flache Ende des Spudgers zwischen die iSight Kamera und das hintere Gehäuse.
Nun hebelst du die Kamera vorsichtig aus ihrem Sitz heraus.

Schritt 28

Entferne die iSight Kamera.

Hi ,

Thanks a lot for your tutorial !

Can you explain how can we change the lens of the camera ?

Thanks ;)

rocofolie - 18/05/16

Schritt 29

Führe ein SIM-Kartenauswurf-Werkzeug in das Loch im SIM-Kartenfach ein.
Drücke, damit das Fach herauskommt.

Schritt 30

Entferne das SIM-Fach.
Wenn du das SIM-Fach wieder einsetzt, achte darauf, dass es so ausgerichtet ist, dass das Loch für den SIM-Auswurf unten ist.

Schritt 31

Entferne die einzelne 1,4 mm Kreuzschlitzschraube, mit der die NFC Halterung befestigt ist.

The silver end of the NFC bracket goes here. The gold floppy end goes under the camera bracket.

Thomas Hayes -

Schritt 32

Entferne die NFC Halterung.

Schritt 33

Entferne die beiden 2,7 mm Kreuzschlitzschrauben, mit denen die Halterung des Audiosteuerungskabels am Logic Board befestigt ist.

Schritt 34

Entferne die Abdeckung des Audiosteuerungskabels.

Wo kommt den der “6 s Plus Bluetooth Flex” überhaubthin bitte ?

Also "das = https://www.ebay.de/itm/123934065844

Mystery Shopper - 04/05/20

Schritt 35

Trenne das Audiosteuerungskabel, indem du den Anschluss gerade nach oben aus seiner Buchse aus dem Logic Board hebelst.

Schritt 36

Trenne das Mobilfunkantennenkabel, indem du den Anschluss gerade nach oben aus seiner Buchse auf dem Logic Board hebelst.

how do you plug this cable back in? any tips for lining up with the socket? i can't get it to stay :(

kapluni - 05/09/17

Hold the cable with your tweezers and line the connector up over the socket as perfectly as you can, and then press straight down on it with the flat end of your spudger. Should snap into place with a bit of force.

Jeff Suovanen - 25/01/18

My problem when I pull the cable in the socket i shocked bot of them pull togeher the cable and the socket in the logic board the small circle i cry how to fix pleasss help mee

Darrel Alan - 26/04/20

The cable broke instead of coming out of the socket. Oh well. GG

hiddenanddangerous2009 - 08/08/20

My phone doesn't have a cable running here

TJ Anderson - 31/01/21

Schritt 37

Trenne das Wlan-Diversity-Antennenkabel, indem du den Anschluss vom Logic Board abhebelst.

Schritt 38

Trenne das Netzkabel des An/Aus-Schalters von seiner Buchse auf dem Logic Board.

Don’t forget this guy when you’re putting it back in! you’ll have to undo a bunch of screws

Cassandra Vil - 28/06/18

Schritt 39

Trenne das zusammengeschaltete Antennenkabel des Lightning Connectors, indem du es vom Logic Board abhebelst.

This is not a Lightning connector - its a radio connector.

NorthernBigDummy - 06/02/18

Schritt 40

Trenne das Flachbandkabel mit dem Lightning Connectors mit dem flachen Ende eines Spudgers vom Logic Board.

From here you can skip ahead to step 50.

Mark Cousins - 10/12/16

Schritt 41

Fädle das Antennenkabel aus den beiden Clips an der rechten Kante des Logic Boards.

This is super vague. Doesn’t explain exactly HOW to remove the cable from the clips, like it does in step 44. Slightly damaged my cable because I didn’t know how to remove it or the nature of the clip.

Mason Rogers - 11/04/18

Schritt 42

Entferne folgende Schrauben:
Eine 1,3 mm Kreuzschlitzschraube
Eine 2,6 mm Kreuzschlitzschraube
Eine 2,2 mm Abstandsschraube
Abstandsschrauben werden am besten mit einem Schraubendreher für Abstandsschrauben oder passendem Bit entfernt.
Zur Not geht es auch mit einem kleinen Flachschraubendreher, du musst dabei aber aufpassen, dass du nicht abrutschst und umliegende Bauteile beschädigst.

Use can use a spudger in a pinch to dislodge the 2.2mm standoff screw. This was the most difficult screw in the phone. A Phillips bit will not work.

mechamster - 11/11/17

What do we call / name this bracket?

B. Jansen - 01/01/19

Schritt 43

Entferne die Halterung.

Schritt 44

Fädle das obere linke Mobilfunkantennenkabel aus dem ersten Clip auf dem Logic Board, indem du es unter dem Clip heraus und Richtung Akku schiebst.

Schritt 45

Fädle das Mobilfunkantennenkabel auch aus dem zweiten und dritten Clip auf dem Logic Board.
Löse das Mobilfunkantennenkabel vorsichtig mit der Spitze eines Spudgers vom mittleren Clip auf dem Logic Board.
Versuche nicht das Kabel zu entfernen, indem du an ihm ziehst, es kann ganz leicht zerreißen.
Damit das Kabel bis zu seiner Buchse auf dem Logic Board kommt, musst du es über das Logic Board und unterhalb des Flachbandkabels mit der Audiosteuerung entlang führen, so wie im ersten Bild zu sehen.

My clip in the middle is not removing no matter how hard i pry or what i do, any help??

David Gray - 12/06/20

Schritt 46

Entferne die letzte 2,0 mm Kreuzschlitzschraube direkt unter dem SIM-Kartenleser.

Schritt 47

Hebe das Logic Board vorsichtig am unteren Ende in der Nähe des Lightning Connectors an - aber entferne es nicht!

Schritt 48

Kippe das Logic Board nach oben, bis es senkrecht steht, damit du an den einzelnen Antennenanschluss auf der Unterseite herankommst, der sich in der Nähe der oberen Kante des Boards befindet.
Versuche nicht, das Logic Board jetzt schon ganz zu entfernen, da die Wlan-Antenne noch mit der Unterseite des Boards verbunden ist.

Schritt 49

Lege das Logic Board vorsichtig mit der Oberseite nach unten, der obere Teil sollte dabei auf dem hinteren Gehäuse des iPhone aufliegen.
Verwende das flache Ende des Spudgers, um das Wlan/Bloetooth-Antennenkabel von der Buchse auf der Rückseite des Logic Boards zu trennen.

Ugh, the socket connector separated from the back of the rigid cable. Two wires are still attached to the socket connector, but I’m guessing I’ll need to purchase a replacement WiFi/Bluetooth antenna cable at some point. I hope you sell these too?

NorthernBigDummy - 06/02/18

**Update** I used the tiniest drop of super glue with activator on both the connector and cable. It seems to be holding! Will reassemble and see if it works. Lucky for me, you sell the replacement cable for $14.99 if my cheap bastard fix fails :)

NorthernBigDummy - 06/02/18

**Update #2** Using super glue on the upper left wi-fi connector seems to have worked, both my bluetooth and wi-fi are working well post-repair.

NorthernBigDummy - 06/02/18

Schritt 50

Entferne das Logic Board.

Schritt 51

Verwende das flache Ende eines Spudgers, um das Flachbandkabel mit dem Lightning Connector vom Lautsprecher zu abzuschälen.

Schritt 52

Entferne die folgenden drei Kreuzschlitzschrauben von der Abdeckung des Taptic Engine:
Zwei 3,5 mm Schrauben
Eine 2,7 mm Schraube
Entferne die Abdeckung.

Schritt 53

Entferne die fünf Kreuzschlitzschrauben, mit denen der Lautsprecher am hinteren Gehäuse befestigt ist:
Zwei 2,7 mm Schrauben
Eine 2,5 mm Schraube
Eine 1,5 mm Schraube
Eine 1,7 mm Schraube

Schritt 54

Fädle das Wlan-Diversity-Antennenkabel aus seiner Gummimanschette.
Wenn du Schwierigkeiten hast, es an dem weißen Indikationsaufkleber für Wasserschäden vorbei zu bekommen, kannst du den Aufkleber auch vorsichtig zurückschieben, damit du besser herankommst.

This step isn't necessary. You can leave this cable in place.

Mark Cousins - 10/12/16

yes totally unnecessary to remove this or the board at all.

Smartfone NI - 02/08/17

Dégagez le câble d'antenne Wi-Fi diversity du clip du connecteur de mise à la terre (italique = description à vérifier !)

Apy Ben - 20/02/19

Schritt 55

Mit einer Pinzette kannst du jetzt das Wlan-Diversity-Antennenkabel vom Flachbandkabel mit dem Lightning Connector trennen.

Schritt 56

Entferne die letzten beiden 2,6 mm Kreuzschlitzschrauben, mit denen der Lautsprecher am hinteren Gehäuse befestigt ist.

Bei mir war da nur eine Schraube !

Boris Alt - 07/05/19

Beim mir ist da nur eine, Schraube. Auf dem Bild auch.

Matze Diamond - 28/01/20

Schritt 57

Hebe die Lautsprechereinheit mit dem flachen Ende eines Spudgers aus ihrem Gehäuse.
Entferne die Lautsprechereinheit.

If you’re following the quickest past, don’t pull it off, cable of Wi-fi Anten is still attached

Martin - 02/09/20

Schritt 58

Verwende die Spitze des Spudgers, um das Flexkabel der Taptic Engine vom unteren Flachbandkabel zu lösen.

Maybe it would be best to have people remove the screws first? Otherwise prying the flex cable (which is very thin and not super flexible) may result in it breaking from the Taptic Engine. Just a thought.

Kayne Caplinger - 21/08/19

The cable is plenty flexible, hence the name. ;) Remove the screws first if you like, but there’s no harm in doing it this way.

Jeff Suovanen - 26/08/19

Schritt 59

Entferne die folgenden beiden Kreuzschlitzschrauben, mit denen die Taptic Engine am Rückgehäuse befestigt ist:
Eine 3,1 mm Schraube
Eine 2,1 mm Schraube
Entferne die Taptic Engine.

Schritt 60

Ziehe das Klebeband über der Schraube ab, mit der das Flachbandkabel des Lightning Connectors am Rand des Telefons befestigt ist.

Schritt 61

Entferne die folgenden fünf Kreuzschlitzschrauben:
Eine 2,9 mm Schraube
Eine 1,9 mm Schraube
Eine 1,5 mm Schraube
Eine 1,6 mm Schraube
Eine 1,3 mm Schraube in der Unterkante des Rückgehäuses

Schritt 62

Bereite einen iOpener vor und lege ihn über die Unterseite des Telefons, um den Kleber aufzuweichen, mit dem das Flachbandkabel des Lightning Connectors befestigt ist.
Warte etwa eine Minute, bevor du den iOpener entfernst und weitermachst, damit der Klebstoff Zeit hat, weich zu werden.

Schritt 63

Schiebe ein Plektrum (Opening Pick) unter das Flachbandkabel zum Lightning Connector und schneide langsam den Kleber auf, mit dem das Kabel am Rückgehäuse befestigt ist.

Schritt 64

Fahre mit dem Plektrum weiter unter dem Flachbandkabel entlang.

Schritt 65

Heble das linke Mikrofon mit einem Plektrum vom Rand des hinteren Gehäuses ab.

make sure you don’t remove the little black plastic part that goes between the microphone & case, it was firmly attached to the left microphone.

Rhonda Tregay - 20/01/18

The instructions don't mention it, but the photo shows the microphone by the headphone jack also being eased back, which we did have to do; agree with Rhonda's comment, and separating those parts took persistence.

Matthew Dearden - 07/05/22

Schritt 66

Setze die Spudgerspitze in den Kopfhöreranschluss und wackle leicht, damit er sich von der Unterkante des Gehäuses ablöst.

Schritt 67

Entferne die Lightning Connector Einheit.
Wenn dein Ersatzteil nicht mit einer Dichtung für den Kopfhöreranschluss geliefert wurde, dann musst du mit einer Pinzette die Dichtung deines alten Teils ablösen und auf das neue Ersatzteil übertragen.
Benutze vor dem Zusammenbau einen Spudger, um alle Klebstoffreste vom Rückgehäuse abzuschaben. Du kannst diese Arbeit mit hochkonzentriertem Isopropylalkohol unterstützen.

Save the sealant rubber from the jack and the lighting connector if the new one does not have it.

István Borsányi - 16/05/20

Schritt 68

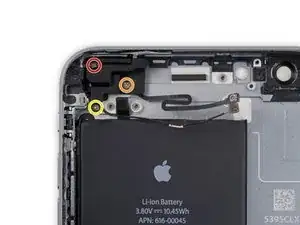

Entferne folgende vier Kreuzschlitzschrauben:
Drei 2,0 mm Schrauben an der Halterung der Einschalttaste
Eine 1,3 mm Schraube über der Halterung von Blitz und Mikrofon.

Flash/microphone bracket on the second (and first too) picture needs to go in the socket located on the frame’s top (therefore the top side of the bracket is not visible like in steps 23-27), not lay on top of the socket. I had to come back to this later during my reassembly.

domin8 - 19/12/17

Schritt 69

Entferne die Halterung von Blitz/Mikrofon

Schritt 70

Hebe den Blitz mit dem flachen Ende des Spudgers aus seinem Sitz im Gehäuse.

Schritt 71

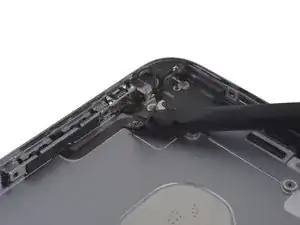

Löse das Flachbandkabel der Einschalttaste mit dem flachen Ende des Spudgers vom Gehäuse.

Schritt 72

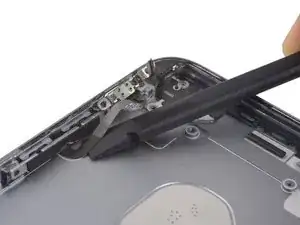

Setze die Spudgerspitze unter den Mikrofonteil des Flachbandkabels und hebele es vorsichtig vom Rückgehäuse.

Schritt 73

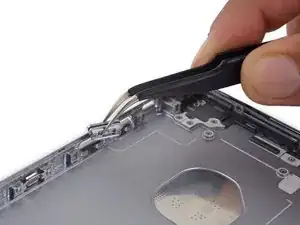

Schiebe ein Plektrum (Opening Pick) unter das Flachbandkabel der Einschalttaste und trenne das Kabel vom Rückgehäuse.

Schritt 74

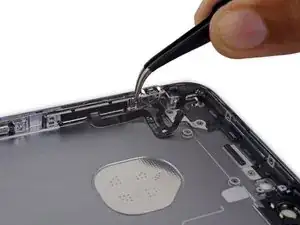

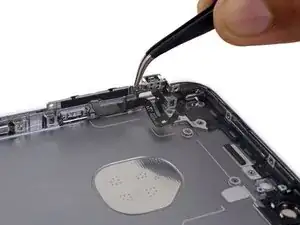

Entferne das Flachbandkabel zur Einschalttaste.

Schritt 75

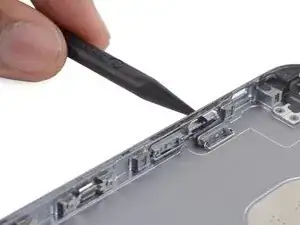

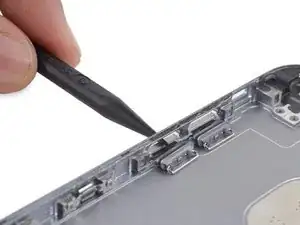

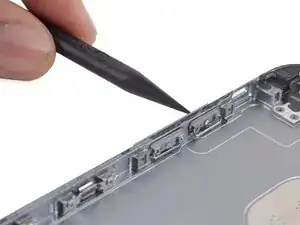

Drücke die Tastenabdeckung vorsichtig aus ihrem Sitz im Gehäuse.

Schritt 76

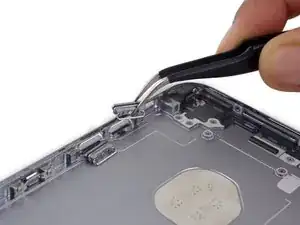

Entferne die Tastenabdeckung.

Schritt 77

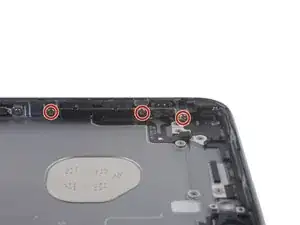

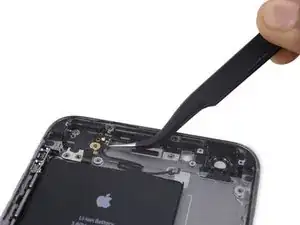

Die Mobilantenne wir von drei Kreuzschlitzschrauben gehalten. Drehe sie heraus:
Eine 2,7 mm Schraube
Eine 1,7 mm Schraube
Eine 1,3 mm Schraube

You need to remove a black sticker to reveal the 1.7 mm Philips screw (Orange circle on the picture).

jimmy_desertwolf - 16/02/20

Schritt 78

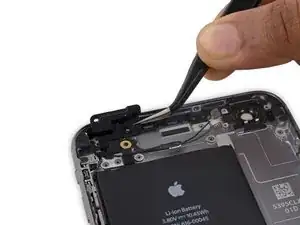

Entferne die Mobilantenne

Schritt 79

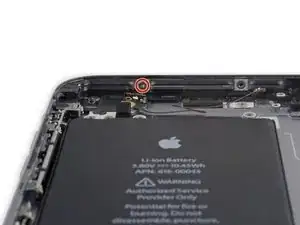

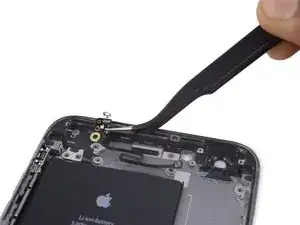

Entferne die einzelne 1,3 mm Kreuzschlitzschraube, die die Wi-Fi/Bluetooth Antenne am Rückgehäuse befestigt.

Schritt 80

Entferne die Wi-Fi/ Bluetooth Antenne.

Schritt 81

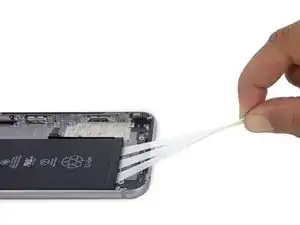

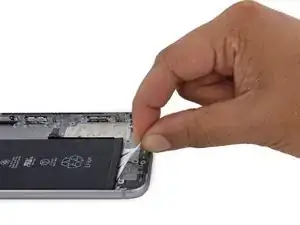

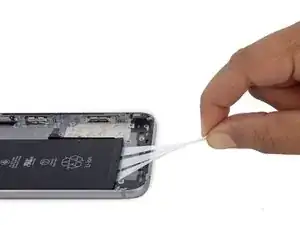

Ziehe die Enden der Klebestreifen am Akku mit einer Pinzette von der Unterkante des Akkus weg.

Schritt 82

Nimm alle drei Klebestreifen am Akku in eine Hand.
Achte darauf die Klebestreifen nicht zu verknittern, sonst wird es schwierig, sie herauszuziehen, und man kann sie nicht mehr glätten.

Schritt 83

Ziehe die Klebestreifen heraus. Halte sie dabei flach und glatt, bis sie ganz draußen sind. Am besten ist ein Winkel von 60° oder weniger.
Die Streifen dehnen sich auf ein Vielfaches ihrer ursprünglichen Länge. Ziehe solange bis alle drei Streifen wirklich ganz draußen sind.
Halte den Akku mit einer Hand fest, denn wenn sich die Klebestreifen vom Gehäuse lösen, könnten sie sonst den Akku herausschleudern.

Schritt 84

Wenn du alle drei Klebestreifen erfolgreich entfernt hast, dann gehe zum nächsten Schritt über. Ansonsten musst du wie nachfolgend beschrieben den Akku aus dem Rückgehäuse heraushebeln.
Erwärme einen iOpener. Lege ihn auf die Rückseite des iPhone direkt über den Akku. Du kannst auch ein Heißluftgebläse oder einen Haartrockner verwenden.

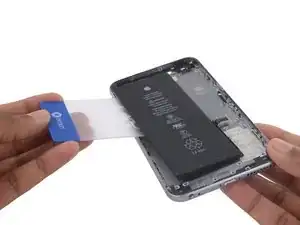

Nach etwa einer Minute kannst du das iPhone umdrehen und mit einer Plastikkarte die restlichen Klebeverbindungen unter dem Akku auftrennen.

Schritt 85

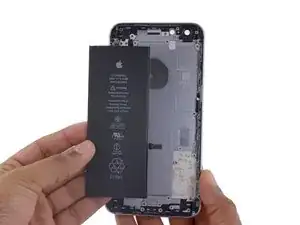

Entferne den Akku.

Schritt 86

Entferne die drei 2,4 mm Kreuzschlitzschrauben an der Halterung des Audiokontrollkabels.

Schritt 87

Löse das Flachbandkabel der Lautstärkeregelung mit dem flachen Ende des Spudgers ab.

Schritt 88

Entferne das Kabel der Lautstärkeregelung.
Beim Zusammenbau kommt zuerst die Lautstärketaste, dann der Stummschalter.

Schritt 89

Drücke die Tastenabdeckungen für die Lautstärkeregelung mit der Spudgerspitze aus ihren Schlitzen im Rückgehäuse.

Schritt 90

Entferne die Tastenabdeckung der Lautstärkeregelung.

Schritt 91

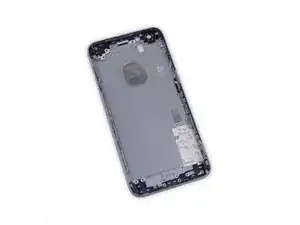

Nur das Rückgehäuse bleibt übrig.

At this point please check your replacement case and the left over case. Check if the brackets/clips on the sides are present on the replacement case. If not, remove from the left over case and transfer them to the replacement case. You will need these brackets/clips in order for the screen to sit tight on the phone.

Jammy Lee - 18/06/18

Does the plate for the apple logo need to be removed from the old housing and placed new housing? Not sure if the non OEM plate that comes with my new housing will interfere with anything like Apple Pay

wallace -

iPhone 6s Plus Rückgehäuse austauschen

Einleitung

Werkzeuge

Ersatzteile

6 Kommentare
