iPhone Wasserschaden reparieren

Geschrieben von: pollytintop
  • Kommentare: 65
iPhone Wasserschaden reparieren

Schwierigkeitsgrad

Schwierig

Schritte

12

Zeitaufwand

1 - 2 Stunden

Einleitung

Folge der jeweiligen Reparaturanleitung deines Gerätes, um es auseinander zu bauen. Eventuell benötigst du eine weiche Bürste, Isopropylalkohol und einen Behälter, indem du das Logic Board komplett in Alkohol tauchen kannst. Die Schritte müssen möglicherweise mehrfach ausgeführt werden, um gute Ergebnisse zu erzielen. Diese Reinigungshinweise bringen dein Gerät vielleicht nicht direkt wieder zum Laufen, aber sobald du die gesamte Flüssigkeit und jegliche Korrosion entfernt hast, kannst du vielleicht einzelne Ersatzteile herausfiltern, die ersetzt werden müssen. Für mehr Informationen schaue dir auch diese Anleitung zur Reparatur von iPhone Wasserschäden an.

  1. MjAWVcjjEXgaRoSU
    MjAWVcjjEXgaRoSU
    mQHKdnOAwilRmMgk
    jsYuTj45U2Sus1GY

    • Versuche herauszufinden, ob sich zwischen dem Front Panel und dem Display Wasser befindet. In dieses Gerät ist eindeutig Wasser eingetreten, wahrscheinlich befindet sich immer noch etwas im Gehäuse.

    • Bei diesem Gerät ist kein offensichtlicher Schaden am Dock Connector.

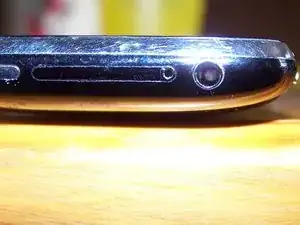

    • Außerdem ist kein offensichtlicher Schaden an der Kopfhörerbuchse.

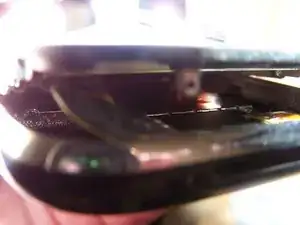

  2. eE1MUQsO16RRkN4G

    • Schäden durch Feuchtigkeit können die Demontage erschweren. Achte auf Kabel und Anschlüsse, die anders als vorgesehen mit anderen Komponenten verbunden sind.

    • Beim Entfernen des Front Panels zeigte sich, dass das Flachbandkabel des Dock Connectors am Mittelrahmen klebte.

    What if the android phone is inbuilt??

    Fatimah Lawal -

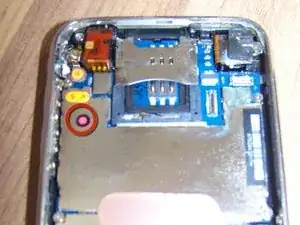

  3. sYEwEllkxHarue1E
    sYEwEllkxHarue1E
    iYId2fIuMEvnGq3q

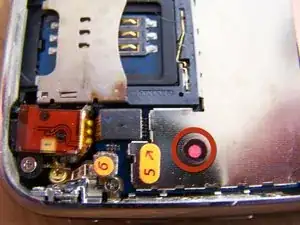

    WwIxVuon4Vqif5HL

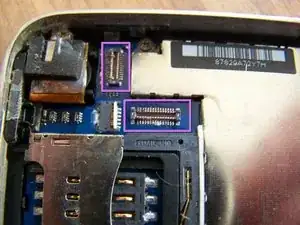

    • Der Indikator für Wasserschaden ist Pink, was anzeigt, dass Flüssigkeit in das Gerät eingedrungen war.

    • Feuchtigkeitsrückstände und Verfärbungen durch Korrosion lassen sich auf den Anschlüssen des Displays und des Front Panels, dem Näherungssensor, dem SIM-Kartenslot und der Kamera gut erkennen.

  4. QbLgJ6qSiQdrvOSe
    QbLgJ6qSiQdrvOSe

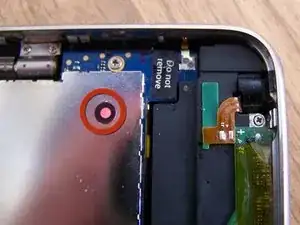

    T4oxNS5LMeKTNEaU

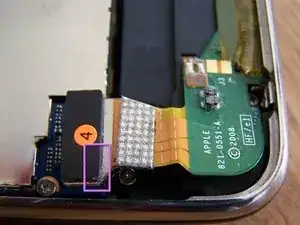

    • Der Indikator für Wasserschaden am Dock Connector ist ebenfalls Pink, was anzeigt, dass auch an diesem Ende des Gerätes Flüssigkeit eingedrungen war.

    • Die Oberseite des Dock Connectors sieht recht sauber aus, nur an ein paar kleineren Stellen beim Anschluss 4 ist Korrosion sichtbar.

  5. 1djlvFeT1b2WROfA
    1djlvFeT1b2WROfA
    JCLPNDPPFPYCLbfB
    UB2XVmRGM6OjetDx

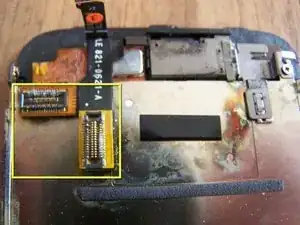

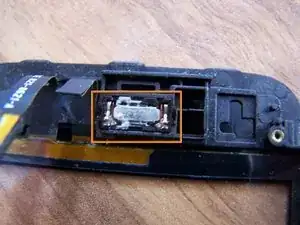

    • Auf der Rückseite der Display Einheit sieht man mehrere korrodierte Stellen und Rückstände an den Anschlüssen des Displays und des Front Panels.

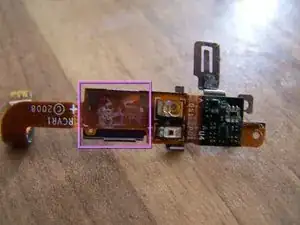

    • Nach dem Entfernen des Displays und der Abdeckung der Baueinheit aus Ohrhörerlautsprecher und Näherungssensor sieht man einen Feuchtigkeitsschaden am Lautsprecher.

    • Der Näherungssensor ist nur leicht beschädigt.

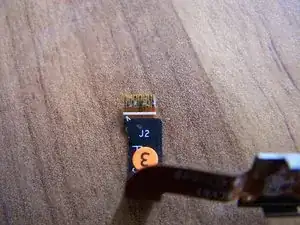

  6. baeYtkfRDHA2Qvqt

    • Bei näherer Betrachtung fällt größerer Schaden durch Korrosion an der Baueinheit aus Ohrhörerlautsprecher und Näherungssensor auf.

  7. wUpOvItDAZpRDrLr

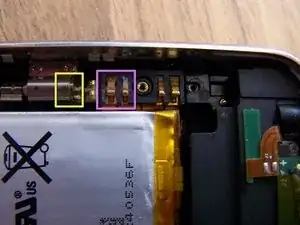

    • Nach dem Entfernen des Logic Boards fällt auch hier mehr Schaden auf.

    • Der Vibrationsmotor ist leicht verrostet.

    • Die Anschlusspins des Akkus sind korrodiert.

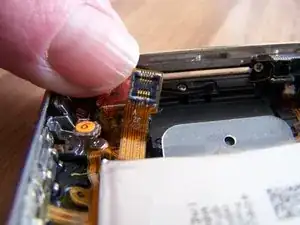

  8. f1ypUPbpxMtYJlIP

    • Der Anschluss der Kopfhörerbuchse (Stecker 5), der Vibrationsmotor und die Lautstärkeregler sind leicht korrodiert.

  9. gthLRfAVRvaqYPgv
    gthLRfAVRvaqYPgv

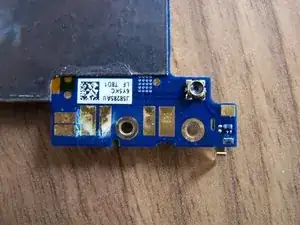

    4YJYWO5RXOHA4K5i

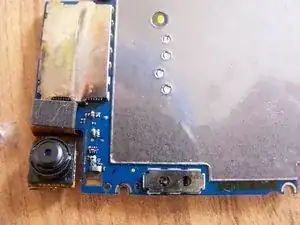

    • Die Rückseite des Motherboards ist an den Kontakten des Akkus leicht korrodiert.

    I cleaned these Battery contacts, and then one of the contacts lost its GOLD color, and got some black signs :/

    Is this ok?

    Please see the pic:

    http://img42.imageshack.us/img42/5630/im...

    Shai -

    it should be ok.

    pollytintop -

    Hi I got my iPhone 6 water damage it didn't turn on only vibrated when plugged in and a few months later I tried it again now it turns on but when it goes to rest mode it won't turn back on any idea what it would make it do that ?plz help phone was only a few weeks old

    Jesus -

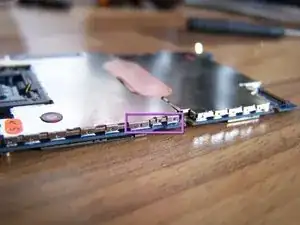

  10. 1ELRjo4fZZMQWtwg
    1ELRjo4fZZMQWtwg
    bc3ryPBKKifkTVPO

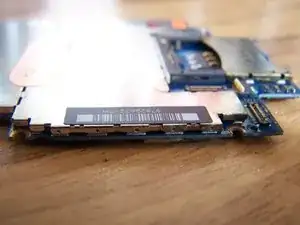

    • Abhängig vom Feuchtigkeitsschaden musst du vielleicht das Abschirmblech entfernen, riskierst dabei aber eine Beschädigung der kleinen Komponenten auf dem Motherboard. Wenn du das Abschirmblech entfernst, sei vorsichtig, und hebe es langsam mit einem Spudger, oder Plastic Opening Tool an.

    • Schau dir die versenkten Clips am Abschirmblech an, die nach unten über die Clips des Motherboards ragen.

    • Nutze dein Plastic Tool, um einen Clip an der Ecke des Abschirmblechs zu greifen und biege ihn weg vom Motherboard.

    • Gib acht auf die vielen kleinen Komponenten, die auf der Oberfläche befestigt sind und löse alle Clips, bis du das Abschirmblech entfernen kannst.

  11. TYTijXyLXn3JvliU
    TYTijXyLXn3JvliU
    aIJkpOsUH4CdkjeP

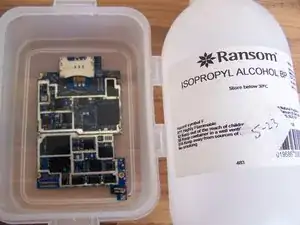

    • Versenke das Motherboard lang genug in Isopropylalkohol, dass alle angetrockneten Rückstände und verbleibende Flüssigkeiten sich lösen. Entferne sichtbare Korrosion oder Rückstände mit einer weichen Bürste.

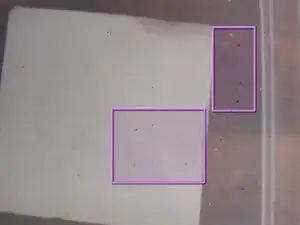

    • Im Alkohol sichtbare Rückstände vom Motherboard.

    • Reinige alle Akkukontakte, Stecker, Anschlüsse und Chips vom Motherboard mit einer weichen Bürste.

    • Wiederhole diesen Vorgang, bis alle Rückstände entfernt sind.

    • Trockne das Motherboard und alle anderen Teile komplett, bevor du das Gerät wieder zusammenbaust.

    Hey, thank you so much for this great instruction!! :)

    The only thing I can't see here, is if you used 70% or 99% Isopropyl-Alcohol. The only bottle I could find has 70%. Is this enough? Or has it to be 99%?

    Thank you!

    Clara Meinzer -

    The purer, the better. Don't forget to ventilate the room !

    Didier Daniel -

    Do i need to use any other material to clean after take it from isopropyl alcohol?

    Chong Khey Shiun -

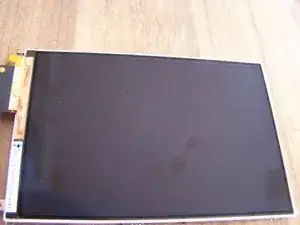

  12. SkO6LY5awojVfOpW

    • Wische das Display mit einem in Isopropylalkohol getränkten Tuch ab. Untertauchen ist nicht zu empfehlen, da der Alkohol Spuren unter dem LCD hinterlassen könnte.

    • Auf dem Bild ist das Display nach der Reinigung – Feuchtigkeitsrückstände sind nicht mehr sichtbar.

    Hi,

    you didn't show what and how to clecn the LCD.. Just put it inside the isopropyl alcohol container that we had used for the Motherboard?

    Shai -

    "wipe" means with a cloth moistened in alcohol.

    pollytintop -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge der jeweiligen Anleitung deines iPhones.

Nach mehrmaliger Reinigung mussten bei diesem Gerät die Stecker 1, 2, und 3 auf dem Motherboard, und das Display inklusive Front Panel ersetzt werden. Es konnte nicht alle Korrosion von den Kabeln und Steckern entfernt werden. Alle anderen Teile funktionierten noch und jetzt ist das iPhone wieder im Betrieb. Viel Glück! Hoffentlich zeigt diese Anleitung, dass Feuchtigkeitsschäden nicht immer sichtbar sind und Demontieren und Reinigen manche Geräte retten kann.
