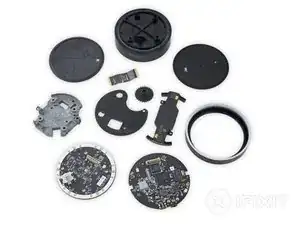

Amazon Echo Dot Teardown
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Echo Dot [1st Generation] is the downsized alternative to Amazon's original cloud-connected Echo. It features the same Alexa Voice Search, LED ring, and seven-microphone array as the original Echo, but with a smaller speaker and 3.5 mm headphone jack to output audio to external speakers. The Echo Dot can be distinguished from the Echo by it's shorter form factor, and model number: S04WQR printed on the bottom.
Technical Specifications
Connectivity
- Wi-Fi
- Dual-band, dual-antenna Wi-Fi (MIMO)
- Supports 802.11a/b/g/n Wi-Fi networks.
- Bluetooth
- Advanced Audio Distribution Profile (A2DP) support for audio streaming from your mobile device to Echo Dot or from Echo Dot to your bluetooth speaker
- Audio/Video Remote Control Profile (AVRCP) for voice control of connected mobile devices.
Audio:
- Built-in speaker for voice feedback when not connected to external speakers
- 3.5mm auxiliary port and Bluetooth audio streaming
System Requirements:
- Wi-Fi network
- Device running Fire OS, Android, and iOS
Size: 1.5" x 3.3" x 3.3" (38 mm x 84 mm x 84 mm)
Weight: 8.8 oz. (250 grams)
Additional Information
Amazon: Official Page
Wikipedia: Amazon Echo
