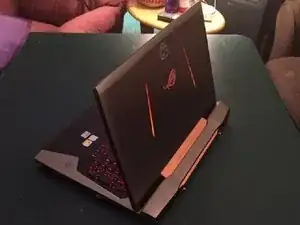

The G752VL-DH71 (often referred by the shorter name “G752VL” or even “G752”) is a gaming laptop release by Asus in 2015. It is part of their Republic of Gamers (ROG) line of laptops and has a minimalist mask-like ROG logo on the back of the display. Speaking of which, the display spans 17.3 inches (43.9 cm) on the diagonal and has a resolution of 1920x1080 pixels. Just below, the keyboard spans most of the width of the chassis and includes a numpad, backlit keys, and extra red accents on the WASD keys.

Internally, the laptop features an Intel Core i7-6700HQ processor and a GeForce GTX 965M graphics card. You can upgrade the memory in the G752 to a maximum of 64 GB. Two of the memory slots are located behind a simple maintenance cover on the back of the device, while the other two slots are more difficult to reach (but still accessible) under the keyboard. Removing the maintenance cover also gives you access to the 2.5-inch drive bay and the M.2 SSD slot. Some models come with an optical drive located on the left side of the device.

You can identify the Asus G752 by looking for a sticker containing the model number on the bottom of the laptop. See this Asus support article for more information.

Processor

Intel Core i7-6700HQ
4 cores, 8 threads
2.6 GHz base clock
3.5 GHz boost clock

Memory

Four SODIMM slots (two behind back cover, two under the keyboard)
Up to 64 GB total
Accepts DDR4 at up to 2133 MHz

Storage

500 GB, 1 TB, or 2 TB hard drive
- SATA III (6 Gbit/s) interface
- 2.5-inch form factor (9.5 mm thick)
- 7200 or 5400 rpm configurations available
128 GB or 256 GB SSD
- NVMe Interface
- M.2 form factor (2280 size, M key)
DVD or Blu-ray drive (optional)

Graphics
