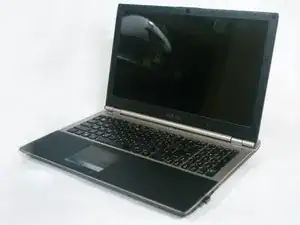

Asus U56E Repair

The Asus U56E is a 15.6-inch Windows laptop released by Asus in 2011. The U56E model was sold as part of the U-Series of laptops. AsusTek Computer Inc., more commonly known as ASUS, is an electronics company based in Taipei, Taiwan. Founded in 1989, ASUS began as a computer hardware company, creating computer motherboards for noteworthy companies such as IBM.

The Asus U56E runs on the Microsoft Windows 7 Home Premium operating system. It is sold with an Intel Core i5 2450M second-generation dual-core processor with a 3 MB cache and a Mobile Intel HM65 Express chipset. The model U56E includes 8 GB of RAM and two empty SDRAM slots to expand the computer’s RAM. Its hard disk drive (HDD) has a capacity of 750 GB. The laptop’s 3-in-1 card reader supports Memory Stick, MultiMediaCard, and SD Memory Card flash memory.

The Asus U56E models include the name “Asus” printed in stylized capital letters in the center of the computer’s bottom bezel. In the Asus logo, the ‘A’ typically does not include a horizontal bar. The Asus logo is also printed in the center of the laptop’s back cover. The laptop’s trackpad is centered with the keyboard’s spacebar and includes right- and left-click buttons.

GENERAL:

• Operating System: Microsoft Windows 7 Home Premium
• Manufacturer: Asus

PROCESSOR / CHIPSET:

• CPU: Intel Core i5 (2nd Gen) 2450M / 2.5 GHz
• Max Turbo Speed: 3.1 GHz
• Number of Cores: Dual-Core
• Cache: 3 MB
• 64-bit Computing: Yes
• Chipset Type: Mobile Intel HM65 Express

CACHE MEMORY:

• Installed Size: 3 MB

RAM:

• Memory Speed: 1333 MHz
• Technology: DDR3 SDRAM
• Installed Size: 8 GB

STORAGE:

• Optical Drive: DVD-Writer

MEMORY:

• Max Supported Size: 8 GB
• Technology: DDR3 SDRAM
• Speed: 1333 MHz
• Form Factor: SO-DIMM 204-pin
• Slots Qty: 2

DISPLAY:

• LCD Backlight Technology: LED backlight
• Widescreen Display: Yes
• Type: LED
• Diagonal Size (metric): 39.6 cm
• Display Resolution Abbreviation: HD

HARD DRIVE:

• Type: HDD
• Capacity: 750 GB

AUDIO & VIDEO:

• Graphics Processor: Intel HD Graphics 3000
• Memory Allocation Technology: Dynamic Video Memory Technology 5.0
• Integrated Webcam: Yes
• Sound: Stereo speakers, microphone

INPUT:

• Type: keyboard, touchpad

COMMUNICATIONS:

• Wireless Protocol: 802.11b/g/n
• Wired Protocol: Gigabit Ethernet
• Features: Intel Wireless Display (WiDi)

OPTICAL STORAGE:

• Drive Type: DVD-Writer
• Type: DVD-Writer

PROCESSOR:

• CPU Type: Core i5
• Processor Number: i5-2450M
• Generation: 2
• Manufacturer: Intel
• Clock Speed: 2.5 GHz

CARD READER:

• Type: 3 in 1 card reader
• Supported Flash Memory: Memory Stick, MultiMediaCard, SD Memory Card

BATTERY:

• Technology: 8-cell
• Cells: 8-cell
• Run Time (Up To): 8 hour(s)

CONNECTIONS & EXPANSION:

• Interfaces
  • Microphone input
  • Headphone output
  • USB 3.0
  • 2 x USB 2.0
  • LAN
  • HDMI
  • VGA
• Memory Card Reader: 3 in 1 (SD Card, Memory Stick, MultiMediaCard)

HEADER:

• Brand: ASUS
• Product Line: ASUS U56E
• Model: RAL9
• Compatibility: PC

NETWORKING:

• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

MONITOR:

• Diagonal Size: 15.6 in

SOFTWARE:

• Microsoft Office Preloaded: Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.

SYSTEM:

• Notebook Type: notebook
• Platform: Windows
• Hard Drive Capacity: 750 GB

DIMENSIONS & WEIGHT:

• Width: 14.9 in
• Depth: 10.6 in
• Height: 1.1 in

MANUFACTURER WARRANTY:

• Type: 1-year warranty

MAINBOARD:

• Chipset Type: Mobile Intel HM65 Express

ENVIRONMENTAL STANDARDS:

• ENERGY STAR Certified: Yes

PHYSICAL CHARACTERISTICS:

• Weight: 5.73 lbs

OPERATING SYSTEM / SOFTWARE:

• OS Provided: Type: Microsoft Windows 7 Home Premium

VIDEO OUTPUT:

• Graphics Processor: Intel HD Graphics 3000
• Graphics Processor Series: Intel HD Graphics

VIDEO MEMORY:

• Memory Allocation Technology: Dynamic Video Memory Technology 5.0

NOTEBOOK CAMERA:

• Integrated Webcam: Yes
