ASUS ZenFone 2 Laser Repair

The ASUS ZenFone 2 Laser Android smartphone was introduced by ASUS in September 2015 as part of the ASUS ZenFone line. ASUSTek Computer Inc. is a Taiwanese computer and phone hardware and electronics manufacturer. The ZenFone 2 Laser model ZE500KL is just one phone in the ZenFone 2 series, which includes the ZenFone 2 (ZE551ML), model ZE550ML (5.5-inch display), model ZE500CL (low-cost variant), and model ZE551ML (deluxe variant). The ASUS ZenFone 2 Laser (ZE500KL) was released in black, white, red, silver, and gold body colors.

The ASUS ZenFone 2 Laser (ZE500KL) features a 5.5-inch display with a resolution of 720 by 1280 pixels. It was available with 16 GB of internal storage and 2 GB of RAM, or 32 GB of internal storage and 3 GB of RAM. The ZenFone 2 Laser includes a 13-megapixel main camera and a 5-megapixel front-facing camera. It also features a 3000 mAh removable battery, meaning its battery's adhesive is not permanent, making repair and replacement easier than for non-removable batteries.

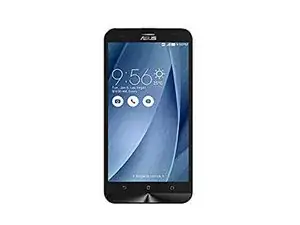

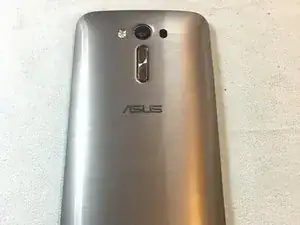

The ASUS ZenFone 2 Laser (ZE550KL) can be identified by the name “ASUS” engraved in capital letters in the bottom center of the phone’s back. The phone’s camera and fingerprint scanner are positioned in the top center of the back. The ZenFone 2 Laser includes Android’s three-button navigation in the bottom bezel of the phone’s front. The leftmost button, which is shaped like an arrow or a left-facing triangle, functions as a back button. Tapping the rightmost button displays all the apps currently running on the device. The center button takes users to the home screen. The ZE550KL model and other ZenFone models generally include a sticker in the lower bottom portion of the phones’ backing with identifying information like the model number.

Models: Z00LD, Z00LDD

Release date: September 2015

Body:

• Dimensions and Weight: 152.5 x 77.2 x 10.8 mm (6.00 x 3.04 x 0.43 in), 170 g (6.00 oz)
• SIM: Dual SIM (Micro-SIM, dual stand-by)

Display:

• Type: IPS LCD capacitive touchscreen, 16M colors
• Size: 5.5 inches, 83.4 cm² (~70.8% screen-to-body ratio)
• Resolution: 720 x 1280 pixels, 16:9 ratio (~267 ppi density)
• Protection: Corning Gorilla Glass 4

Platform:

• OS: Android 5.0 (Lollipop), upgradable to 6.0 (Marshmallow), ZenUI
• Chipset:
  • Qualcomm MSM8916 Snapdragon 410 (28 nm)
  • Qualcomm MSM8939 Snapdragon 615 (28 nm)
• CPU:
  • Quad-core 1.2 GHz Cortex-A53
  • Octa-core (4x1.5 GHz Cortex-A53 & 4x1.0 GHz Cortex-A53)
• GPU:
  • Adreno 306
  • Adreno 405

Memory:

• Card slot: microSDXC (dedicated slot)
• Internal: 16GB 2GB RAM, 32GB 3GB RAM
• eMMC 4.5

Main Camera:

• Single: 13 MP, f/2.0, Laser AF
• Features: Dual-LED dual-tone flash, panorama, HDR
• Video: 1080p@30fps

Selfie Camera:

• Single: 5 MP, f/2.0, AF

Sound:

• Loudspeaker: yes
• 3.5 mm jack: yes

Communications:

• WLAN: Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot
• Bluetooth: 4.0, A2DP, EDR
• GPS: Yes, with A-GPS, GLONASS
• Radio: FM radio
• USB: MicroUSB 2.0, USB On-The-Go

Features:

• Sensors: Accelerometer, gyro, proximity, compass

Battery:

• Li-Po 3000 mAh, removable

Miscellaneous:

• Colors: Black, White, Red, Silver, Gold
