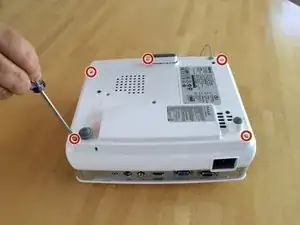

Central Fan
Background and Identification
BenQ (short for ''Bringing Enjoyment N Quality to life)'' is a Taiwanese technology company that manufactures consumer electronics, computing devices, and communication devices. The BenQ MP512ST is an SVGA Portable Projector released in June 2008 and was designed for casual movie watching and gaming, specifically for the Nintendo Wii. CNet states in this review, “Priced less than a midsize flat-screen LCD TV, BenQ's MP512 ST DLP projector is a solid, affordable option for people who want a big screen for casual use or gaming. “
The body of the BenQ MP512ST is mainly white, with some linings of silver. The large lens is on the right of the front side, with the BenQ logo directly next to it in white. On both sides, there are multiple slots for airflow and speakers, and on the back, there are multiple I/O ports including HDMI.
Technical Specifications
- Brightness: 2,200 ANSI Lumens
- Resolution: 800x600
- Aspect Ratio: 4:3 (SVGA)
- Contrast: 2,500:1 (full on/off)
- Display Type: DLP x 1
- Color Processing: 8-bit
- Video Modes: 720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i
- Data Modes: MAX 1280x1024
- Lamp Type: 280W UHP bulb
- Lamp Life: 3,000 hours / 4,000 hours (Eco)
- Lamp Model: 9E.Y1301.001 Buy Replacement Lamp
- Included Lens: Fixed focal length , manual focus
- Optional Lenses: No
- Lens Shift: No
- Throw Distance: 1.6' - 18.0' Calculate Throw Distance
- Image Size: 27.50" - 302.50"
- Throw Ratio: 0.89:1 (D:W)
- Projector Placement: For a " diagonal screen, place the projector lens 5'-12" from the screen.
- Digital Keystone: Vertical only
- Projector Size: 3.50" x 10.00" x 8.40" (HxWxD)
- Weight: 4.9 lbs
- Audible Noise: 31 dB / 26 dB (Eco)
- Internal Speakers: 5.0 Watts × 2
- Power: 280 Watts 100V - 240V
- Connection Panel: RS232: DB-9pin
