Reparaturanleitungen

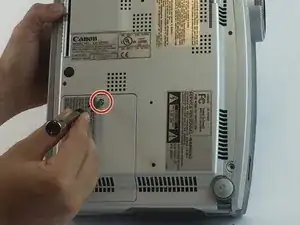

Bulb

Bulb

 en

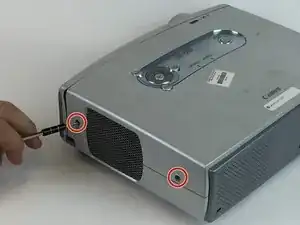

Exterior Shell

Exterior Shell

 en

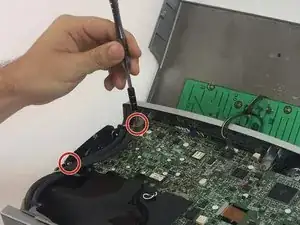

Fan

Fan

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

To explore some common issues with this device, go to the Troubleshooting Page.

Background and Identification

This digital projector was released in September 2003, and was sold until November 2004. There were no manufacturer recalls during this time, and no major component failures were acknowledged. The major external features of this device are a front-facing lens, front-facing speaker, rear-facing input/output panel, and upward-facing menu panel. This projector was only sold in the pictured color, silver. The model name ( LV-7210) is displayed on the blue menu face on top of the projector.

Specifications

Display

  • Image Brightness 2000
  • Image Contrast Ratio 350:1
  • Image Size 40.2 in - 300 in
  • Projection Distance 3.3 ft - 25 ft
  • Max Sync Rate (V x H) 100 Hz x 80 kHz
  • Connector Type 15 pin HD D-Sub (HD-15), 29 pin combined DVI, 4 pin USB Type B, 4 pin mini-DIN, 6 pin mini-DIN (PS/2 style), 8 pin mini-DIN, RCA, mini-phone stereo 3.5 mm
  • Purpose / Location management, on supplied cable

Video Output

  • Analog Video Signal none

Video Input

  • Analog Video Format NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM
  • Analog Video Signal RGB, S-Video, component video, composite video
  • Video Interfaces DVI, S-Video, VGA, composite video
  • TV System NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43

Environmental Parameters

  • Min Operating Temperature 41 °F
  • Max Operating Temperature 95 °F

Operation

  • Lamp Type UHP 200 Watt

Projector Lens System

  • Lens Aperture: f/1.73-2.5
  • Zoom Factor: 1.6x
  • Keystone Correction Direction: horizontal, vertical
  • Vertical Keystone Correction: -40 / +40

Audio Output

  • Type: Speakers
  • Form Factor: Integrated
  • Output Power / Channel:
    • 1 Watt
    • Speaker Size 1.1 in

Projector

  • Class: digital projector
  • Type: LCD projector
  • Min Image Size: 40.2 in
  • Max Image Size: 300 in
  • Color Support: 16.7 million colors
  • Native Resolution: 1024 x 768
  • Max Resolution (Resized): 1280 x 1024
  • Display Resolution Abbreviation: XGA
  • Max V-Sync Rate: 100 Hz
  • Max H-Sync Rate: 80 Hz
  • Video Bandwidth: 140 MHz
  • Brightness: 2000
  • Contrast Ratio: 350:1
  • Min Screen Distance: 3.3 ft
  • Max Screen Distance: 25 ft
  • Display Format: 786,432 pixels (1,024 x 768) x 3
  • Uniformity: 85 %

Projector Lamp

  • Lamp Capacity: 200 Watt
  • Lamp Type: UHP
