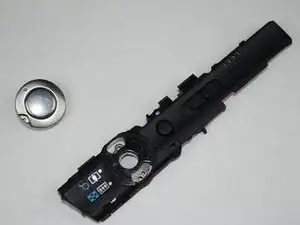

Card and Battery Slot
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For more information regarding common problems and troubleshooting, check out Canon PowerShot SD870 IS Troubleshooting.
Background and Identification
The Canon PowerShot SD870 IS was released on August 29, 2007 and was only the second point-and-shoot wide-angle lens camera produced by Canon. The SD870 was seen as the replacement model for the older SD800 that was released in later 2006. The SD870 offers a larger LCD screen (3.0" vs. 2.5") and better resolution (8.0 vs. 7.4 Megapixels) compared to its previous model.
To identify the device and differentiate it from other Canon PowerShot models, simply look at the front of the camera. The front will read "Canon Digital IXUS 870 IS." Other PowerShot models will have a different product number on the front.
Specifications
Total Pixels: Approx. 8.3 Megapixels
Focal Length: 4.6-17.3mm f/2.8-5.8 (35mm film equivalent: 28-105mm)
Digital Zoom: 4x
Autofocus System: TTL Autofocus
LCD Monitor: 3.0-inch low-temperature polycrystalline silicon TFT color LCD with wide viewing angle
LCD Pixels: Approx. 230,000 pixels
Maximum Aperture: f/2.8 (W) - f/5.8 (T)
Shutter Speed: 15-1/1600 sec.; Long Shutter operates with noise reduction when manually set at 1-15 sec.
ISO Sensitivity: Auto, High ISO Auto, ISO 80/100/200/400/800/1600 equivalent (Standard Output Sensitivity. Recommended Exposure Index)
White Balance Control: Auto, Preset (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H), Custom
Built-in Flash: Auto, Auto w/ Red-eye Reduction, Flash On, Flash On w/ Red-eye Reduction, Flash Off, FE lock, Slow Synchro
Shooting Modes: Auto, Camera M, Special Scene (Portrait, Foliage, Snow, Beach, Fireworks, Aquarium, Underwater, Indoor, Kids & Pets, Night Snapshot), Color Accent, Color Swap, Digital Macro, Stitch Assist, Movie
Storage Media: SD/SDHC Memory Card, MultiMediaCard, MMC Plus Card, HC MMC Plus Card
Dimensions: 3.7 x 2.3 x 1.0 in. (W x H x D)
Weight: 155g or 5.5 oz or 0.34lb
