Dell Inspiron 15-5570

The Inspiron 5570 (also referred to as the “Inspiron 15 5570”) is a laptop released by Dell in 2017. It has a 15-inch screen with a resolution of either 1366x768 pixels or 1920x1080 pixels. The chassis of this laptop is made from black plastic with a fairly nondescript design. Internally, it uses an Intel processor, with a wide array of configuration options ranging from a low-power Celeron chip to an 8th-generation Intel Core i7 (see the specifications section below). Video output for the laptop is handled by the integrated Intel graphics alongside an AMD Radeon dedicated graphics card.

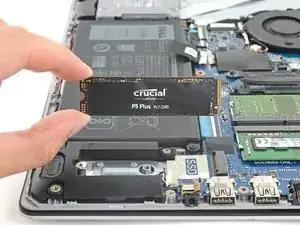

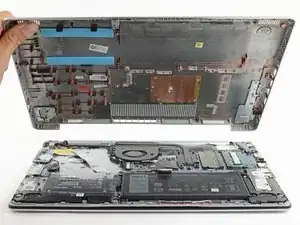

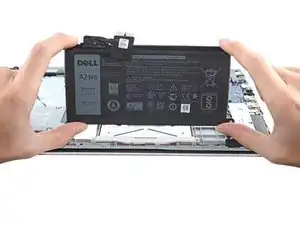

The Inspiron 5570 can use up to 32 GB total memory in the two memory slots on the motherboard. If you want to access these and other components, you can follow the instructions shown in the Dell service guide for this laptop. Other important replaceable parts include the battery, the hard drive (which sits in a standard 2.5-inch SATA drive bay), and the SSD (which uses an M.2 slot on the motherboard). The optical drive easily slides out the side of the laptop once you remove the single screw holding it in place.

To identify this laptop, look for a sticker on the bottom cover containing the model name “Inspiron 5570.” If the sticker doesn’t have the model number, look instead for a service tag or service code. Either of these numbers work just like a serial number for Dell laptops, and you can enter either on the Dell support website for more complete information about your device.

Processor

• Intel Celeron 3865U
• or Intel Pentium 4415
• or 6th-generation Intel Core i3-6006S
• or 7th-generation Intel processor
  • Core i3-7020
  • Core i3-7130U
  • Core i5-7200U
  • Core i7-7500
• or 8th-generation Intel processor
  • Core i3-8130U
  • Core i5-8250
  • Core i7-8550

Memory

• Up to 32 GB total
• Two SO-DIMM slots
• DDR4 at 2400 MHz

Storage

• Hard drive
  • 2.5-inch drive bay
  • SATA III (6 Gbit/s) interface

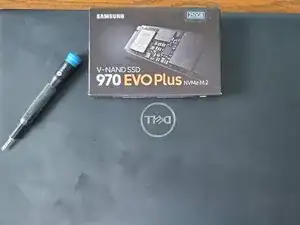

• SSD
  • M.2 2280 form factor
  • Either SATA III (6 Gbit/s) interface or PCIe/NVMe
• Optical drive
  • SATA I (1.5 Gbit/s) interface

Graphics

• Integrated graphics
  • Celeron or Pentium processor: Intel HD Graphics 610
  • 7th-generation Core processor: Intel HD Graphics 620
  • 8th-generation Core processor: Intel UHD Graphics 620
• Dedicated graphics
  • AMD Radeon 530

Display

• 15.6 inches (39.6 cm) on the diagonal
• 1366x768 pixels or 1920x1080 pixels
• TN panel
• 60 Hz refresh rate

Connections

• USB 2.0 port
• Two USB 3.0 ports
• (Optional) USB 3.0 Type-C port (with DisplayPort and Power Delivery support)
• HDMI 1.4b port
• Ethernet port (100 Mbit/s)
• 3.5 mm headphone/microphone combo jack

Wireless

• 802.11a/b/g/n/ac Wi-Fi
• Bluetooth 4.2
