Dell Latitude E5570 Repair

The Dell Latitude line of laptop computers are intended for business use, as opposed to consumer use. This means that these computers are very consistent in terms of what vendor manufactures the parts and what parts are used. Because of this, business computers are easy to maintain and support on a large scale (like a company) because they all have the same or similar components.

The Dell Latitude E5570 is part of the Exx70 series of Latitude laptop computers, which came out in 2016. The second digit of the model number, 5, refers to the 15.6 inch screen measurement across the diagonal. This computer, like the rest of the Exx70 series, uses a 6th generation Intel Core processor. To locate the model number on your Dell computer, you can use this Dell support page.

• Front Height (touch): 24.55 mm (0.97 inch)
• Front Height (nontouch): 24.55 mm (0.97 inch)
• Back Height (touch): 26.1 mm (1.03 inch)
• Back Height (nontouch): 24.55 mm (1 inch)
• Width: 377.1 mm (14.8 inches)
• Depth: 252.6 mm (9.9 inches)
• Starting Weight: 4.60 lb (2.09 kg)
• Processor Types: 6th gen Intel up to Core i7, U & H, ULT Dual Core
• Diagonal Display Size: 396.24 mm (15.6 inches)
• Display Resolution: 1366 x 768 (HD) or 1920 x 1080 (Full HD)
• Graphics: Intel HD Graphics 530 (quad core) AMD Radeon R7M370
• Memory Connector: Two DIMMS slots
• Memory Capacity (per slot): 4 GB, 8 GB, 16 GB and 32 GB
• Memory Type: DDR4 SDRAM, 2133 MHz speed
• Storage: Up to 1 TB (HDD), Up to 512 GB (SSD 2.5 inches or SSD M.2 SATA / PCIe )

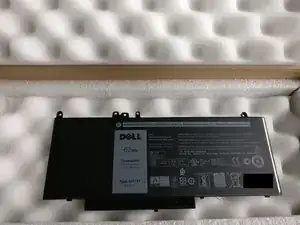

• Battery Type: 4–cell (62 Whr) or 6–cell (84 Whr)
