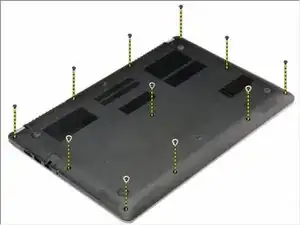

Base Cover
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Dell Vostro 5470 is an entry level business laptop primarily geared towards small businesses. The Vostro lineup is considered cheaper than its Inspiron counterpart, but sacrifices the technical capabilities found in the Inspiron. As of December 21, 2020, this model is discontinued by the manufacturer in the US. This model features an optional touch screen and a combination of SSD and HDD drives for faster boot times. The user has the option of preconfiguring the laptop to run on Ubuntu or Windows 8 operating systems. According to a review by Notebook Check, the laptop is capable of running for up to 5 hrs. while remaining unplugged.
The model can be uniquely identified by its slim physical characteristics. As is traditional with most Dell laptops, a service tag sticker can be found on the underside of the chassis. This can be used on Dell Support page to identify the laptop’s model number. Alternatively, detailed information can be found in the system information page within the OS.
Technical Specifications
Processor
- Intel® 4th Generation Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
- Intel® 4th Generation Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
Memory
- Maximum of 8GB 1600MHz DDR3L SoDIMM supported
Display
- 14” HD Wide Screen LED Display (1366 x 768) 720p with optional Touch Display
- Built-in 1MP Camera
Graphics
- Intel HD Graphics 4400
- NVIDIA GT740M 2GB DDR3L
Storage
- 500 GB 5400RPM SATA HDD
- 500 GB 5400RPM SATA HDD + 32GBB SSD
- 1TB 5400RPM SATA HDD
Networking & Connectivity
- Wi-Fi 802.11 a/b/g/n
- Ethernet 10/100/1000
I/O Ports
- SD Card reader
- 3 x USB 2.0
- HDMI Connection
- Audio combo jack
Battery
- 3 cell Lithium ion battery
Dimensions & Weight
- Non-Touch: 13.29” x 9.19” x 0.72” (W x D x H)
- Touch: 13.29” x 9.19” x 0.76” (W x D x H)
- Weight: 3.37 lbs (1.53 kg) Non-touch; 3.57 lbs. (1.62 kg) Touch
