Battery Disconnect
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background
The XPS 13 9310 is very similar to it's predecessor. It looks almost the same physically, but inside it has a few upgrades. It has the updated 11th generation Intel Core processors and the option of the newer Iris Xe Graphics.
Identification
The XPS 13 9310 has a sleek design with an aluminum chassis. There is carbon fiber surrounding the keyboard and touchpad. It has an optional white "Frost" color.
Specifications
Display
- 13.3-inch FHD+ anti-glare; 1920 x 1200 pixels; 500 nits; optional touch screen
- 13.3-inch UHD+ anti-glare; 3840 x 2400 pixels; 500 nits; touch screen
Processor
- Intel Core i3/i5/i7 11th generation
Graphics
- Intel UHD Graphics or Intel Iris Xe Graphics
Storage

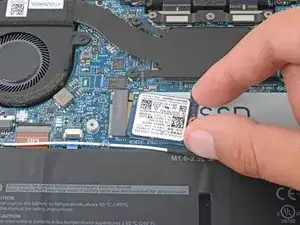

- M.2 2230 SSD up to 256 GB
- M.2 2280 SSD up to 2 TB
Memory
- 8/16/32 GB LPDDR4x
Wireless
- Intel AX1650 or Rivet Killer AX500-DBS
- Bluetooth 5.1
Battery

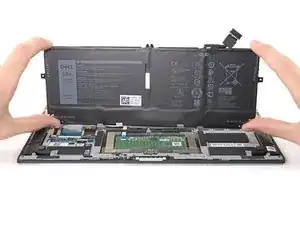

- 4-cell 52-watt-hour "smart" lithium-ion battery
- Express charging
Dimensions
- Height: 0.58 inches (14.8 mm)
- Width: 11.64 inches (295.7 mm)
- Depth: 7.82 inches (198.7 mm)
- Weight (touch): 2.8 pounds (1.27 kg)
- Weight (non-touch): 2.64 pounds (1.2 kg)
Ports
- 2 Thunderbolt 4 USB Type-C connectors (power delivery)
- Headphone/microphone combo jack
- microSD-card slot
