Back Case
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

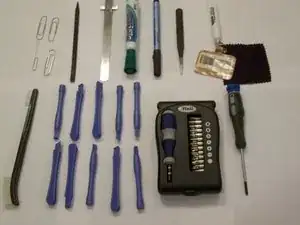

Tools
Spudger-Useful for carefully removing the screen of the device or touching sensitive electronic components.
[verlinktes Produkt fehlt oder ist deaktiviert: IF145-000-1]-Useful for opening up devices without scratching the display.
Feinbürste-Useful for cleaning any components of the device.
Soldering Workstation-Useful kit that contains everything you need to reconnect wires that have been disconnected.
Kreuzschlitzschraubendreher #00-Useful for taking screws out of the device or putting screws back in the device.
Background and Identification
The DigiLand DL701Q tablet is no longer in production. The device has an LCD display, a touch screen, and Wi-Fi The device comes with many features such as Bluetooth, FM radio, and a micro USB 2.0 port.
Tech Specs
Display Features
- 7-inch TFT-LCD screen
- 1024 x 600 resolution
- 5-point capacitive multitouch screen
- 200 cd/m² brightness
Operating System
- Android 4.4 KitKat
Hardware
- 8GB NAND flash memory
- Memory card slot for cards up to 32GB
- MediaTek MTK8127 Cortex-A7 1.3GHz quad-core processor
- ARM Mali 450 MP4 graphics
Special Features
- Wi-Fi (802.11b/g/n)
- Bluetooth
- GPS
- Micro USB 2.0 Port
Camera Specs
- 2.0MP rear-facing cameras
- 0.3MP front-facing cameras
Battery
- 1-cell Lithium Polymer battery (Li-Polymer) 2100 mAh
Audio Capabilities
- 1 speaker, 3.5mm headphone jack, mic
Size and Weight
- Dimensions: 7.5″ x 4.6″ x 0.5″
- Weight: 10.4 ounces
Troubleshooting
If you are having problems with your device check out our troubleshooting guide.
