Buttons
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For frequently asked questions visit our Eightarc Fusion Troubleshooting page.
Background and Identification
A joint venture between two arcade stick companies, North America-based Eightarc and Asia-based Qanba, the Eightarc Fusion was created for the North American market. At the time of its launch in 2011, it was the only factory dual-modded arcade stick available for purchase in North America.
This USB arcade stick uses a Sanwa JLF joystick and Sanwa OBSF buttons. The Fusion has a standard 8 button layout with top mounted Home/Turbo/Start/Select buttons in addition to a Xbox/PS3/PC selector Switch and comes fitted with a headset port.
The Fusion stick can be identified from other Eightarc arcade sticks by its Q4 RAF badging next to the start/select buttons, its 8 face button layout, and its lack of a carrying handle.
Device Specifications
Controls

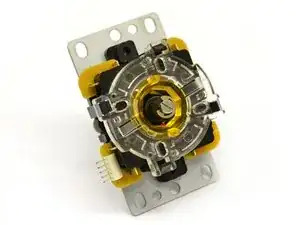

Sanwa JLF joystick with square restrictor gate

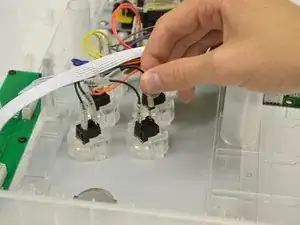

8 Sanwa OBSF 30mm buttons
Home, Turbo, Select, and Start mini buttons
LED indicators for player
Dimensions
9.5 lbs.
16” x 10” x 2.5” joystick dimensions
USB cord length 8’ 2”
Features
ABS plastic construction
Matte finish
Rubber feet
Black felt bottom

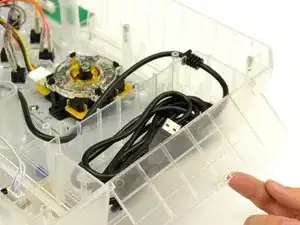

USB cord compartment
Compatability
Xbox 360, PS3, and PC compatible via selector switch
2.5mm headset jack
