Epson VS250 Repair

If you are having issues with the Epson VS250, refer to the troubleshooting page.

The Epson VS250 is a projector released by Epson in 2017. This model is identified by the Epson logo on the front and top of the projector. The model identification, VS250, is on the top of the projector, underneath the buttons. These logos are in a dark gray color, visible on the white background of the device. The bottom of the device is black with a dark gray warning label listing the device, model, warnings, and the serial number.

The Epson VS250 is a lightweight, portable, easy setup device used for everyday projection needs. This model is part of a line of projectors by Epson that supply exceptional color accuracy, color brightness, and color gamut. It has an HDMI port, wireless connectivity, and iProjection App compatibility. You can purchase this device for $369.99 from Epson.

A common complaint from users is the low resolution for a device made in 2017.

Source: Epson VS250 Device Page

• Dimensions: 11.9" x 9.2" x 3.2" (W x D x H)
• Weight: 5.3 lb
• Projector Type: 3LCD
• Size - Projected Distance: 30" - 350" (0.88 - 10.44 m)
• Interfaces:
  • HDMI x 1
  • Computer / Component video: D-sub 15 pin x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA (White / Red) x 1
  • USB connector: Type A x 1 (PC-free and other)
  • USB connector: Type B x 1 (USB Plug 'n Play)
• Color Brightness - Color Light Output: 3200 lumens1
• White Brightness - White Light Output: 3200 lumens1
• Aspect Ratio: 4:3
• Keystone Correction:
  • Automatic: Vertical: ±30 degrees
  • Horizontal: Easy-slide, Horizontal Image correction
• Resolution: 800 x 600 (SVGA)

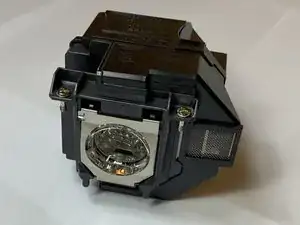

• Lamp Type: 210 W UHE
• Lamp Life:
  • ECO Mode: Up to 10,000 hours6
  • Normal Mode: Up to 6000 hours6
• Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz
• Rated Voltage: 50/60 Hz
• Power Consumption: ECO Mode (211 W), Normal mode (296 W)
• Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
• Display Performance:
  • NTSC: 480 lines
  • PAL: 560 lines (depends on observation of the multi-burst pattern)
• Lens:
  • Digital zoom (Manual)/Focus (Manual)
  • Digital zoom 1.0 – 1.35
  • Focal Length 16.7 mm
• Temperature: 41℉ to 95℉
• Security: Password Protected
• F-number: 1.44
• Noise Level: 37 dB

 Source: Epson VS250 Specs
