Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Identification and Background

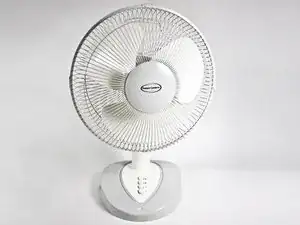

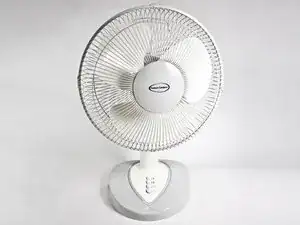

The fan model (FT30-3D) is one of a product family including two other models (FT23-3D and FT40-3D), with a difference in fan height. The guides can be used to address issues with any of the identified fans.

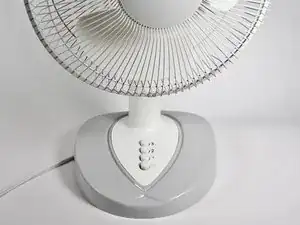

The model numbers are found on the bottom base of the table fan.

These guides will cover the following fan models:

  • FT23-3D
  • FT30-3D
  • FT40-3D.

Specifications

Functionality

  • 3 Speeds (low, medium, high)
  • Knock-down structure
  • Both tilting angle
  • Oscillation

Power requirements

  • Input voltage: 120 VAC at 60 Hz
  • Current draw: 0.35 Amps

Size and weight

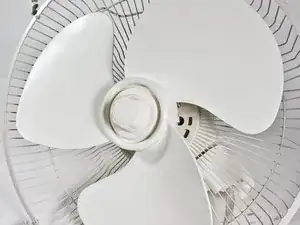

  • Fan blade diameter: 12 inches
  • Maximum overall height: 12 inches
  • Fan guard diameter: 13.75 inches
  • Weight: 4 lbs

Color

White with a gray base support

Troubleshooting

Diagnose any issues you may be having with your desk fan using our GD Midea FT30-3D Troubleshooting Guide.
