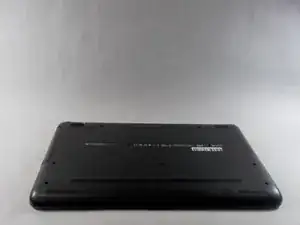

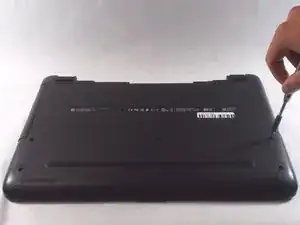

Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are having issues with the HP 15-ay078nr, refer to the troubleshooting page.
Background Information

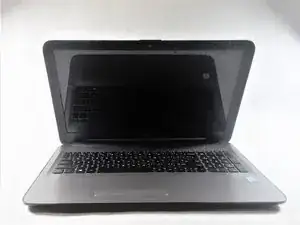

The HP 15-ay078nr was released as a part of HP’s 15 series of laptops in 2016. This model of HP is identified by the product number X0H77UA. The HP 15-ay078nr was designed to be an everyday laptop that can handle any task with efficiency and ease.
The 15-ay078nr has an Energy Star rating, meaning, it is energy efficient with lower operating costs. It has a large 15.6” display for consumer comfort and the outer shell is commonly grey. It has an HD screen allowing the user to enjoy images and videos in crisp detail. The camera is HD as well. The DTS Studio Sound audio will produce great quality in sound. The HP 15-ay078nr was equipped with the 6th generation Intel Core i7-6500U Processor and plenty of memory. It is less than five pounds, allowing the device to be easily transportable. Before the 15-ay078nr was released, 200 tests were performed by HP to ensure quality performance. To distinguish your model of HP laptop, look at the back of the device. A sticker on the underside contains the model number.
In 2017, HP announced a Computer Battery Safety Recall and Replacement Program in which some HP 15-ay078nr may have been affected. Certain battery models have been reported to overheat to the degree of fire and burn hazard. See the battery replacement guide to see how to remove the battery and see if your device is affected here.
Technical Specifications
Features
- Display: 15.6" diagonal HD SVA BrightView WLED-backlit (1366 x 768)
- Keyboard: Full-size island-style with numeric keypad
- Video Graphics: Intel® HD Graphics 520 (up to 3.07 GB), Integrated
- Webcam: HP TrueVision HD Webcam (front-facing) with integrated digital microphone
- Audio: DTS Studio Sound™ with 2 speakers
- Pointing Device: Touchpad with multi-touch gesture support
Hardware
- Microprocessor: Intel® Core™ i7-6500U
- Standard Memory: 6 GB DDR3L-1600 SDRAM
- Hard Drive: 1 TB 5400 rpm SATA
- Network Interface: Integrated 10/100 BASE-T Ethernet LAN
- Optical Drive: SuperMulti DVD burner
- External Ports: 1 USB 3.0; 2 USB 2.0; 1 HDMI; 1 RJ-45; 1 headphone/microphone combo
- Expansion Slots: 1 multi-format SD media card reader
- Battery: 4-cell, 41 Wh Li-ion, 6 hour battery life
- Dimensions (W x D x H): 38.43 x 25.46 x 2.43 cm
- Weight: 2.14 kg
Software
- Operating System: Windows 10 Home 64
- Included Software: McAfee LiveSafe™
- Preinstalled Software: Netflix; Dropbox; CyberLink Power Media Player; CyberLink PowerDirector; TripAdvisor
- HP Apps: HP ePrint; HP Games by WildTangent; HP Support Assistant; HP Connected Photo
