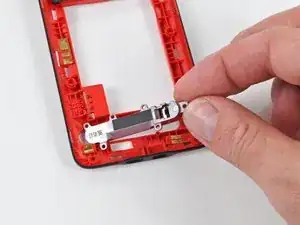

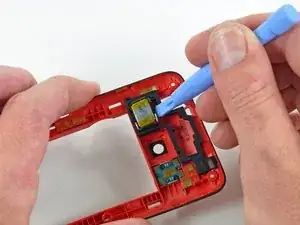

Speaker

Speaker

 en
Stand

Stand

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Identification and Background

The Evo is powered by a 1-GHz Snapdragon processor and runs the Android operating system, version 2.1, with HTC's Sense UI layered on top of it. It includes a TFT LCD capacitive touchscreen screen, an 8-megapixel camera in the rear and a 1.3-megapixel camera in the front.

Sprint will release the HTC Evo on June 4, 2010.

Google I/O 2010 attendees all received a free Evo 4G on May 20, 2010.

Known Issues/Common Problems

  • If you drop yours and it lands on a corner the glass breaks easily:

To prevent this keep your Evo in a hard case (or just don't drop it!).

This however does not mean that the glass is weak, as shown here, it is pretty durable against scratching.

Device Troubleshooting Wiki

HTC EVO Troubleshooting

General Information

  • 2G Network: CDMA 800 / 1900
  • 3G Network: CDMA2000 1xEV-DO
  • SIM: Mini-SIM
  • Announced: March 2010
  • Released: June 2010

Body

  • Dimensions: 122 x 66 x 13 mm (4.80 x 2.60 x 0.51 in.)
  • Weight: 170 g (6.00 oz)

Display

  • Type: TFT capacitive touchscreen, 65K colors
  • Size: 480 x 800 pixels, 4.3 inches (approximately 217 ppi pixel density)
  • Multitouch: Yes
  • Protection: Corning Gorilla Glass, HTC Sense UI

Sound

  • Alert Types: Vibration, MP3, WAV ringtones
  • Loudspeaker
  • 3.5mm Jack

Memory

  • Card Slot: microSD; up to 32 GB, 8 GB included
  • Internal: 512 MB RAM, 1 GB ROM

Data

  • Speed: EV_DO Rev. A, up to 3.1 Mbps
  • WLAN: Wi-Fi 802.11 b/g, WiMAX 802.16 e ( Wi-Fi router)
  • Blue Tooth: V2.1 with A2DP
  • USB: microUSB v2.0

Camera

  • Primary: 8MP, 3264 x 2448 pixels, Autofocus, Dual-LED flash
  • Features: Geo-tagging
  • Video: 720p
  • Secondary: 1.3MP

Battery

  • Stand by: Up to 146 hours
  • Talk time: Up to 5 hours and 12 minutes
