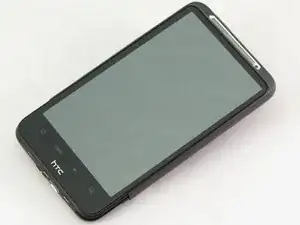

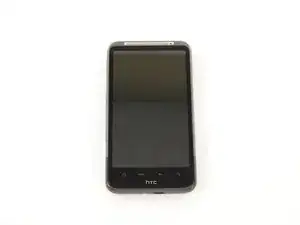

Background and Identification
The good thing about HTC Inspire 4G is everyone can buy it. The price is so affordable. However, the phone has some bad things as well. For example , the size of HTC Inspire 4g is large and most of the customers did not experience the 4G speeds. The HTC Inspire 4G follows in the large footsteps of the HTC Evo 4G and HD7, measuring 4.8 inches tall by 2.7 inches wide by 0.46 inch thick and weighing 5.78 ounces. The size certainly makes holding and carrying the device a bit of work, but nothing you can't get used to with some time. Plus, all things considered, it's still a pretty slim device.
It was first announced at CES in January 2011 and was released in February 2011.
Specifications
NETWORK Technology
GSM / HSPA
LAUNCH Announced 2011, January
Status Available. Released 2011, February
BODY Dimensions 122.9 x 68.1 x 11.7 mm (4.84 x 2.68 x 0.46 in)
Weight 163.9 g (5.75 oz)
SIM Mini-SIM
DISPLAY Type S-LCD capacitive touchscreen, 16M colors
Size 4.3 inches (~62.9% screen-to-body ratio)
Resolution 480 x 800 pixels (~217 ppi pixel density)
Multitouch Yes
Protection Corning Gorilla Glass
- HTC Sense UI
PLATFORM OS Android OS, v2.2 (Froyo), upgradable to v2.3 (Gingerbread)
Chipset Qualcomm MSM8255 Snapdragon S2
CPU 1.0 GHz Scorpion
GPU Adreno 205
MEMORY Card slot microSD, up to 32 GB (dedicated slot), 8 GB included
Internal 4 GB, 768 MB RAM
CAMERA Primary 8 MP, autofocus, dual-LED flash
Features Geo-tagging, face detection
Video 720p
Secondary No
SOUND Alert types Vibration; MP3, WAV ringtones
Loudspeaker Yes
3.5mm jack Yes
- Dolby Mobile, SRS sound
COMMS WLAN Wi-Fi 802.11 b/g/n, DLNA, hotspot (charges may apply)
Bluetooth v2.1, A2DP, EDR
GPS Yes, with A-GPS
Radio Stereo FM radio, RDS
USB microUSB v2.0
FEATURES Sensors Accelerometer, proximity, compass
Messaging SMS(threaded view), MMS, Email, Push Email, IM
Browser HTML, Adobe Flash
Java Yes, via Java MIDP emulator
- Dedicated search key
- MP3/AAC+/WAV/WMA9 player
- DivX/Xvid/MP4/H.264/WMV9/player
- Voice memo
- Predictive text input
BATTERY Removable Li-Ion 1230 mAh battery
Stand-by Up to 372 h
Talk time Up to 6 h
MISC Colors Black, Brown, Red
SAR US 1.14 W/kg (head)
Troubleshooting
Take a look at the Troubleshooting page
