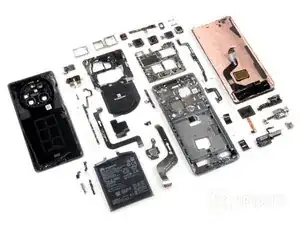

Huawei Mate 40 Pro Teardown
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Wallpaper
Background and Identification
The Huawei Mate 40 Pro was released on November 1st, 2020 starting at a price point of €1,199/$1,499 USD. It is the second cheapest Mate 40 model out a line of four, the Mate 40, the Mate 40 Pro, the Mate 40 Pro+ & the Mate 40 RS Porschedesign and the only representative Huawei released in the EU yet.
It features a 6.76 inch OLED screen and was treated with a 90Hz refresh rate we didn’t see in its predecessor, the Mate 30 Pro. Besides a glass front and a glass back (Mystic Silver, White & Black) the Mate 40 Pro offers an eco leather option (green & yellow) for the rear side of the phone. The 13 MP, ƒ/2.4, 18mm (ultrawide) front facing camera moved from a notch to a dual selfie punch hole cutout in the top left corner of the screen. The battery of the Mate 40 Pro jumped down from 4500 mAh in the Mate 30 Pro to 4400 mAh. Huawei justifies this with a more balanced and lower power consumption of the Kirin 9000 5G chipset. Additionally the phone offers the option of 66W fast charging, 50W wireless fast charging and 5W reverse wireless charging.
Specifications
Announce date: October 22, 2020
Operating System: Android 10, EMUI 11, no Google Play Services
Display:
- OLED, HDR10 , 16.7 million colors
- 90 Hz refresh rate
- 240 Hz touch sampling rate
- 2772 x 1344 pixels (~456 PPI)
Triple primary camera:
- LED flash
- Leica Optics
- 4K HDR video recording, up to 60 fps
- 5x optical zoom range
- Wide-angle module
- 50 MP
- ƒ/1.9 aperture
- Ultra-wide module
- 20 MP
- ƒ/1.8 aperture
- Telephoto module (5x optical zoom in)
- 12 MP
- ƒ/3.4 aperture
- Optical image stabilization (OIS)
Selfie camera with 3D Face Recognition:
- 13 MP
- ƒ/2.8 aperture
- 4K HDR video recording, up to 60 fps
Processor: Kirin 9000 5G, 5 nm process
- Octa-core CPU
- 24-core Mali-G78
- Dual Big Core + Tiny Core NPUs ''
RAM: 8 GB
Storage: 256, or 512 GB, Nano memory (shared SIM slot) up to 256 GB
Battery:
- Li-Po 4400 mAh, non-removable
- Fast charging 66W
- Fast wireless charging 50W
- Reverse wireless charging 5W
Sensors:
- 3D Face Recognition
- Gesture Sensor
- Fingerprint, under display (optical)
- Compass
- Barometric Pressure Sensor
- Ambient Light Sensor
- Gyro
- Gravity Sensor
- Infrared Sensor
- Accelerometer
- Proximity sensor
- Color Temperature Sensor
Wireless Connectivity:
- 802.11 Wi‑Fi 6, 2.4 GHz and 5 GHz
- 5G SA&NSA, Sub-6G&mmWave, LTE
- Bluetooth 5.2, A2DP, LE
- NFC
Dimensions: 162.9 x 75.5 x 9.1 mm (Glass) / 9.5mm (Leather)
Weight: 212 g (7.48 oz)
Water Resistance: IP68
Colors:
- Glass: Mystic Silver, White, Black
- Leather: Green, Yellow
The Mate 40 Pro is delivered including: Charger, Type-C USB cable, Type-C earphones & a flexible clear case
Additional Information
- Official Tech Specifications
- Wikipedia: Huawei Mate 40
