JLab Pro-7 Repair Guide

This tablet made by the Apollo group and began to be sold in 2014. One of the first things to look for is the product’s Logo on the backside of the tablet. The logo looks like three “J”s in a cube shape. To the right of this logo it should say JLab. Every JLab pro 7 should have this aesthetic. This tablet being the first iteration of the JLab Pro line, it is is much easier to identify compared to tablets with various models and generations.

Reparaturanleitungen

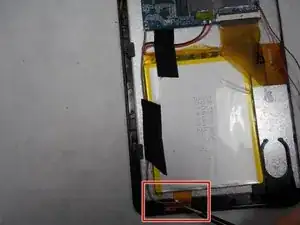

Battery

Front Facing Camera

Motherboard

Speaker

Wireless Antenna

Demontageanleitungen

JLab Pro-7 Disassembly

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

The JLab Pro 7 is a 7 inch tablet that offers 8GB of storage with an expandable microSD memory slot for an additional 32GB of space. This tablet has a dual-core Cortex A7 1.2 GHz Processor running Android 4.4 KitKat with corresponding 512 MB of ram. On the front you will find a .3 MP front facing camera on the upper left. There is a 7 inch LCD touch controlled display at 1024 x 600 screen resolution. There is built in wifi able to connect to home networks and hotspots. Speakers are integrated into the tablet. For battery there is an installed 2,400 mAh lithium-polymer battery that provides up to 4 hours run time. There is also a microSD slot for charging and connecting.
