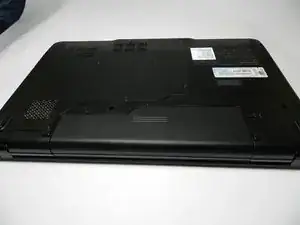

Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are not sure what is wrong with your Lenovo, head over to the Lenovo Essential G560 Troubleshooting.
Background and Identification

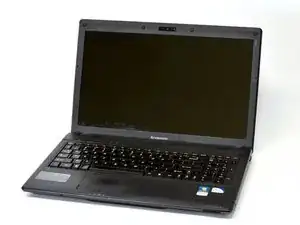

The Lenovo Essential G560 laptop is part of the G series from Lenovo. The G560 model was released in 2010, weighs 5.73 lbs, and is approximately 14.8 x 9.8 x 1.37 inches.
For additional identification information, search for your model description on the Laptop Identification Tag, located on the underside of your computer.

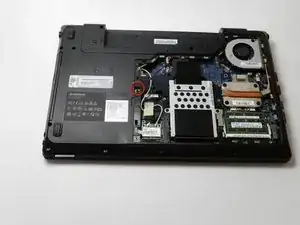

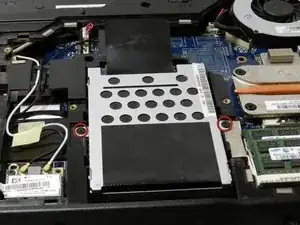

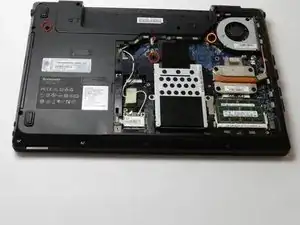

This laptop is not very difficult to repair. Once the back panel has been removed, the laptop components are not difficult to remove or replace. Most parts within the laptop can be purchased from an electronics store, with the exception of the keyboard. The keyboard is specialty made for the Lenovo Essential G560 and should be purchased directly from Lenovo.
Technical Specifications
CPU
This laptop comes with one of the following CPUs, depending on the model purchased
- Intel® Core™ i5-520M (2.40GHz, 3MB Cache)
- Intel® Core™ i5-430M (2.26GHz, 3MB Cache)
- Intel® Core™ i3-350M (2.26GHz, 3MB Cache)
- Intel® Core™ i3-330M (2.13GHz, 3MB Cache)
- Intel® Core™ Pentium-P6200 (2.13GHz, 3MB Cache)
Operating System
- Windows® 7 Home Premium
Memory
- 2GB
- 4GB (DDR3)
Graphics
- Intel® HD Graphics (integrated)
Dimensions
- 376.8mm x 249.8mm x 34.9mm (14.8" x 9.8" x 1.37")
Optical Drive
- Tray-in DVD reader/writer
Camera
- 2.0MP integrated webcam
Display
- 15.6" LED backlit HD VibrantView display (16:9 widescreen)
Weight
- 2.6 kgs (5.73 lbs)
I/O Ports
- 2 USB 2.0 ports
- 1 eSATA/USB combo port
- ExpressCard/34 slot (optional)
- Headphone jack
- Mic jack
- VGA port
- HDMI port
- RJ-45
- 5-in-1 card reader (MMC/MS/MS-Pro/SD/xD-PC) Storage
- 250GB, 320GB, 500GB (5,400 rpm)
Wireless Connectivity
- b/g/n wireless 10/100 Mbps Ethernet
Keyboard
- Full-size ergonomic keyboard
Battery Life
- Up to 4 hours / 6-cell battery
