Background and Identification

The Lenovo ThinkPad E570 is a 15.6-inch notebook computer from Lenovo marketed as a business and security-oriented system. The E570 was released as part of Lenovo’s ThinkPad E Series (previously called ThinkPad Edge), which is a notebook computer series introduced in 2012 by Lenovo. The E Series was marketed towards small and medium-sized businesses. The seventh-generation E Series computers were released in 2016 and can be identified by a model number with the format “Ex7xx.”

The E570 and E575 include 15.6-inch displays and optional Windows 10 64-bit systems. The E70 uses the 7th Generation Intel Core processor, while the E575 uses an AMD processor but is otherwise similar to the E570. The E570p variant was released in 2017 and includes a high-power CPU and a mainstream GPU. The E570 includes two USB 3.0 ports and one USB 2.0 port with an HDMI and a VGA port. The computer’s battery can last up to 7.6 hours when new.

The E570 model includes Windows 10 Pro, a fingerprint reader, and a TPM (Trusted Platform Module) chip to encrypt files. It includes a 2.5 GHz Intel Core i5-7200U dual-core processor and 4 GB of DDR4 RAM. The user’s data is stored in a 500 GB 7200 RPM hard drive that can store large format files such as pictures and movies.

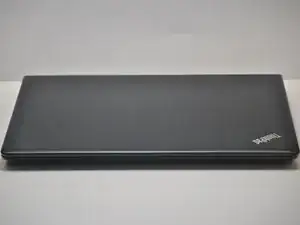

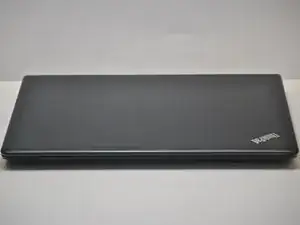

Lenovo ThinkPad E570 computers include the name "ThinkPad" in the lower right-hand corner of the laptop, underneath the keyboard at a 45-degree angle from the bottom edge of the device. It also includes the name "Lenovo" in lower-case letters in the bottom left-hand corner of the laptop's display.

Technical Specifications

Performance:

  • Processor: Intel Core i5-7200U Dual-Core
  • Base Clock Speed: 2.5 GHz
  • Maximum Boost Speed: 3.1 GHz
  • Total Installed Memory: 4 GB
  • Maximum Memory Capacity: 32 GB
  • Memory Type: DDR4 SDRAM
  • Memory Speed: 2400 MHz
  • Memory Slots: (1 Available)
  • Memory Slot Type: 260-Pin SO-DIMM
  • Graphics Type: Integrated
  • GPU: Intel HD Graphics 620

Display:

  • Panel Type: Unspecified LCD
  • Size: 15.6"
  • Aspect Ratio: 16:9
  • Resolution: 1366 x 768
  • Touchscreen: None

Drives:

  • Total Installed Capacity: 500 GB
  • Hard Disk Storage: 1 x 500 GB 2.5" SATA (7200 rpm)
  • Optical Drive: SuperMulti DVD Burner

Input/Output Connectors:

  • Ports:
    • 2 x USB 3.1 Gen 1 Type-A
    • 1 x USB 2.0 Type-A
  • Display: 1 x HDMI
  • Audio:
    • 1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
    • 2 x Integrated Microphone
    • 2 x Integrated Speaker
  • Media Card Slots
    • SD/SDHC/SDXC
    • MMC

Communications:

  • Network: 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • Modem: None
  • Wi-Fi: Wi-Fi 5 (802.11ac)
  • MU-MIMO Support: 1 x 1
  • Bluetooth: Bluetooth 4.1
  • Mobile Broadband: None
  • GPS: None
  • NFC: None
  • Webcam: User-Facing: 720p

Battery:

  • Battery Chemistry: Lithium-Ion
  • Watt-Hours / Type: 41 Wh
  • Cells: 4
  • Power Supply: 45 W

General:

  • Operating System: Windows 10 Pro (64-Bit)
  • Security: Infineon TPM Software Professional Package, Fingerprint Reader
  • Keyboard: Standard Notebook Keyboard
  • Pointing Device: TouchPad & Pointing Stick
  • Dimensions (W x H x D): 14.9 x 1.0 x 10.3" / 378.5 x 25.4 x 261.6 mm
  • Weight: 5.07 lb / 2.30 kg
