Motorola Moto G Power (2020) Repair

For any help identifying issues with your device, check out our troubleshooting page.

Moto G Power released in 2020 with its powerful 5000 mAh battery, you can go up to three full days on a single charge—and do the things you want without worrying about recharging. Shoot a panorama, close up, or anything in between with a versatile triple camera system. And thanks to the 6. 4” Max Vision Full HD+ display and dual stereo speakers tuned by Dolby, you’ll have an all-access pass to the world of entertainment. New moto g power. Power for life.

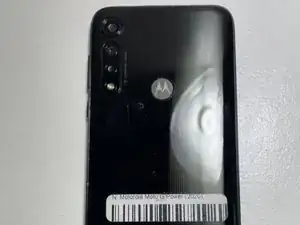

You can identify this device by going to settings, checking your manuals received with the original delivery package, and on the back of the device. If you cannot identify the device, look for the Motorola Logo in the back and check the website to find out about what kind of device you have. This guide is for Motorola Moto G Power (2020)

Dimensions 159.85 x 75.84 x 9.63mm (6.30 x 2.98 x 0.38 in)

Weight 199 g (7.02 oz)

Build Glass front, plastic back, aluminum frame (6000 series)

SIM Nano-SIM

Type IPS LCD capacitive touchscreen, 16M colors

Size 6.4 inches, 100.7 cm² (~83.0% screen-to-body ratio)

Resolution 1080 x 2300 pixels (~399 ppi density)

OS Android 10

Chipset Qualcomm SDM665 Snapdragon 665 (11 nm)

CPU Octa-core (4x2.0 GHz Kryo 260 Gold & 4x1.8 GHz Kryo 260 Silver)

GPU Adreno 610

Card Slot microSDXC (dedicated slot)

Internal 64GB 4GB RAM

16 MP, f/1.7, (wide), 1/2.8", 1.12µm, PDAF
8 MP, f/2.2, 118˚ (ultrawide), 1/4.0", 1.12µm
2 MP, f/2.2, (macro), 1/5.0", 1.75µm

Features Shot optimization, Auto smile capture, Gesture selfie, Smart composition, HDR, Timer, Active photos, Manual mode, Portrait mode, Portrait lighting, Cutout, Macro, Spot color, Cinemagraph, Panorama, Live filter, High-res zoom, RAW photo ouput, Best shot, Google Lens™ integration

Video 4K@30fps, 1080p@30/60fps, 1080p@30fps (gyro-EIS)

16 MP, f/2.0, (wide), 1/3.0", 1.0µm

Features HDR

Video 1080p@30/120fps

Battery Non-removable Li-Po 5000 mAh

Charging 10W rapid charging

Battery Life Up to approximately 3 days

Dual stereo speakers tuned by Dolby

3.5mm jack

2 Microphones

WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot

Bluetooth 5.0, A2DP, LE

GPS Yes, with AGPS, LTEPP, SUPL, Glonass, Galileo

FM Radio Yes

USB 2.0, Type-C 1.0 reversible connector

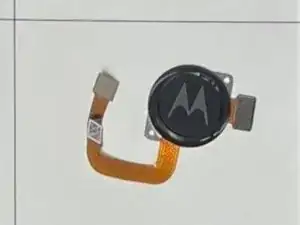

Sensors Fingerprint (rear-mounted), accelerometer, gyro, proximity
