Reparaturanleitungen

Back Casing

Back Casing

 en
Flash

Flash

 en
Lens

Lens

 en

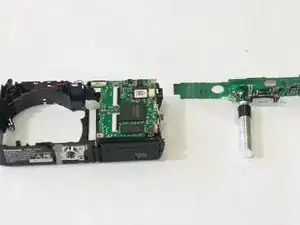

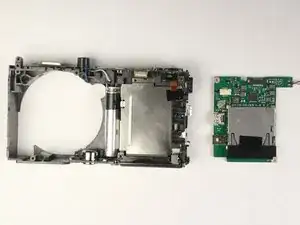

Motherboard

Motherboard

 en
Screen

Screen

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

For more information regarding common troubleshooting issues, visit the Panasonic Lumix DMC-ZS35 Troubleshooting Page.

Background and Identification

The Panasonic Lumix ZS35 (Model Number: DMC-ZS35) was released on January 6th, 2014. It is 1920x1080 video recording-capable and has Wi-Fi connectivity built-in. Designed to be a point-and-shoot camera, the ZS35 sports a compact, light shell usually seen in black. The ZS35 includes a digital screen on the back of the device, able to unfold and flip to face the front for taking selfies with ease.

Item Specifications

  • Height: 2.4 in. (62mm)
  • Width: 2.4 in. (107mm)
  • Depth: 1.3 in. (32mm)
  • Sensor Size: 1/2.33 in. (6.1mm x 4.6mm)
  • Lens: 20.00x zoom (24-480mm eq.)
  • Viewfinder: No / LCD
  • Native ISO: 100 - 3200
  • Shutter: 1/2000 - 30 sec
  • Max Aperture: 3.3
  • Body type: Compact
  • Max resolution: 4608 x 3456
  • Other resolutions: 4608 x 3072, 4608 x 2592, 3456 x 3456, 3264 x 2448, 3264 x 2176, 2048 x 1536, 2048 x 1360, 1536 x 1536, 1920 x 1080, 640 x 480
  • Image ratio w:h: 1:1, 4:3, 3:2, 16:9
  • Effective pixels: 16 megapixels
  • Sensor photo detectors: 18 megapixels
  • Sensor size : 1/2.33" (6.08 x 4.56 mm)
  • Sensor type: CMOS
  • ISO: Auto, 100, 200, 400, 800, 1600, 3200 (boost to 6400)
  • White balance presets: 4
  • Custom white balance: Yes
  • Image stabilization: Optical
  • Uncompressed format: No
  • JPEG quality levels: Fine, standard
  • Focal length (equiv.): 24-480 mm
  • Optical zoom: 20x
  • Autofocus: Contrast Detect (sensor), Multi-area, Center, Tracking, Single, Continuous, Face Detection, Live View
  • Digital zoom: Yes (2X)
  • Manual focus: No
  • Normal focus range: 50 cm (19.69")
  • Macro focus range: 3 cm (1.18")
  • Number of focus points: 21
  • Articulated LCD: Tilting
  • Screen size: 3"
  • Screen dots: 460,000
  • Touch screen: No
  • Screen type: TFT LCD (180-degree tilt) with AR coating
  • Live view: Yes
  • Viewfinder type: None
  • Maximum aperture: F3.3 - F6.4
  • Minimum shutter speed: 4 sec
  • Maximum shutter speed: 1/2000 sec
  • Aperture priority: Yes
  • Shutter priority: Yes
  • Manual exposure mode: Yes
  • Subject / scene modes: Yes
  • Built-in flash: Yes
  • Flash range: 6.00 m
  • External flash: No
  • Flash modes: Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off
  • Self-timer: Yes (2 or 10 sec)
  • Metering modes: Multi, Center-weighted, Spot
  • Exposure compensation: ñ2 (at 1/3 EV steps)
  • AE Bracketing: ñ1 (3 frames at 1/3 EV, 2/3 EV, 1 EV steps)
  • WB Bracketing: No
  • Videography: Format: MPEG-4
  • Videography: Microphone: Mono
  • Videography: Speaker: Mono
  • Videography: Resolutions: 1920 x 1080 (30p), 1280 x 720 (30p), 640 x 480 (30p)
  • Storage types: SD/SDHC/SDXC, Internal
  • USB: USB 2.0 (480 Mbit/sec)
  • HDMI: Yes (micro HDMI)
  • Wireless: Built-In
  • Wireless notes: 802.11 b/g/n
  • Remote control: Yes (via smartphone)
  • Environmentally sealed: No
  • Battery Type: Lithium-ion battery
  • USB charger: Yes
  • Orientation sensor: Yes
  • GPS: None
