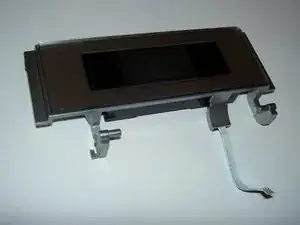

CD Tray Cover
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Identification and Background

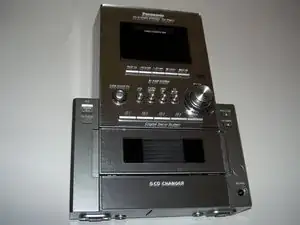

The Panasonic SA-PM17 is a 84dB/W, 2 way speaker stereo that features a 5 disc CD changer, audio cassette tray, AM/FM radio, and a remote control. The stereo can be distinguished from other Panasonic models by its combination of a brushed steel finish and an extra LED screen on the CD tray cover.
The product was originally released in 2002 and is one of several different SA-PM models that have been released both before and after it. Since its release, Sony has discontinued production of the stereo in pursuit of home theater packages and "MP3 Docking Solutions" such as the SC-HC series.
Troubleshooting
If you are experiencing problems with your SA-PM stereo, consult our troubleshooting guide that can provide solutions for common problems.
Panasonic SA-PM17 Troubleshooting Guide
Technical Specifications
General
Power Supply: AC 120V, 60Hz
Power Consumption: 85W
Standby: Approx 0.5W
Dimensions (WxHxD):
179 x 241 x 375 mm
7 1/16 x 9 1/2 x 14 3/4 in
Mass: 5.6kg(12.3 lb.)
Amplifier
Power Output:
10% Total harmonic distortion
60 Hz-3kHz, both channels driven (Low - 15W per channel)
3kHz-16kHz, both channels driven (High - 20W per channel)
Total Bi-Amp Power - 35W per channel
Input Sensitivity:
AUX: 250mV
Input Impedance:
AUX: 11.8 kOhms
AM/FM Tuner
FM Tuner Frequency Range: 87.9 - 107.9MHz
AM Tuner Frequency Range: 520 - 1710kHz
Cassette Deck Section
Track System: 4 track, 2 channel
Motor: DC Servo Motor
Tape Speed: 4.8 cm/s
Additional Information
For the original Panasonic SA-PM17 Manual, visit:
