Identification

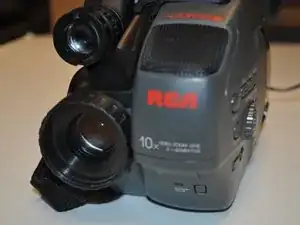

The RCA Small Wonders Camcorder CC176 was first released in 1993. It uses a VHS-C tape to do its recordings. It was one of the first RCA cameras with an auto-focus feature that was a huge in its time of realease. One of the few things that allow you to tell if it is a cc176 camcorder is the mixture of the black and gray color to its design, along with the small and compact view of it all.
Troubleshooting
If having problems with you camera check out our RCA Small Wonders CC176 Troubleshooting page
Design Specifications
General
- Power Requirement: 6VDC
- Power Consumption: 6 watts (normal)
- Weight: 1.6 lbs (690g)
- Dimensions: 184 x 120 x 111mm
Video Recorder Section
- Format: VHS-C
- Record/PLayback System: Two video record/playback heads and One flying erase head
- Video Signal: EIA Standard NTSC color
Camera Section
- Image Sensor: 1/3" CCD Imager
- Tripod Mount: 1/4" x 20 threaded hole
- Lens: fl/ 1.8
- 10:1 (6-60mm)
- Diameter: 43mm
