Gear Box
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification

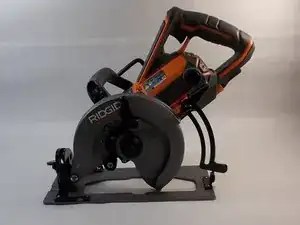

The RIDGID R32104 is a 15 Amp, 7 ¼ in. Worm Drive Saw was released in 2016. The model number is located on the side of the saw’s motor. What makes this a Worm Drive Saw is that the motor is located behind the device’s blade. This RIDGID saw model is compatible with a THUROCOOL motor. This kind of technology allows air to freely flow through the center of the saw’s motor and escape out from the sides of the device for efficient cooling. The saw is noted to be lightweight, compact, and utilizes enhanced technology to improve its speed and overall performance. The RIDGID R32104 has not faced any kind of large-scale recalls and generates favorable reviews. These are the features associated with the RIDGID R32104:
- Visible oil sight to check the oil for maintenance.
- Sky hook for easy storage.
- Protected cord relief durable cover.
- Cast aluminum base.
Specifications
- Depth: 20.94 in
- Height: 8.50 in
- Width: 8.31 in
- Blade Diameter: 7.24 in
- Max cut depth @ 90 deg: 2.375 in
- Amperage: 15
- Bevel Capacity: 56
- Blade Location: Left
- Cord Length: 6 ft., Keyed
- Max cut depth at 45 deg: 1.75 in
- Max speed RPM: 5,000
- Weight: 15.37 Lbs
Source: Ridgid R32104 Specifications
