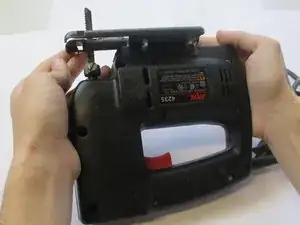

Disassembling SKIL 4235 Jigsaw Base plate
Troubleshooting
For more information regarding common troubleshooting issues check out.
Identification and Background

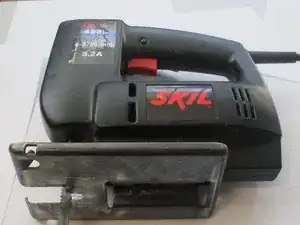

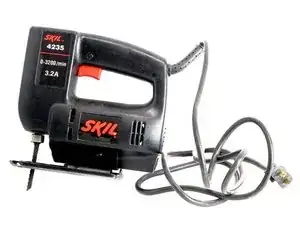

The SKIL 4235 variable speed jigsaw has a 3.2 AMP motor which provides plenty of power for all types of cutting jobs.
- Brand: SKIL
- Model #: 4235
- Weight: 3.5 lbs
- Dimensions: Width 9 in, Height 3 in, Depth 8 in
- Amazon Sales Rank: #494403 in Home Improvement
Max Capacity:
2 inch soft wood, plywood;
1 1/4 inch hard wood, plastic;
3/8 inch aluminum;
3/16 inch mild steel;
3/32 inch steel;
Great tool box filler: 0-3200 RPM; 120v; 50-60Hz
The tool uses a 120V AC input similar to the ones in your household wall socket.It is used to power a small blade. Furthermore, it has an on/off trigger switch, tilting foot (0 and 45 degrees), anti-splintering base, lock on button, directed airflow to clean the cut line, and a handy place for blade storage on the tool. 5/8 in. stroke length and 0-3,200 strokes/minute will cut hardwood 1-1/4 in. thick and softwood 2 in. thick. The product was made is USA and was released in....(?)
