Background

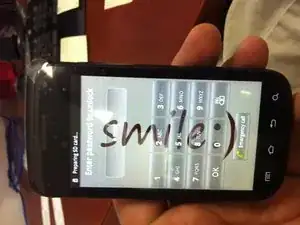

The Samsung Galaxy W (Wonder) is a smaller, less powerful variant of the Galaxy S2. Released in 2011, the Wonder has a 3.7 inch LCD touchscreen and runs on a 1.4 GHz Qualcomm processor. It is succeeded by the Galaxy S3 Mini.

Specifications

Processor

  • 1.4 GHz Qualcomm MSM8255T
  • Adreno 205 GPU

Memory

  • 512 MB RAM
  • 4 GB flash memory
  • MicroSD Slot

Display

  • Resolution: 480 x 800 pixels (252 ppi)
  • Panel: 3.7 inch TFT LCD

Camera

  • Resolution: 5 MP rear with autofocus, VGA front selfie
  • Flash: Single LED flash

Battery

  • Capacity: 1500 mAh Lithium-ion

Design

  • Dimensions: 4.55 x 2.35 x 0.45 inches
  • Weight: 3.9 oz.

Connectivity

  • Micro-USB 2.0
  • Headphone jack
  • Bluetooth 3.0
  • Wi-Fi 802.11 a/b/g/n
  • GPS
  • GSM 800, 900, 1800, 1900 MHz
  • HSDPA 850,900,1900, 2100 MHz
