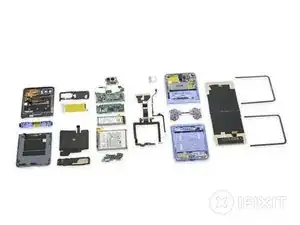

Samsung Galaxy Z Flip Teardown
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Wallpapers
Check out our Galaxy Z Flip teardown wallpapers! Choose from iFixit or Creative Electron (X-ray) versions.
Background and Identification
Just days after the official launch of the Motorola’s official launch of their folding Razr smartphone, Samsung held their Galaxy Unpacked 2020 event and announced their own clamshell-folding smartphone: the Galaxy Z Flip. Unlike both the Razr and Samsung’s own Galaxy Fold, the Z Flip is the first folding phone to feature a folding glass display. Much of the criticism of modern folding devices has been directed at their fragile plastic displays, which are generally inferior to modern glass displays in both durability and image quality. Samsung clams to have remedied those problems with the Z Flips new display.
The Galaxy Z Flip was announced on February 11th, 2020 and available for purchase (with limited availability) three days later on the 14th of February.
Technical Specifications
Displays:
- Main display
- 6.7 FHD+ Dynamic AMOLED Display (21.9:9)''
- 2636 x 1080 resolution (425ppi)
- Cover display
- 1.1'' Super AMOLED Display
- 300 x 112 resolution (303ppi)
Battery: 3300 mAh (typical) dual battery
Cameras:
- Rear Cameras
- 12 MP Ultra Wide Camera
- Pixel size: 1.12 μm
- FOV: 123˚
- F.No (aperture): F2.2
- 12 MP Wide-angle Camera
- Super Speed Dual Pixel AF, OIS
- Pixel size: 1.4 μm
- FOV: 78˚
- F.No (aperture): F1.8
- 12 MP Ultra Wide Camera
- Front Camera
- 10MP Selfie Camera
- Pixel size: 1.22 μm
- FOV: 80˚
- F.No (aperture): F2.4
- 10MP Selfie Camera
Processor: 2.95 GHz ''64-bit Octa-Core Processor, varies by region
Memory: 8 GB RAM with 256 GB internal storage
Operating System: Android 10
Size:
- Folded: 73.6 x 87.4 x 17.3mm
- Unfolded: 73.6 x 167.3 x 7.2mm
- Weight: 183g
Additional Information
Samsung: Galaxy Z Flip Specs
YouTube: Galaxy Unpacked event
