Siemens Maquet Servo-i Pre-Use Check
Background and Identification

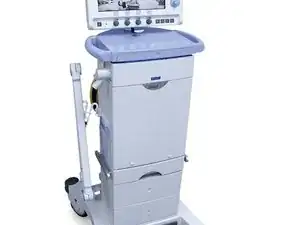

The Servo-i Ventilator System is a mechanical ventilator intended for treating and monitoring patients with respiratory failure or respiratory insufficiency, either in health care facilities or during transport between facilities. It comes in Infant, Adult, and Universal configurations.
The Maquet Siemens SERVO-i was the first ventilator on the market engineered to evolve with medical professionals changing needs. This philosophy secures lasting value for your investment. MAQUET is committed to continuous development of the platform. Since 2001 MAQUET has released new functionality for the Siemens Servo-I on a yearly basis with 100% backwards compatibility. Upgrading is a snap: software and add-on modules update functionality to ensure all clinical requirements are met.
Technical Specifications
Model: VENTILATOR SYSTEM SERVO-i V3.0
Release Date: 2001
Power Supply
- Power supply, automatic range selection
- 100 – 120 V AC ±10%
- 50 – 60 Hz
- 220 – 240 V AC ±10%
- 50 – 60 Hz
- Plug-in battery module
- Battery backup: Two battery modules are delivered with the ventilator.
- 50 – 60 Hz
- 220 – 240 V AC ±10%
- 50 – 60 Hz
- Battery capacity: Rechargeable, 12 V, 3.5 Ah each
- Recharge time: Approximately 3 h/battery
- Battery backup time: At least 3 h, when using six batteries.
- External 12 V DC: 12.0 V – 15.0 V DC, 10 A
- Max power consumption
- At 100 – 120 V: 2 A, 190 VA, 140 W
- At 220 – 240 V: 1 A, 190 VA, 140 W
Features: sSress Index, Open Lung Tool, Heliox, Automode, on-screen diaphragm EMG, NAVA and NIV NAVA, MR Conditional, HBO Conditional
Additional Information
Here are some helpful videos and forums to learn more about the ventilator:
