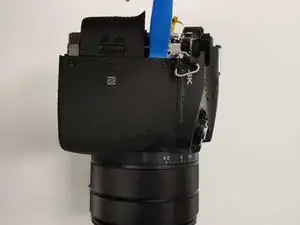

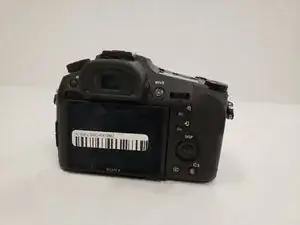

Back and Right Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

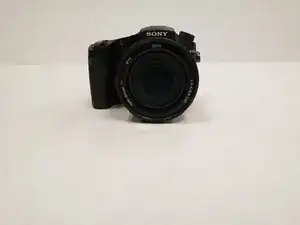

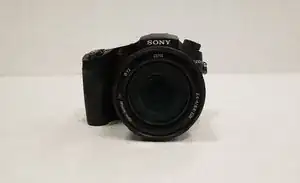

Device Images
Troubleshooting
If you are having issues with Sony DSC-RX10M3, refer to the Troubleshooting Page
Background and Identification
This camera’s main target is professional photographers, due to the number of features it has. Overall the device has been performing very well with little complaints, the device review can be found here. The Sony DSC-RX10M3 has two models between it the Sony DSC-RX10M2 for its prequel device and the Sony DSC-RX10M4 being the sequel device. The Sony DSC-RX10M4 is the latest device releasing in 2017 with no later models to date.

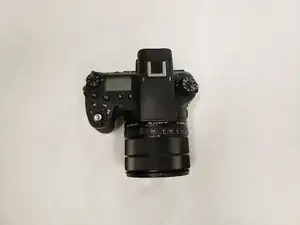

The only way to identify the device is with the model version on the camera itself. Toward the right side (camera lens facing directly toward the user) there should be a “RX10M” with Roman numerals indicating its version (this device should have III). The device only comes in black. The main physical characteristics of the device are the zoom dial located on the lens, a dial on the top left to change the photography mode, it has an LCD screen at the top to indicate details like aperture, shutter speed and ISO, a large LCD at the back of the device to view menus, pictures and videos and lastly some ports on the sides for headphones, a memory card, a removable battery and an HDMI. A fun fact about this device is that it has WiFi, so it can connect to computers and TVs, over a stable connection.
Specifications
Dimensions:
Size: 132.5 x 94.0 x 145.0 mm
132.5 x 94.0 x 127.4 mm (from front of lens to monitor)
5 1/4 x 3 3/4 x 5 3/4 in, 5 1/4 x 3 3/4 x 5 1/8 in (from front of lens to monitor)
Weight: 1095 g (Approximately)
Camera Modes:
Steady-shot mode , Self-Timer Consecutive Shoots 2-10s, Various Shooting Modes (Auto, Movie, Panorama), Image Control and more
Lens:
Aperture: F2.4-F4.0
Focal Length: f=8.8-220mm
Optical Zoom: 25x
Digital Zoom: 100x
Screen:
7.5 cm (4:3 Aspect Ratio) LCD display
Adjustable Screen:
- Up - approx. 107 degrees
- Down - approx. 42 degrees
Recording:
Color Space: sRGB / Adobe RGB
Records Media to SD Card, Micro SD Card or Internal Storage
Interface:
I/O: HDMI, Micro USB, 3.5mm Headphone Jack
NFC
Wifi
Power:
DC 7.2V / DC 5.0
Rechargeable Battery Pack NP-FW50
USB Charge / Power Supply
