Background and Identification

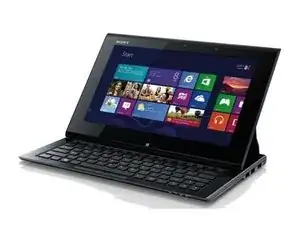

The Sony Vaio Duo 11 is a touchscreen laptop that features Microsoft’s touch-oriented operating system. It is a hybrid tablet/Ultrabook that features a 1.7 GHz Intel Core i5-3317U Dual-Core processor and a capacitive 11.6-inch full HD display. It also includes 128 GB of internal storage and has an internal flash reader for SD and Memory Stick cards. The Duo 11 was released in summer 2012.

The Duo 11 includes 6 GB of 133 MHz DDR3 RAM. A user’s finger (or the included stylus) can be used for writing, drawing, and controlling screen actions. It features an IPS (in-plane switching) screen that provides a wider viewing angle. It has a display resolution of 1920 by 1080 pixels and features LED backlighting for improved viewing for less battery usage. The laptop can run all PC software built for the x86 software. It includes full-sized ports for VGA, HDMI, Ethernet, and USB 3.0. It also includes dual rear- and front-facing 2.4-megapixel cameras and an integrated microphone.

The Duo 11 features a sliding design that allows the user to slide the screen to lie flush with the device’s keyboard. To use the 83-key QWERTY keyboard, users slide the screen forward and lean the screen against the keyboard.

The Sony Vaio Duo 11 can be identified by the name “Sony” in capital letters in the front left corner of the screen’s bezel. The Vaio emblem is included on the back of the laptop, which includes the name “Vaio” in a stylized font. The laptop can be folded into a tablet.

Technical Specifications

Sony Vaio Duo 11 SV-D1121X9EB (Vaio Duo Series)

Processor: Intel Core i5-3317U 2 x 1.7 - 2.6 GHz, Ivy Bridge

Graphics adapter: Intel HD Graphics 4000, Core: 1050 MHz

Memory: 4096 MB, Onboard, Dual-Channel, DDR3L SDRAM

Display:

  • Size: 11.6 inches
  • Resolution: 16:9, 1920 x 1080 pixel
  • Capacitive, Multi-touch touchscreen
  • VAIO Plus-Display, IPS
  • Glossy: yes

Mainboard: Intel HM76 (Panther Point)

Storage: Toshiba THNSNS128GMCP, 128 GB, mSATA SSD, 6 Gb/s

Soundcard: Conexant Cx20584 High Definition Audio-Controller

Connections:

  • 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI
  • Audio Connections: stereo mini-jack combined
  • Card Reader: Memory Stick Duo, SD (SDHC and SDXC support)
  • Sensors: G-Sensor, Battery interface for an additional battery VGP-BPSC31

Networking

  • Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s)
  • Intel Centrino Advanced-N 6235 (a/b/g/n = Wi-Fi 4)
  • Bluetooth 4.0 + HS

Size: height x width x depth (in mm): 17.85 x 320 x 199 ( = 0.7 x 12.6 x 7.83 in)

Battery: 37 Wh Lithium-Ion, BPS31 3900 mAh

Operating System: Microsoft Windows 8 Pro 64 Bit

Camera: Webcam: Rear/Front: VGA 640 x 480 / FHD 1920 × 1080 2,07 MP

Additional features

  • Speakers: Stereo Dolby Home Theater v4
  • Keyboard: Chiclet
  • Keyboard Light: yes
  • Digitizer Pen
  • McAfee Internet Security (30-day trial)
  • McAfee Parental Controls
  • Intel Anti-Theft Service (90-day trial)
  • Vaio Transfer Support, Update, Care, PlayMemories Home, VAIO Gate, Message Center

Weight: 1.287 kg ( = 45.4 oz / 2.84 pounds), Power Supply: 280 g ( = 9.88 oz / 0.62 pounds)
