Sony Xperia ZR C5503 Teardown

Sony Xperia ZR C5503 Teardown

 en

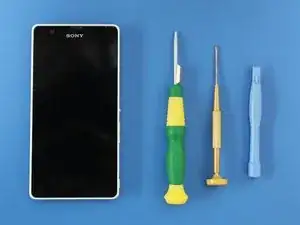

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

The Sony Xperia ZR is an Android smartphone produced by Sony Mobile Communications and released in June 2013. The Xperia ZR includes model numbers C5503 and C5502. The Xperia ZR was released in black, white, pink, and mint body colors.

The Xperia ZR features a scratch-resistant glass 4.55-inch display with a resolution of 720 by 1280 pixels and a pixel density of 323 pixels per inch. It includes 8 GB of internal storage and 2 GB of RAM. The device’s internal storage can be expanded up to 200 GB with a dedicated microSDXC card slot. The Xperia ZR is preinstalled with Android 4.1.2 Jelly Bean with Sony’s custom interface and software. The ZR’s operating system can be upgraded up to Android 5.1.1. The phone includes a 13.1-megapixel main camera and a VGA selfie camera, which is equivalent to a 0.3-megapixel camera. It contains a 2300 mAh removable battery, meaning the battery’s adhesive is not permanent, making repair and replacement easier than for non-removable batteries.

According to a review of the Sony Xperia ZR from PhoneArena, the phone includes decent water-resistance but has a thicker profile than the Xperia Z. The MicroUSB and 3.5mm ports are protected by tight plastic covers which help with the phone’s water-resistant feature but can be difficult to remove, according to PhoneArena.

Technical Specifications

Models: C5503, C5502

Release date: June 2013

Body:

  • Dimensions and Weight: 131.3 x 67.3 x 10.5 mm (5.17 x 2.65 x 0.41 in)
  • Build: 138 g (4.87 oz)
  • SIM: Micro-SIM
  • IP58 dust proof and water resistant over 1.5 meter and 30 minutes

Display:

  • Type: TFT
  • Size: 4.55 inches, 57.1 cm2 (~64.6% screen-to-body ratio)
  • Resolution: 720 x 1280 pixels, 16:9 ratio (~323 ppi density)
  • Protection: Shatter proof glass

Platform:

  • OS: Android 4.1.2 (Jelly Bean), upgradable to 5.1.1 (Lollipop)
  • Chipset: Qualcomm APQ8064 Snapdragon S4 Pro
  • CPU: Quad-core 1.5 GHz Krait
  • GPU: Adreno 320

Memory:

  • Card slot: microSDXC (dedicated slot)
  • Internal: 8GB 2GB RAM

Main Camera:

  • Single: 13.1 MP, f/2.4, AF
  • Features: LED flash, HDR
  • Video: 1080p@30fps, HDR

Selfie Camera:

  • Single: VGA

Sound:

  • Loudspeaker: Yes
  • 3.5 mm jack: Yes

Communications:

  • WLAN: Wi-Fi 802.11 a/b/g/n, dual-band, Wi-Fi Direct, DLNA, hotspot
  • Bluetooth: 4.0, A2DP
  • GPS: Yes, with A-GPS, GLONASS
  • NFC: Yes
  • Radio: Stereo FM radio, RDS
  • USB: MicroUSB 2.0 (MHL TV-out)

Features:

  • Sensors: Accelerometer, gyro, proximity, compass

Battery:

  • Li-Po 2300 mAh, removable
  • Stand-by: Up to 470 h (2G) / Up to 520 h (3G)
  • Talk Time: Up to 11 h (2G) / Up to 13 h (3G)
  • Music Play: Up to 45 h

Misc:

  • Colors: Black, White, Pink, Mint
  • SAR: 1.25 W/kg (head)     0.76 W/kg (body)
  • SAR EU: 0.79 W/kg (head)
