Synology DiskStation DS1019 Repair

The Synology DiskStation DS1019++ is a five-bay Network-Attached Storage device. A Network-Attached Storage device is a file-level (as opposed to block-level storage) computer data storage server that is connected to a computer network. The device provides data access to a group of clients and is specialized for serving files either by its hardware, software, or configuration. NAS systems are often produced as computer appliances produced with specialized purposes. Network-attached storage systems remove the responsibility of file serving from other servers on the network.

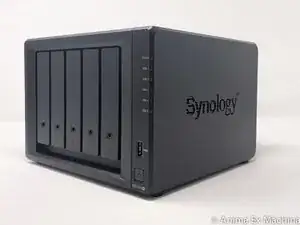

The Synology DiskStation DS1019+ includes the name “Synology” on the side of its rectangular body.

CPU Intel Celeron J3455 quad-core 1.5GHz, burst up to 2.3GHz

Hardware encryption engine Yes (AES-NI)

Hardware transcoding engine

• Supported codecs: H.264 (AVC), H.265 (HEVC), MPEG-2, VC-1
• Maximum resolution: 4K (4096 x 2160)
• Maximum frames per second (FPS): 30

Memory 4 GB DDR3L Non-ECC SO-DIMM x 2 (provides 8GB memory capacity in total)

Compatible drive type

• 5 x 3.5” or 2.5” SATA HDD/SSD Hot swappable drive (drives not included)
• 2 x M.2 2280 NVMe SSD (drives not included)

External port

• 2 x USB 3.0 port
• 1 x eSATA port
• LAN 2 x Gigabit (RJ-45)

Size (HxWxD) 166 x 230 x 223 mm

Weight 2.54 kg

System fan 2 (92 x 92 x 25 mm)

AC input power voltage 100V to 240V AC
