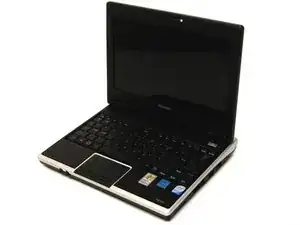

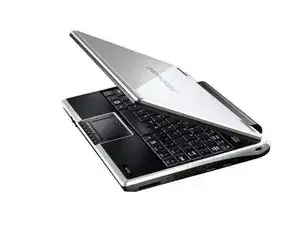

Toshiba NB100 Repair

Processor

type : Intel® Atom™ processor N270
clock speed : 1.60 GHz
Front Side Bus : 533 MHz
2nd level cache : 512 KB

Operating System / Platform

Windows® XP Home Edition (Toshiba-Recovery DVD)

Design Colour

colour : Gold

System memory

standard : 1,024 MB
maximum expandability : 1,024 MB
technology : DDR2 RAM (667 MHz)

Hard disk

capacity : 120 GB
certification : S.M.A.R.T.
drive rotation : 5,400 rpm

Display

size : 8.9 "
type : Toshiba TruBrite® WSVGA TFT display with LED backlight
internal resolution : 1,024 x 600

Graphics adaptor

type : Mobile Intel® GMA 950
memory amount : up to 224 MB total available graphics memory with 512 MB system memory
memory type : shared

Internal video modes

The following internal video modes are supported :
resolution : 1,024 x 600

Max External Video Modes

Max Resolution : 2,048 x 1,536
Max Refresh Rate : 120 Hz
Non-interlaced resolution with max refresh rate : 1,600 x 1,200

Interfaces

1 × 4-in-1 Bridge Media slot (supports SD™ Cards up to 16 GB, Memory Stick® up to 256 MB, Memory Stick Pro™ up to 2 GB and MultiMedia Card™ up to 2 GB)
1 × built-in microphone
1 × DC-in
1 × external microphone
1 × external monitor
1 × headphone (stereo)
1 × RJ-45
3 (Left 1, Right 2) × USB 2.0 Sleep-and-Charge
1 × integrated VGA Web Camera

Expansion

1 × memory slot

Wired communication

topology : Fast Ethernet LAN
speed : 10BASE-T/100BASE-TX

Sound system

manufacturer : Toshiba Bass Enhanced Sound System
supported audio format : 24-bit stereo
speakers : built-in stereo speakers

Keyboard

keys : 80
Windows keys : Yes

Pointing device

type : Touch Pad

Battery

technology : lithium-ion
maximum life : up to 3h50min (Mobile Mark™ 2007)

AC adaptor

input voltage : autosensing AC adapter (100/240 V) for worldwide usage
output voltage : 19 V
output current : 3.42 A

Physical dimensions

W x D x H : 225 x 190.5 x 29.5 (front) / 33 (rear) mm
weight : starting at 0.999 kg

Warranty

1-year international warranty. Upgrade your standard warranty with dynabook warranty extension, uplift and all-risks insurance packs.

Bundled hardware

AC adaptor

Bundled software

Connectivity Doctor
McAfee® Internet Security Suite - Toshiba Edition (includes free Internet updates for 30 days)
Microsoft® Works, Microsoft® Office Home and Student 2007 (free 60-day trial)
Chicony Camera Assistant Software
ConfigFree™
Toshiba DVD Player
Toshiba Disc Creator
Toshiba User's Manual
Toshiba utilities and drivers

Toshiba EasyMedia

Built-in camera & microphone
Diversity Antenna
Integrated Bridge Media Adapter
McAfee® Internet Security Suite - Toshiba Edition
Smart Display Support
Toshiba ConfigFree™
USB Sleep-and-Charge

Security features

user password
supervisor password
HDD password on request
main memory (by screw)
main hard disk (by screw)
main battery pack (by sliding latch)
slot for Kensington Cable Lock

Special features

ENERGY STAR qualified computer
Enhanced Intel® SpeedStep® Technology
HD Audio support
SM BIOS compliant
integrated VGA Web Camera for Video over IP
integrated microphone for Voice over IP

Certification

The manufacturer declares that this product complies with the following directives and regulations for the CE-marking. Responsible for CE marking is Dynabook Europe GmbH, Stresemannallee 4b, 41460 Neuss, Germany.
