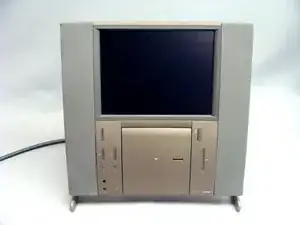

Twentieth Anniversary Mac Teardown
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Introduction Date: March 20, 1997
Discontinued Date: March 14, 1998
Processor Speed:250 MHz
Processor Type:PowerPC 603e
Details: This model has a 32-bit processor and a 64-bit data path.
Processor Upgrade:Third-Party*
FPU:Integrated
Details: *A variety of third-party processor upgrades and accelerators were available.
System Bus Speed: 50 MHz
Cache Bus Speed: N/A
ROM Type: Macintosh ROM
ROM Size: 4 MB
L1 Cache: 32k
L2 Cache: 256k
RAM Type: 168-pin DIMM
Min. RAM Speed: 60 ns
Standard RAM: 32 MB
Maximum RAM: 128 MB
Details: Supports a maximum of 128 MB of RAM with two 64 MB memory modules.
Motherboard RAM: None
RAM Slots: 2
Video Card: ATI 3D Rage II
VRAM Type: Dedicated SGRAM*
Standard VRAM: 2 MB
Maximum VRAM: 2 MB
Built-in Display: 12.1" Color*
Native Resolution: 800x600
Details: 12.1" color active-matrix (16-bit,
thousands of colors) TFT LCD.
2nd Display Support: Single Display*
2nd Max. Resolution: Variable*
Standard Hard Drive: 2.0 GB Int.
HD Interface: IDE
Standard Optical: 4X CD-ROM
Standard Disk: 1.44 MB (Manual)
Standard Modem: 33.6k (Internal)
Standard Ethernet: None
Expansion Slots: 1 PCI, Comm II*
Expansion Bays: None
Details: *This model has a single 7" PCI slot as well as a Comm II slot that is occupied by default with an internal 33.6k modem.
Case Type: All-in-One
Form Factor: 20th Anniversary Mac
Apple Order No: M3459LL/A
Apple Subfamily: 20th Anniversary Mac
Apple Model No: N/A Gestalt ID: 512
Details: This Gestalt ID is specific to this model.
Battery Type: 4.5V Alkaline
Battery Life: N/A
Original Mac OS: 7.6.1
Supported Mac OS: 7.6.1-9.1
Details: Earlier and later versions of the Macintosh System/Finder and Mac OS are not supported.
Dimensions: 17.25 x 16.5 x 10 Avg.
Weight: 14.9 lbs (6.8 kg)
Original Price (US): US$7499
Est. Current Retail: US$11432
