Reparaturanleitungen

Bass

Bass

 en

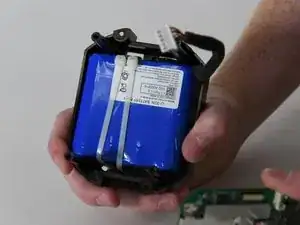

Battery

Battery

 en

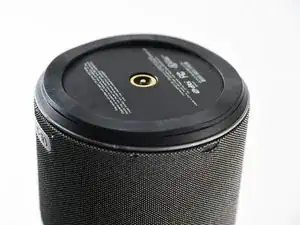

Bottom Panel

Bottom Panel

 en

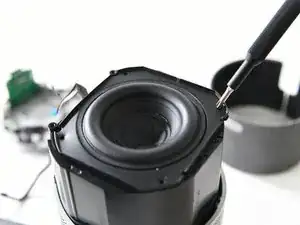

Speaker Ring

Speaker Ring

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

If you are having difficulties with the Vizio SmartCast 360, try referring to the troubleshooting page.

Background

The Vizio SmartCast Crave 360 is a wireless streaming device with 8 hours of power. With a simple setup, the speaker enables users to experience a powerful sound play. The speaker can connect to Chromecast, Google Chrome, and the Vizio Smartcast app. Additionally, the speaker is capable of playing sound simultaneously in multiple rooms. The Vizio SmartCast Crave 360 speaker was released in April 2016. Currently, the device is not available for purchase directly for Vizio but can still be found and sold by third parties online. The replacement of the Crave 360 is the Crave Pro released not that long after on August 20, 2016

Identification

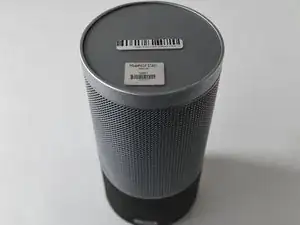

There are two models of the Vizio SmartCast 360, this model of the Vizio SmartCast 360 is labeled as SP50-D5. The model label can be found underneath the cylindrical speaker that connects the speaker to its charging dock. On the opposite side of the leather carrying strap, there is the brand name of Vizio.

Technical Specifications

Physical properties:

  • Dimensions: 10.04” x 4.92”
  • Packaging Dimensions: 7.4” x 12.55” x 8.15”
  • Soundbar Weight w/ Stand: 5 Lbs.
  • Packaging Weight: 8.81 Lbs

Display Features:

  • Display Type: LED Light
  • Demo Mode: TBD

Key Features:

  • Speaker Height: 10.04”
  • Speaker Diameter: 4.92”
  • Speaker Size:  4 x 1.5” Full Range
  • Subwoofer Size: 2 x 3.5” Subwoofer
  • Speaker Frequency: 50 Hz - 20 kHz
  • Sound Pressure Level: 92dB
  • Battery Type (Built-in): Li-ion (Lithium Ion)
  • Battery Charging Time: 3.5 Hours
  • Play Time (on battery): 8 Hours
  • Touch Pad Controls: Power Button Play, Pause: Tap top, Next: swipe top
  • Memory: 2 Gb DDR, 4 Gb NAND Flash

Audio Features:

  • Google Cast: Yes
  • DTS StudioSound: Yes
  • DTS TruSurround: No
  • DTS TruVolume: Yes
  • CircleCinema: No

Inputs:

  • Wi-Fi: 802.11
  • Ethernet: 1
  • Bluetooth 1

Multimedia Features:

  • USB Music: Yes

Energy Savings:

  • Power Frequency: 120V @ 60Hz
  • Power Supply Output: 36W

Additional Information
