Background and Identification
The Wacker Pump model PST2 400 (model number 0620435) is a single-phase electric submersible utility pump. It can handle up to 0.4-inch solids for dewatering of excavations, flooded basements, utility vaults, swimming pools, lakes, manholes, or wherever there is unwanted water. The pump includes a 2-inch motor and an oil-filled cavity that keeps the motor lubricated. Built-in thermal protection prevents damage to the motor due to impeller blockage.
The PST2 400 model includes silicon carbide-face double mechanical seals that run in the oil-filled motor cavity and allow seal lubrication, cooling, and overall motor protection. The pump includes a 20-foot electrical cord and has maximum discharge flow of 3180 gallons per hour. It uses a 0.5-horsepower motor to move water with some submerged solids. PST models feature shaft-mounted agitators which are designed to suspend solids when pumping water containing sand and debris.
The PST2 400 model includes aluminum housing and a threaded male outlet connection. It includes a yellow motor casing and a black float. A black and silver handle is positioned at the top of the pump’s body for carrying and positioning the machine. A black sticker with white font is included on the top of the pump’s yellow body that includes identification information like the machine’s model number.
Technical Specifications
Dimensions:
- Product Depth (in.): 7.3
- Product Height (in.): 10.1
- Product Width (in.): 13
Details:
- Amperage (amps): 5.4
- Cord Length (ft.): 20
- Discharge Flow @ 0 ft. (gallons/hour): 3780
- Discharge Flow @ 0 ft. (gallons/min): 63
- Discharge Flow @ 10 ft. (gallons/hour): 3360
- Discharge Flow @ 10 ft. (gallons/min): 56
- Head Pressure (ft.): 39
- Housing Material: Aluminum
- Maximum Discharge Flow (gallons/hour): 3180
- Maximum Horsepower (hp): 0.5
- Maximum Pressure (psi): 52.8
- Maximum Working Temperature (F): 111
- Minimum working temperature (F): 40

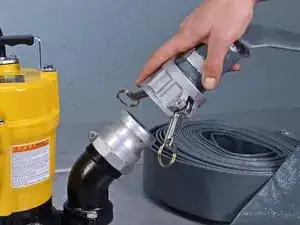

- Outlet Connection: Threaded male
- Power Type Required: AC
- Product Weight (lb.): 25lb
- Pump Switch Type: Switchless
- Vertical Lift (ft.): 39
- Voltage: 110v
