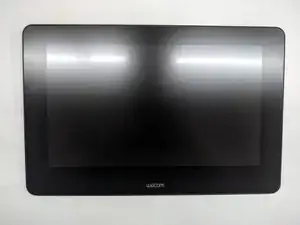

Wacom Cintiq Pro 13 Repair

• 13” Full HD (1920x1080) IPS matte screen with wide color gamut, 87% of Adobe RGB

• 3x USB type C port
• 1x Audio 3,5mm jack
• 1x USB 3.0 Card Reader

• Wacom Pro Pen 2
• Wacom Pro Pen Slim
• Wacom Pro Pen 3D

• Wacom 100W USB-C Power Adapter ADP-100PB
• Wacom 45W USB-C Power Adapter ACK4281401
• Any other USB-C Power adapter with 20V output (at least 45W) (Commonly sold as Laptop Power Adapters)

USB-C to USB-C connection

• In order to use it with USB-C to USB-C connection, host device (PC/Mac) must support USB-C DisplayPort Alternate Mode

Displayport/HDMI to USB-C

By using

• Wacom Link (Mini Displayport)
• Wacom Link Plus (Mini Displayport [up to 4K] and HDMI [up to QHD] )

Warning - most USB-C adapters allow only USB-C host (PC/Mac) to DisplayPort/HDMI monitor connection, not in reverse as required by Cintiq 13/16 and other USB-C monitors

• Can be used as drawing tablet with touch functionality by connecting USB 2.0 to USB-C cable and power adapter directly to any tablet USB-C port, and not connecting any display inputs

• “Power button and touch display controls” board is placed under front glass, requiring front glass removal or cutting plastic casing inside the tablet to remove and replace it
• Casing is glued using very strong adhesive, making it very hard to open the device without any damage
• Audio jack board is separated from the mainboard, making it soldering-free replacement part.
• Most firmware is stored in 25 SPI Flash EEPROM chips, and can be reprogrammed using cheap BIOS programmers, eg. CH341A
• Pen firmware is stored in Wacom Pen Controller chip, and there is no easy method to fix it if it has failed.
• Display used in this device is a 13” inch laptop-like display and uses 30-pin edisplayport connector
• LCD Display used in this tablet is a custom part, with pen digitizer as one of it's layers, just under backlight layers. Replacement will require same model of LCD Panel to be used.
• LCD Display is glued to the touch digitizer layer, which then, is glued, to the front glass.

• Realtek RTD2786B LCD scaler (handles both display and audio) (+ SPI Flash EEPROM firmware chip)
• 128MB DDR3 memory
• Kinetic STDP4028 LVDS to DisplayPort transmitter (+ SPI Flash EEPROM firmware chip)
• Three USB-C TI TPS65982 controllers (+ 3x SPI Flash EEPROM firmware chips)
• Genesys GL3224 USB 3.0 Card Reader controller (+ SPI Flash EEPROM firmware chip)
• Two USB 3.0 Hubs
• Wacom Pen Controller chip
• FTDI FT232 USB to UART controller

• Mainboard 4H.3GCA8.A00
• Wacom Pen digitizer boards (PWB-C800-C + PWB-C929-C)
• Audio jack board
• Power button board with touch controls
• BOE NV133FHM-A52 Display (May vary from unit to unit)
