Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Tools

Plastic Spudger or Prying Tool

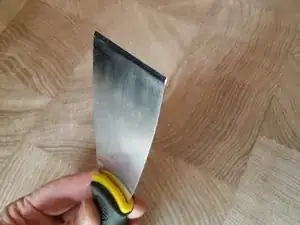

Metal Spudger or Prying Tool

Screwdriver with Phillips Head size 1 bit

Soldering Iron and Solder

Identification and Background

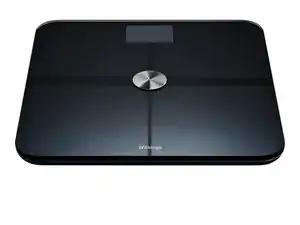

Released in February 2014, the Withings Smart Body Analyzer is an advanced scale that can measure and record your weight, fat composition, heart rate and environmental data. The scale is paired with a health mate application so this information can be accessed on any device that supports it. The scale can be easily distinguished from other products by its full, tempered glass panel and Withings branding.

Troubleshooting

If your scale is not functioning properly, check out our Troubleshooting Page.

Technical Specs

Device Compatibility

iOS compatibility (iOS 8 and higher)

iPod Touch (5th generation or higher)

Android compatibility (2.3.3 and higher)

Requires internet access (mobile data or wifi)

Wireless Sync

WiFi 802.11 b/g/n

WEP/WPA/WPA2-personal networks

Bluetooth connectivity (Bluetooth Smart Ready)

Features

Weight - Four sensors, Patent-pending body position detector, highly accurate weighing

Body Composition - Bioelectric impedance analysis, Athlete and non-athlete mode, Unit: body fat %, total body water %, muscle mass kg or lb, bone mass kg or lb

Automatic user recognition - Up to 8 different users

Sensors - Weighing range 5-->180 kg (9-->396 lb), 100 g (0.2 lb graduation), Units kg, lb, st lb

Scale - Large, high-strenth tempered glass platform, Ultra slim design, Dimensions: 12.8x12.8x0.9 in

Display - Large, Easy-on-the-eye lighting, 128x64 pixels

Storage and Memory - Free and Unlimited online storage of weight readings, Stores up to 116 readings if scale cannot sync wirelessly

Power Supply- 4x 1.5V Alkaline Cells (AAA), Average battery lifetime of 18 months

In the Box - Scale, 4x1.5V alkaline cells, Installation guide, Free health mate app, free Withings account

Additional Information

Withings Smart Body Analyzer Help Page

Unboxing and Setup

Unboxing and Setup Video Review

User Manual
