Background and Identification

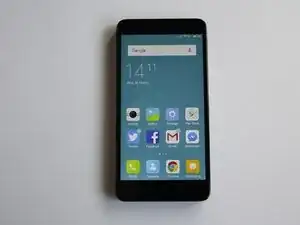

The Xiaomi Redmi Note 2 is an Android smartphone sold by Xiaomi, a Chinese multinational electronics company and released in August 2015. The Redmi Note 2 was sold in two variants, the standard and the Prime. The Redmi Note 2 can be identified by model number 2015051.
Both the Redmi Note 2 and the Note 2 Prime include a 5.5-inch display with a resolution of 1080 by 1920 pixels. The Redmi Note 2 includes an Octa-core 2.0 GHz CPU while the Redmi Note 2 Prime includes an Octa-core 2.2 GHz CPU. The Note 2 contains 16 GB of internal storage and 2 GB of RAM while the Note 2 Prime includes 32 GB of internal storage and 2 GB of RAM. Only the model sold in China includes a dedicated microSDXC slot for expandable internal storage.
All Redmi Note 2 models include a 13-megapixel main camera and a 5-megapixel selfie camera. They also include a 3060 mAh removable battery, meaning the battery is not attached to the inside of the phone using any kind of permanent adhesive, making repair and replacement easier than for non-removable batteries. They also include a MicroUSB 2.0 slot and a USB On-The-Go slot.
The Redmi Note 2 was released in white, blue, yellow, pink, and mint green body colors.
Technical Specifications
Models: 2015051
Release date: August 2015
Body:
- Dimensions and Weight: 152 x 76 x 8.3 mm (5.98 x 2.99 x 0.33 in), 160 g (5.64 oz)
- Build: Glass front, plastic back, plastic frame
- SIM: Dual SIM (Micro-SIM, dual stand-by)
Display:
- Type: IPS LCD
- Size: 5.5 inches, 82.6 cm2 (~71.5% screen-to-body ratio)
- Resolution: 1080 x 1920 pixels, 16:9 ratio (~403 ppi density)
Platform:
- OS: Android 5.0 (Lollipop), MIUI 7
- Chipset: Mediatek MT6795 Helio X10 (28 nm)
- CPU:
- Octa-core 2.0 GHz Cortex-A53 - Redmi Note 2
- Octa-core 2.2 GHz Cortex-A53 - Redmi Note 2 Prime
- GPU: PowerVR G6200
Memory:
- Card slot: microSDXC (dedicated slot) - Chinese version only
- Internal: 16GB 2GB RAM (Standard), 32GB 2GB RAM (Prime)
- eMMC 5.0
Main Camera:
- Single: 13 MP, f/2.2, PDAF
- Features: LED flash, HDR, panorama
- Video:1080p@30fps
Selfie Camera:
- Single: 5 MP, f/2.0
- Video: 720p
Sound:
- Loudspeaker: Yes
- 3.5 mm jack: Yes
Communications:
- WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
- Bluetooth: 4.0, A2DP, LE
- GPS: Yes, with A-GPS, GLONASS, BDS
- NFC: No
- Infrared Port: Yes
- Radio: Stereo FM radio
- USB: MicroUSB 2.0, USB On-The-Go
Features:
- Sensors: Accelerometer, gyro, proximity, compass
Battery:
- Type: Li-Po 3060 mAh, removable
- Charging: Charging 10W
- Stand-by: Up to 144 h (3G)
- Talk Time: Up to 11 h 30 min (3G)
- Music Play: Up to 46 h
Miscellaneous:
- Colors: White, blue, yellow, pink, mint green
- SAR: 0.34 W/kg (head) 0.45 W/kg (body)
