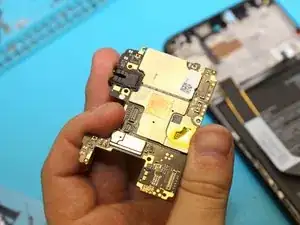

The motherboard
Background and Identification
The Xiaomi Redmi Note 7 Pro phone was announced in February 2019 and released in March 2019 as part of the Redmi Note 7 Series. The series also includes the original Note 7 and the note 7S. The Note 7 Pro differs from the original Note 7 in that it has a powerful Snapdragon 675 processor and a better camera.
This phone is exclusively sold in China and India. Unlike the other two phones in the Note 7 series, which both had ‘global’ versions in addition to the ones in China and India, the Note 7 Pro cannot use the LTE frequencies that are transmitted by cell phone carriers in the United States. This means that it can’t be bought in China or India and then imported to the United States.
Technical Specifications
- Dimensions: 159.2 x 75.2 x 8.1 mm (6.27 x 2.96 x 0.32 in)
- Weight: 186 g (6.56 oz)
- Build: Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), plastic frame
- Display Type: IPS LCD capacitive touchscreen, 16M colors
- Resolution: 1080 x 2340 pixels, 19.5:9 ratio (~409 ppi density)
- OS: Android 9.0 (Pie), upgradable to Android 10, MIUI 11
- CPU: Octa-core (2x2.0 GHz Kryo 460 Gold & 6x1.7 GHz Kryo 460 Silver)
- SIM: Hybrid Dual SIM (Nano-SIM, dual stand-by)
- Internal Memory: 64GB and 4GB RAM, or 128GB, and 6GB RAM
- Main Camera: Dual-LED flash, HDR, panorama, 4K video@30fps, 1080p@30/60/120fps
- Selfie Camera: Single, 13 MP, HDR, 1080p video @30fps
- USB: 2.0, Type-C 1.0 reversible connector
- Sensors: Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass
- Battery: Non-removable Li-Po 4000 mAh battery
- Colors: Nebula Red, Neptune Blue, Space Black, Astro White
- Models: M1901F7S
